With Remote Audio Controls

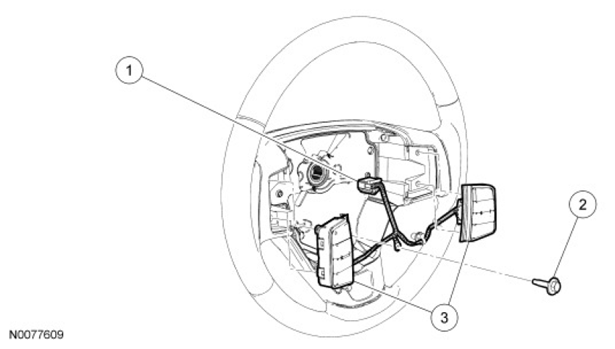

Fig 1: Identifying Cruise Control Switch Components (With Remote Audio Controls)
Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART
Item
Part Number
Description
1
-
Cruise control switches electrical connector (part of 9C888)
2
-
Cruise control switches ground screw
3
9C888
Cruise control switches
