HVAC Housing

WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

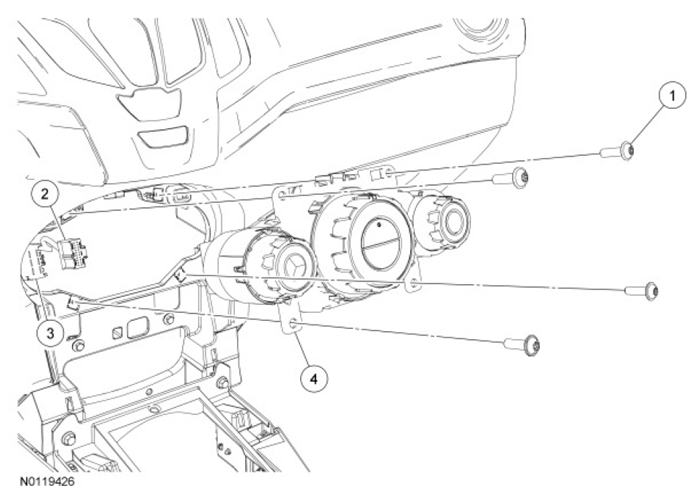

Fig 1: Exploded View Of HVAC Housing
G06937313Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628 HVAC module screw (4 required)
2 - HVAC module electrical connector (part of 14401)
3 - HVAC module blower motor switch electrical connector (part of 14401)
4 18549 HVAC module (vehicles not equipped with A/C)
4 19980 HVAC module (vehicles equipped with A/C)
