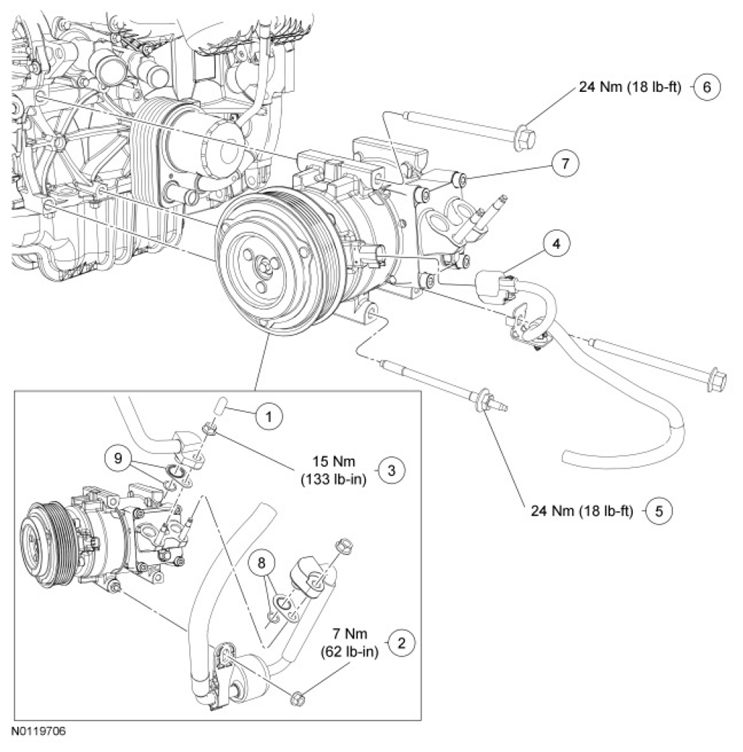

A/C Compressor
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 386802-S | Rubber cap |
| 2 | W520111 | Compressor-to-condenser discharge line bracket nut |
| 3 | W520413 | A/C compressor fitting nut (2 required) |
| 4 | - | A/C compressor electrical connector (part of 12A522) |
| 5 | W714403 | A/C compressor stud-bolt |
| 6 | W701331 | A/C compressor bolt (2 required) |
| 7 | 19703 | A/C compressor |
| 8 | 19B596 | O-ring seal and gasket seal kit |
| 9 | 19B596 | O-ring seal and gasket seal kit |
