Intake Manifold
Install the
intake manifold
and the 12 bolts.

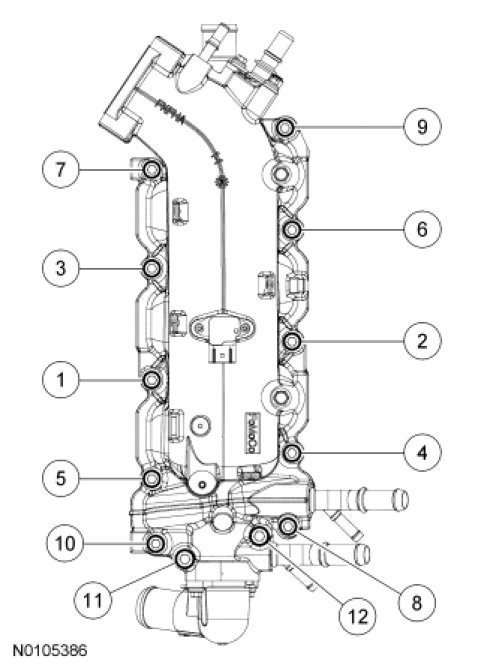

Tighten in the sequence shown to
10 Nm (89 lb-in).
