LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
2011
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>

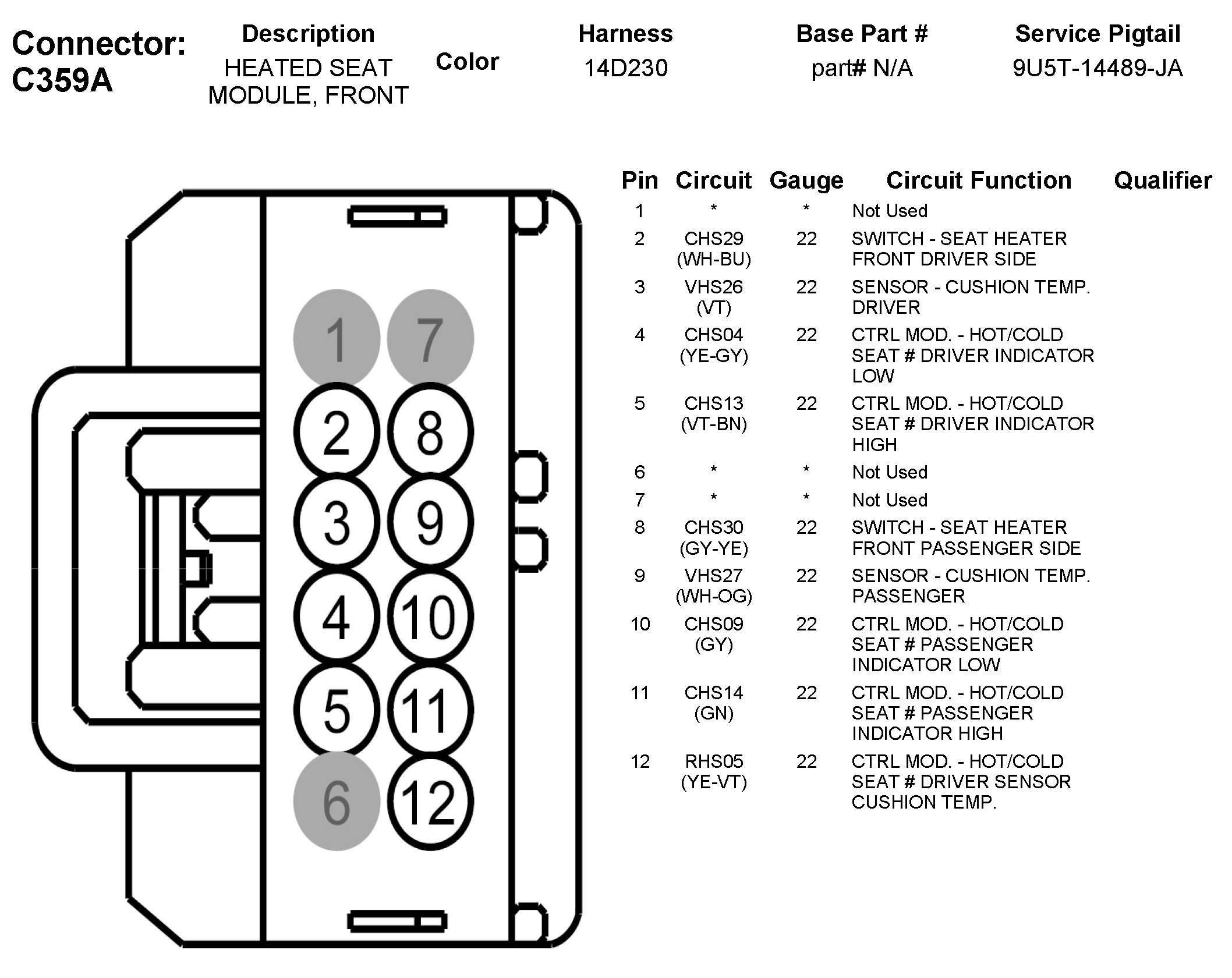

C359A Heated Seat Module, Front
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C359A Heated Seat Module, Front
