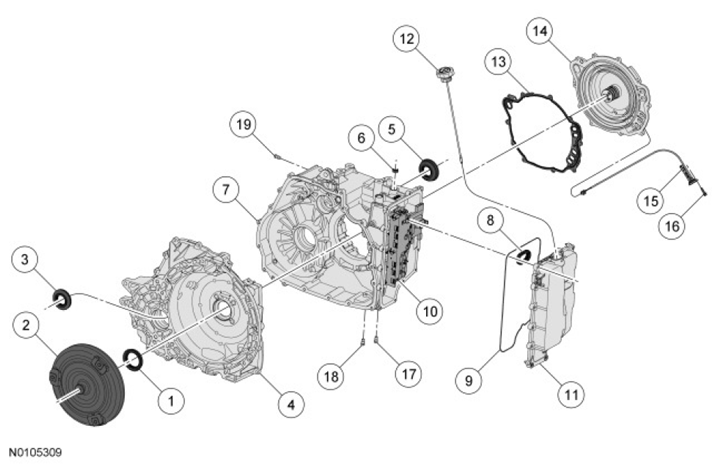

External Sealing Exploded View
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7F401 | Torque converter hub seal |
| 2 | 7902 | Torque converter |
| 3 | 1177 | RH halfshaft seal (Front Wheel Drive (FWD) only) |
| 4 | 7005 | Torque converter housing |
| 5 | 1177 | LH halfshaft seal |
| 6 | 7F337 | Manual lever shaft seal |
| 7 | 7005 | Transaxle case |
| 8 | 7B329 | Main control cover-to-solenoid body seal |
| 9 | 7F396 | Main control cover gasket |
| 10 | 7Z369 | Solenoid body assembly |
| 11 | 7G004 | Main control cover |
| 12 | 7A020 | Transmission fluid level indicator |
| 13 | 7223 | Transaxle case-to-transaxle cover gasket |
| 14 | 7222 | Transaxle cover |
| 15 | 7M101 | Turbine Shaft Speed (TSS) sensor |
| 16 | 7J356 | TSS bolt |
| 17 | 7A010 | Line pressure tap plug |
| 18 | 7A010 | Transmission fluid drain plug |
| 19 | 7A010 | Lubrication circuit tap plug |
