Multifunction Switch Connectors - C202

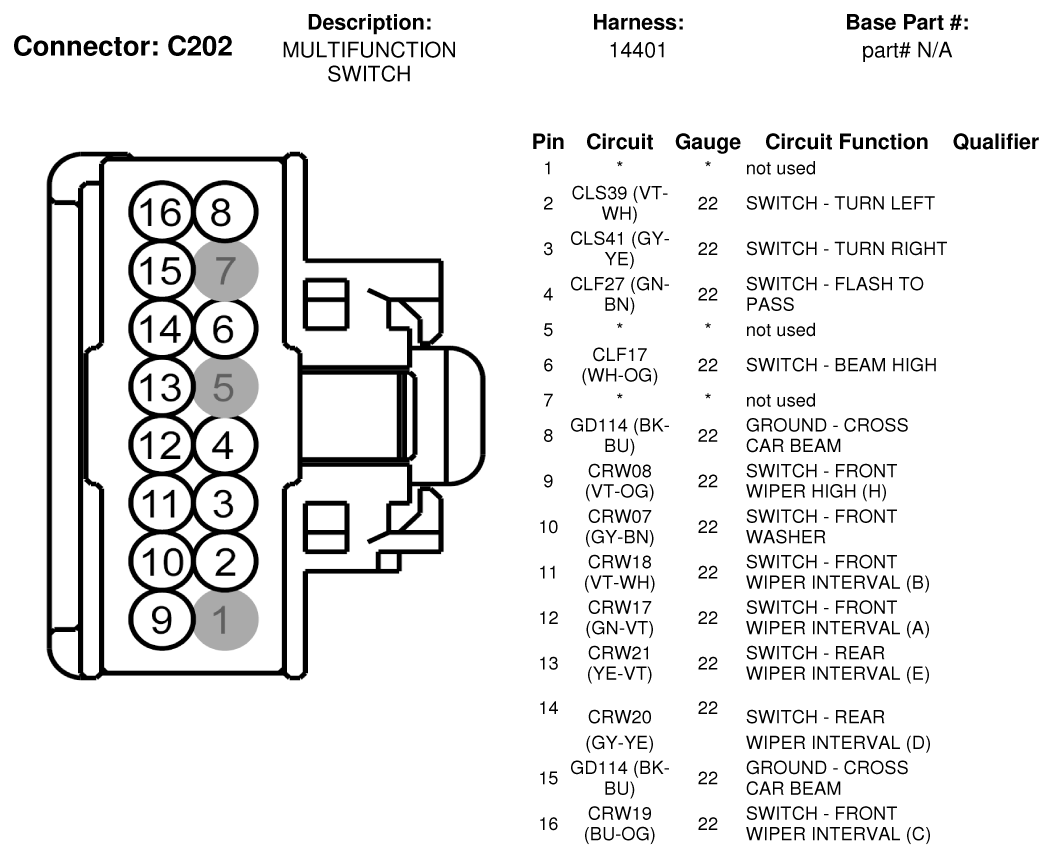

Fig 1: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
