Production Occupant Classification System (OCS) System

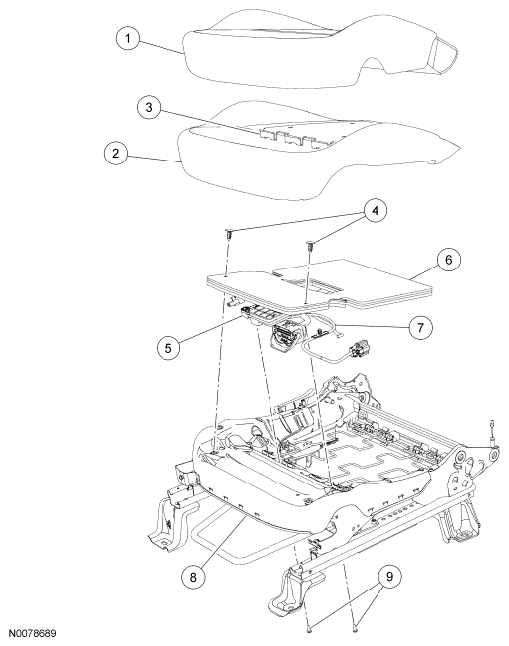

Fig 1: Exploded View Of Production Occupant Classification System

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5462900	Seat cushion cover
2	603B16 (service kit)	Seat cushion foam pad
3	14D698	Heater mat and wiring harness (if equipped)
4	-	Pin-type retainers (2 required)
5	-	Occupant Classification System Module (OCSM)
6	-	Occupant Classification System (OCS) bladder
7	-	Wiring harness
8	9661704	Seat track assembly
9	-	OCSM screws (2 required)
