Air Filter Element
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Air Filter Element

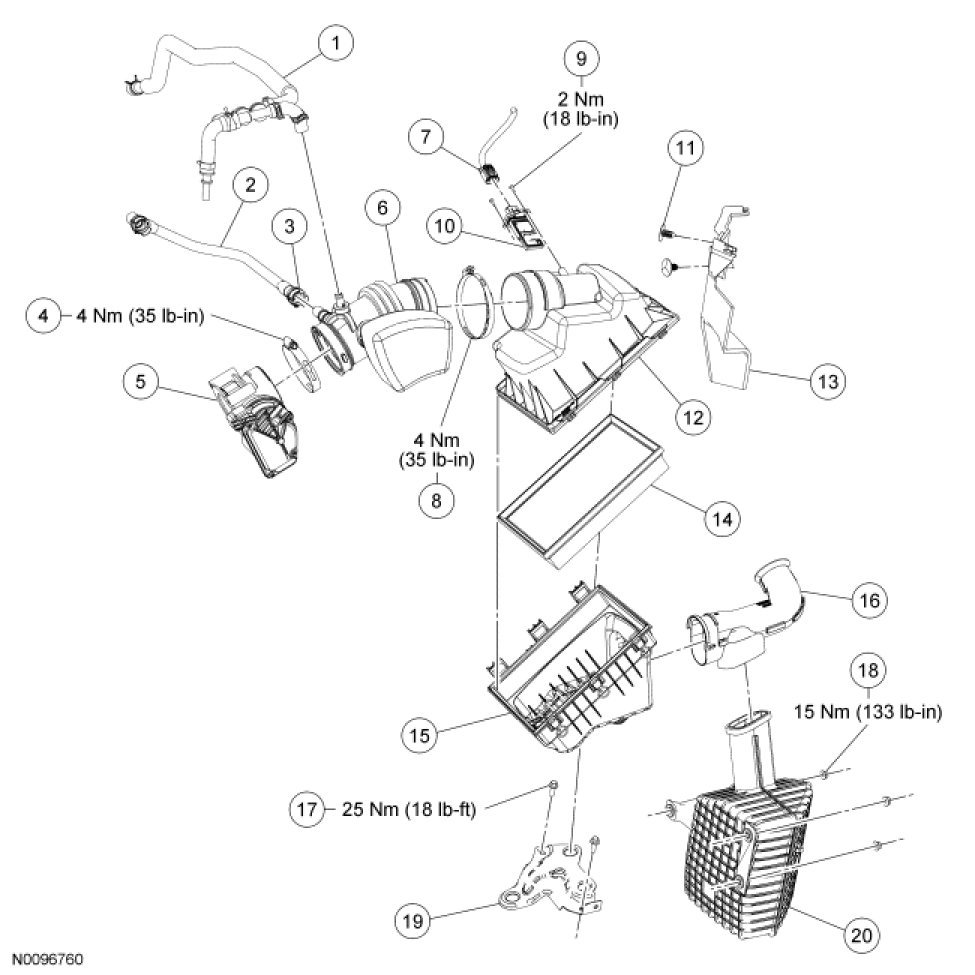

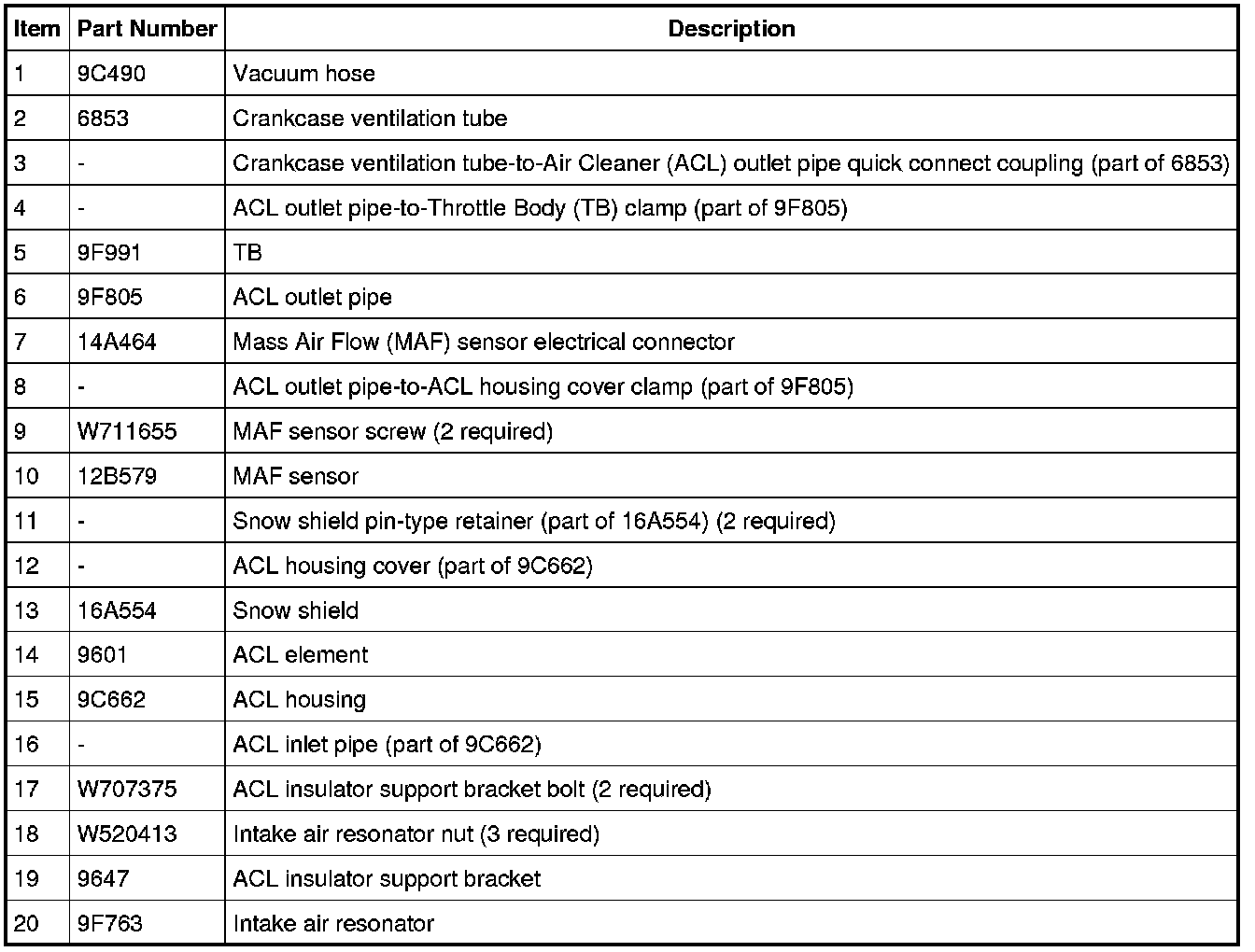

Intake Air System Components - Exploded View
