Interior Lighting Control Module (ILCM)

Interior Lighting Control Module (ILCM)









Removal and Installation

1. Remove the passenger air bag module. For additional information, refer to Supplemental Restraint System Driver Air Bag Module.

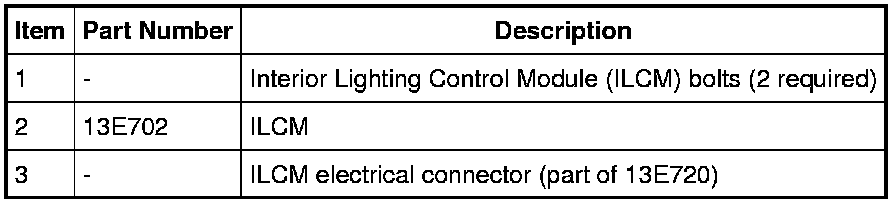

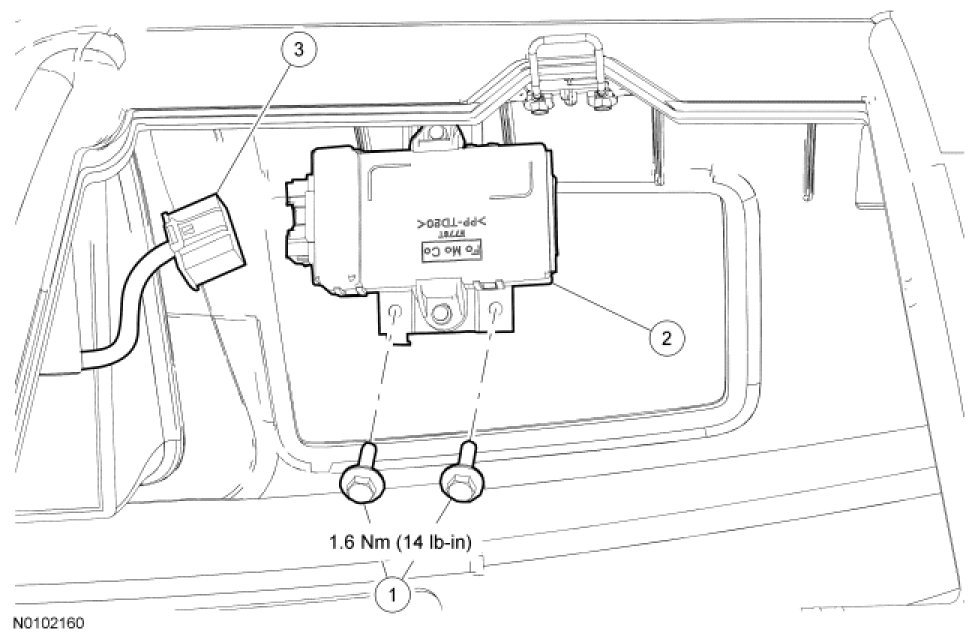

2. Remove the 2 bolts and the Interior Lighting Control Module (ILCM).
- To install, tighten to 1.6 Nm (14 lb-in).

3. To install, reverse the removal procedure.
