PINPOINT TEST A: No Start: Introduction

WARNING: STOP THIS TEST AT THE FIRST SIGN OF A FUEL LEAK AND REPAIR AS REQUIRED.
NO OPEN FLAME. NO SMOKING DURING FUEL DELIVERY CHECKS.
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

This pinpoint test is intended to diagnose the following:

spark (as related to electronic engine control)
powertrain control module (PCM) (12A650)

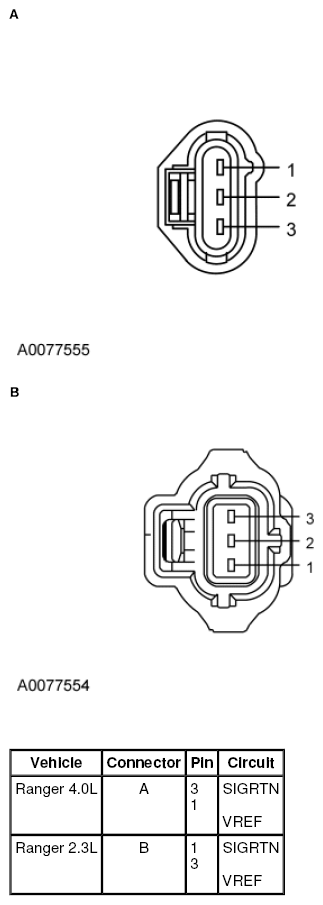

Fig 1: Identifying Throttle Position (TP) Sensor Connector
Courtesy of FORD MOTOR CO.

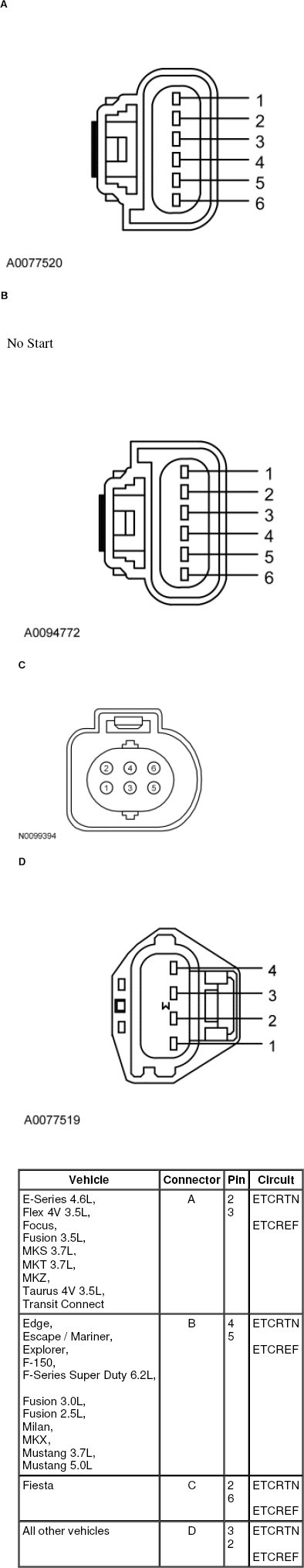

Fig 2: Identifying Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector

Courtesy of FORD MOTOR CO.

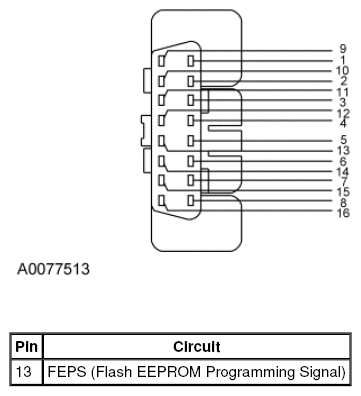

Fig 3: Identifying Data Link Connector (DLC)

Courtesy of FORD MOTOR CO.
