Accelerator Pedal: Notes
WARNING: This page is about a different car, the 2009 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
4.0L shown in illustration, 2.3L similar.

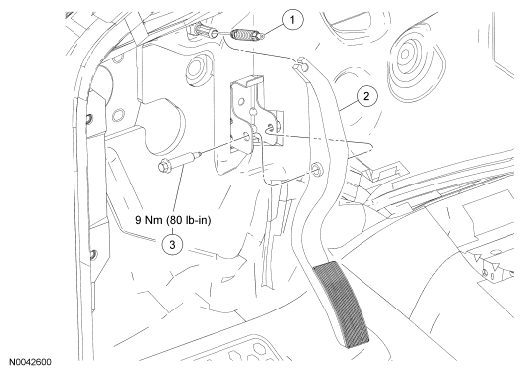

Fig 1: Accelerator Pedal, Accelerator Cable And Accelerator Pedal Pivot Bolt With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 9A758 | Accelerator cable |
| 2 | 9275 | Accelerator pedal |
| 3 | N804397 | Accelerator pedal pivot bolt |
