Automatic Climate Control System

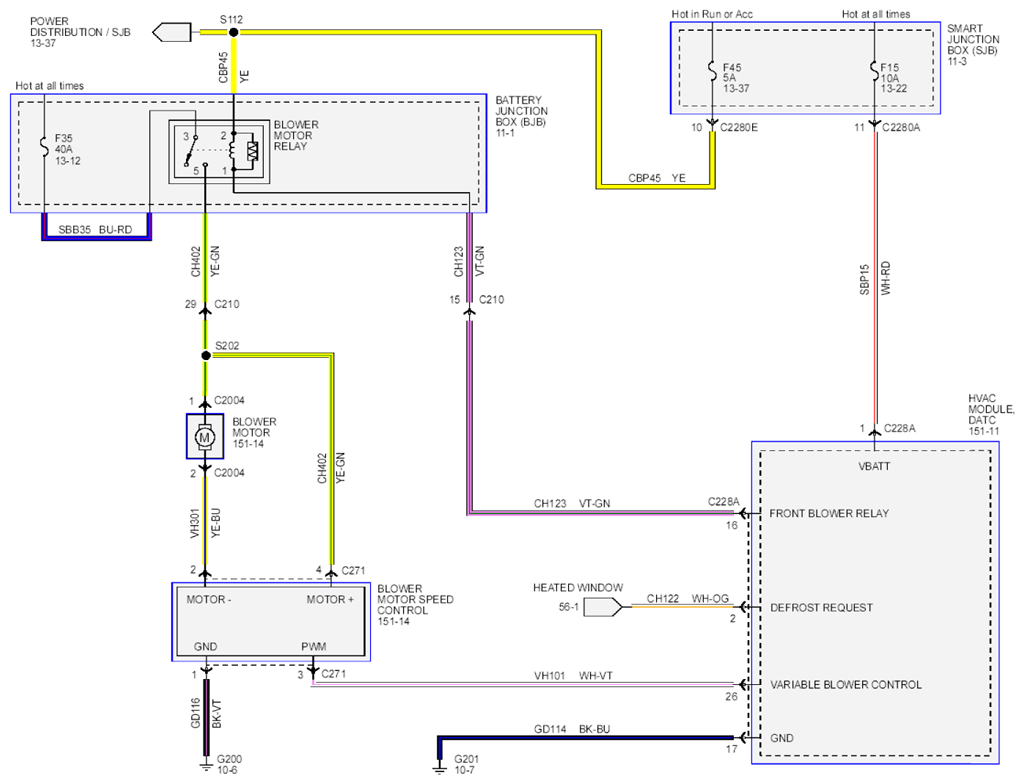

Fig 1: Automatic Climate Control System Circuit Diagram (1 Of 5)
G07882229Courtesy of FORD MOTOR CO.

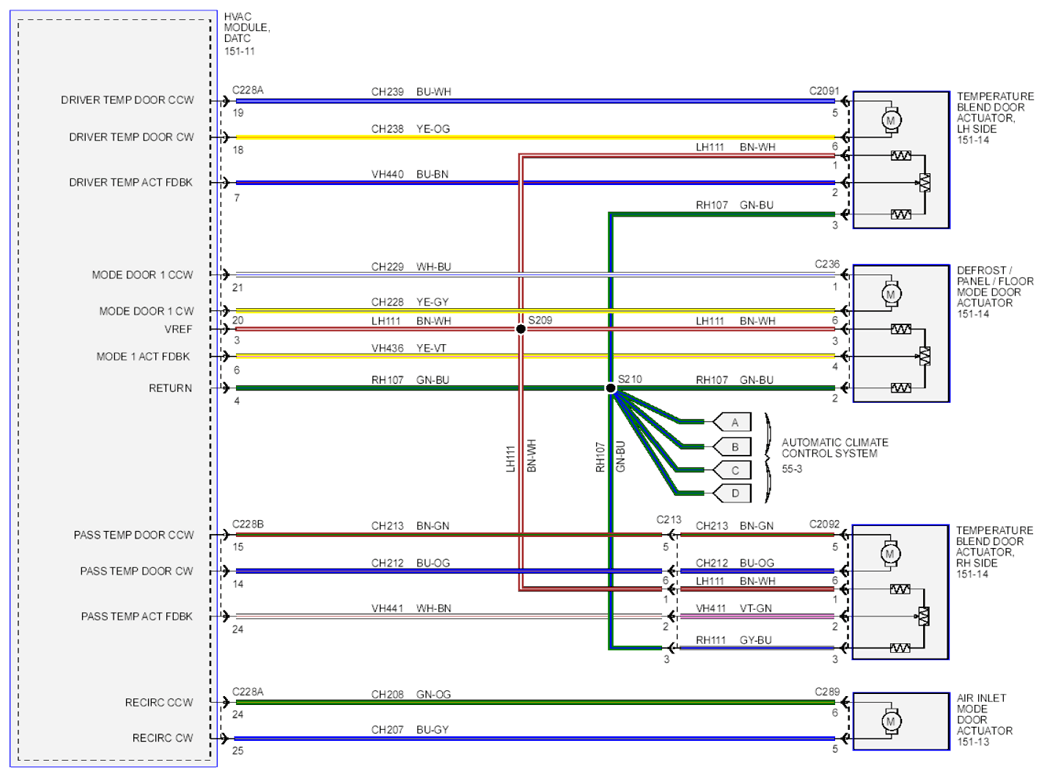

Fig 2: Automatic Climate Control System Circuit Diagram (2 Of 5)
G07882230Courtesy of FORD MOTOR CO.

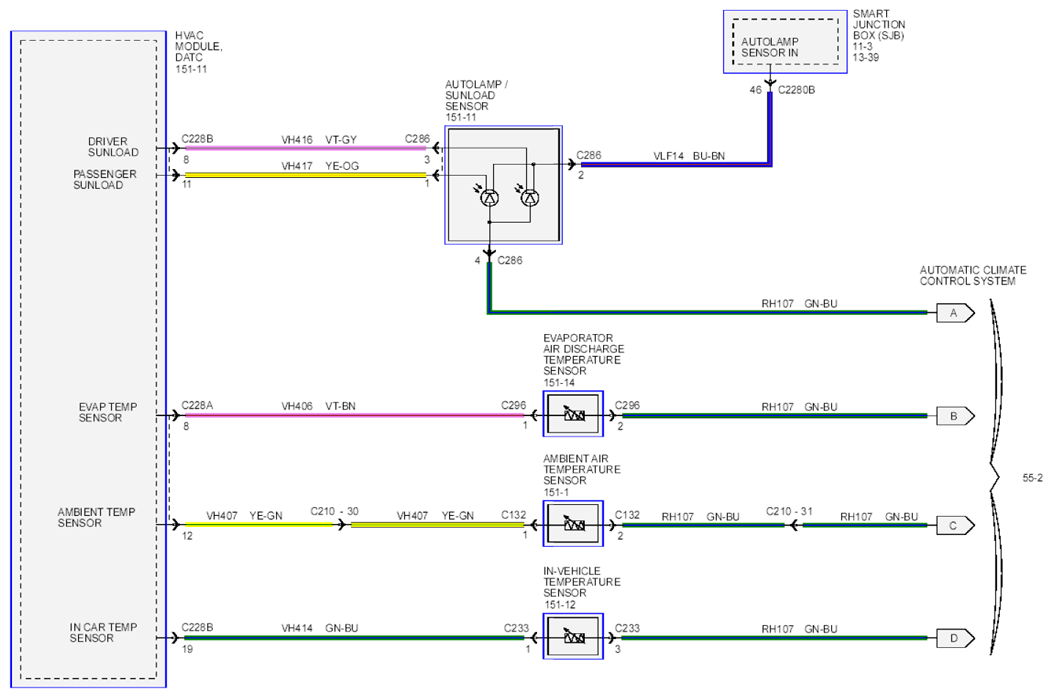

Fig 3: Automatic Climate Control System Circuit Diagram (3 Of 5)
G07882231Courtesy of FORD MOTOR CO.

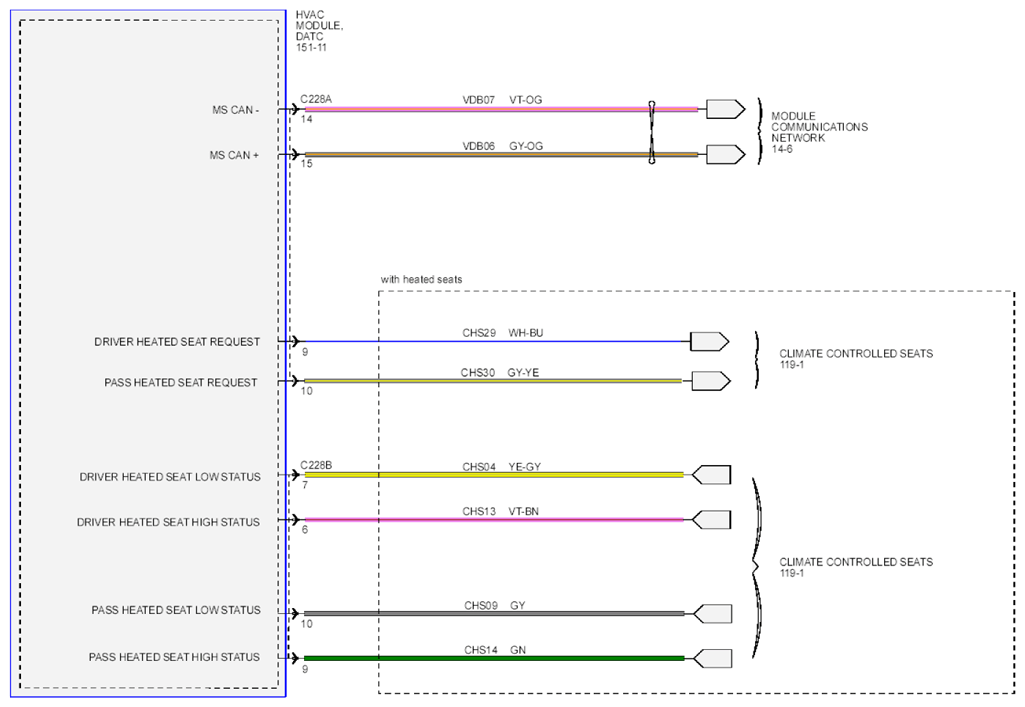

Fig 4: Automatic Climate Control System Circuit Diagram (4 Of 5)
G07882232Courtesy of FORD MOTOR CO.

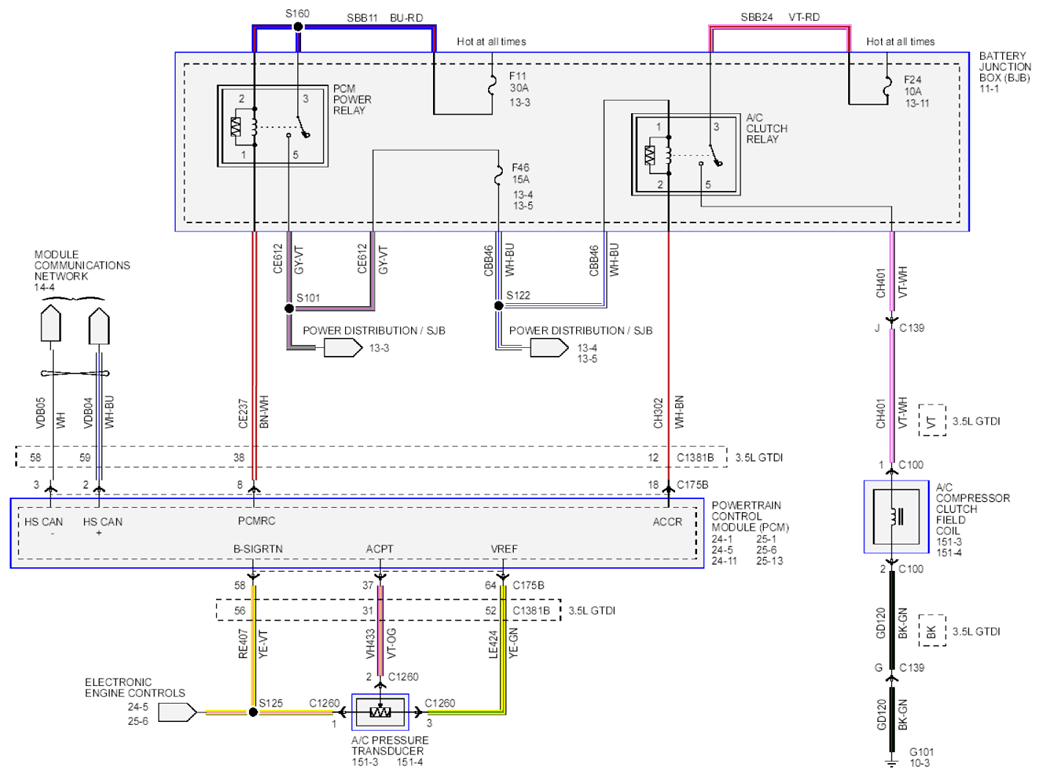

Fig 5: Automatic Climate Control System Circuit Diagram (5 Of 5)
G07882233Courtesy of FORD MOTOR CO.
