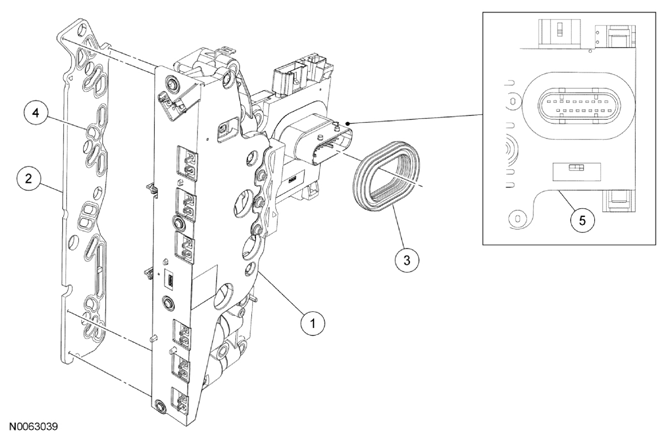

Solenoid Body Assembly: Notes
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
7Z369 |
Solenoid body |
| 2 |
7H200 |
Solenoid body filter |
| 3 |
7B329 |
Seal - solenoid body electrical connector |
| 4 |
- |
Solenoid body filter screen |
| 5 |
- |
Leadframe area |
