Home >> Ford >> 2011 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C435-C1041 >> C520
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

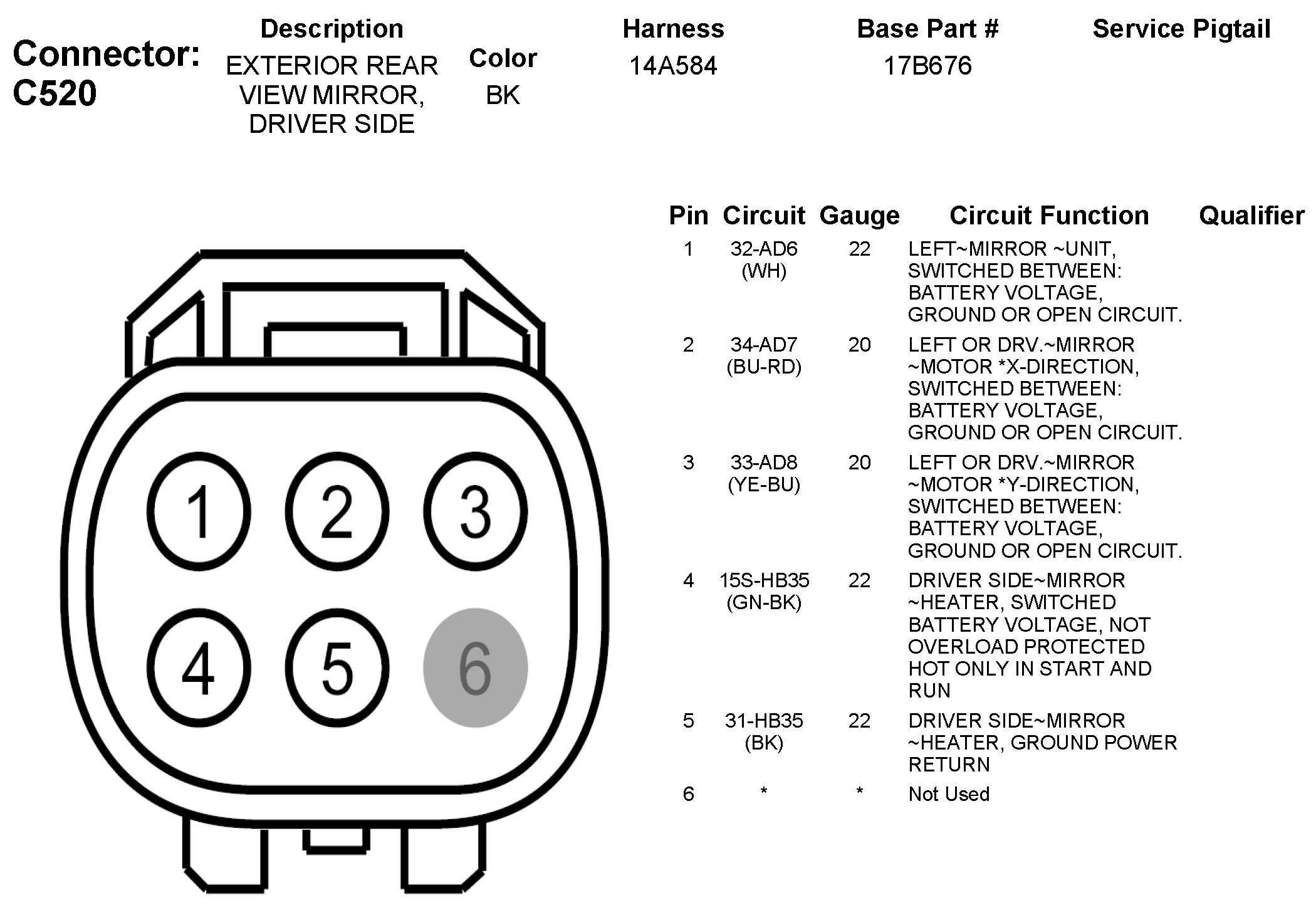

C520
