Door Switch: Service and Repair

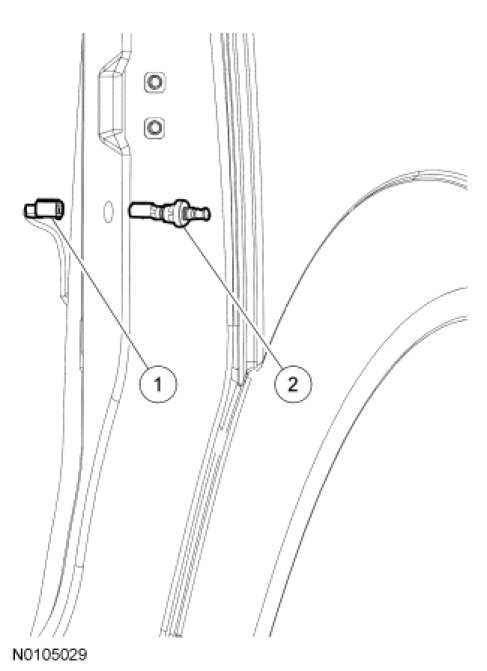

Door Ajar Switch - Sliding









1. Remove the C-pillar trim panel. For additional information, refer to Interior Trim - Exploded View in Interior Trim and Ornamentation Interior Trim - Exploded View.

2. Disconnect the sliding door ajar switch electrical connector.

3. Release the tabs and remove the sliding door ajar switch.

4. To install, reverse the removal procedure.
