Marker Lamp: Service and Repair

Side Marker Lamp

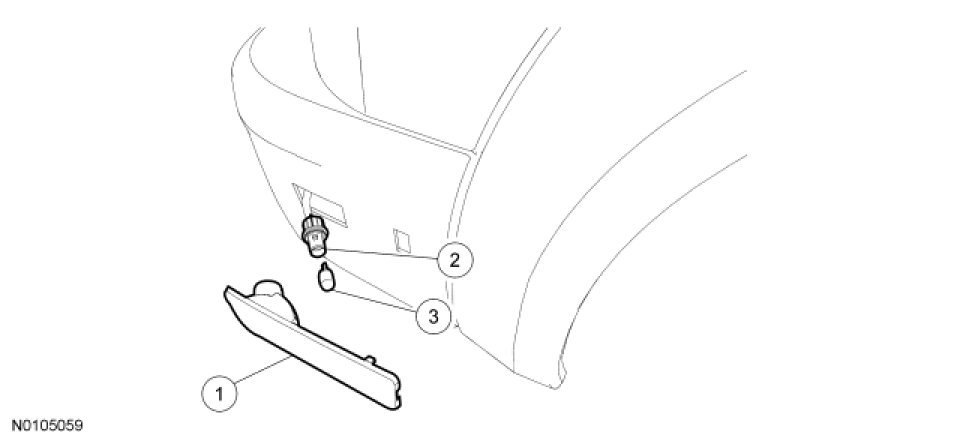

NOTE: Rear side marker lamp shown, front similar.











Removal and Installation

1. Using a thin flat-bladed tool, separate the lamp from the bumper cover.





2. Separate the bulb holder from the side marker lamp.
- If necessary, remove the bulb from the bulb holder.

3. To install, reverse the removal procedure.
