Service Kit Occupant Classification System (OCS) System

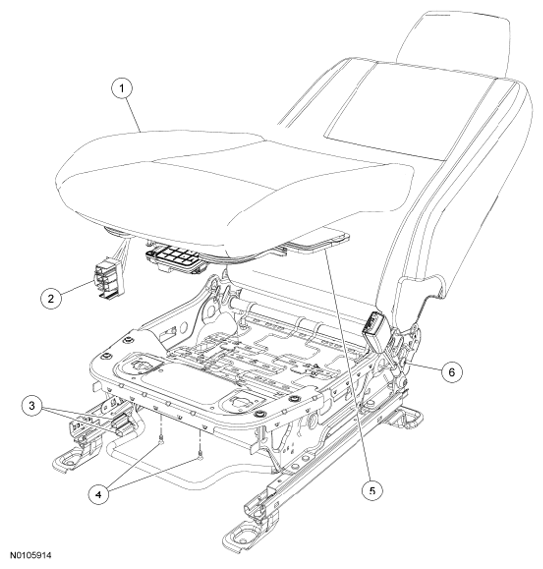

Fig 1: Identifying Service Kit Occupant Classification System Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Cushion foam pad (part of 632A22)
2	-	Seat electrical bulkhead connector (part of 632A22)
3	-	Safety belt buckle and side air bag module electrical connectors
4	W705247	Occupant Classification System Module (OCSM) screws (2 required)
5	-	Occupant Classification System (OCS) bladder, OCSM  (part of 632A22)
6	61704	Seat track assembly
