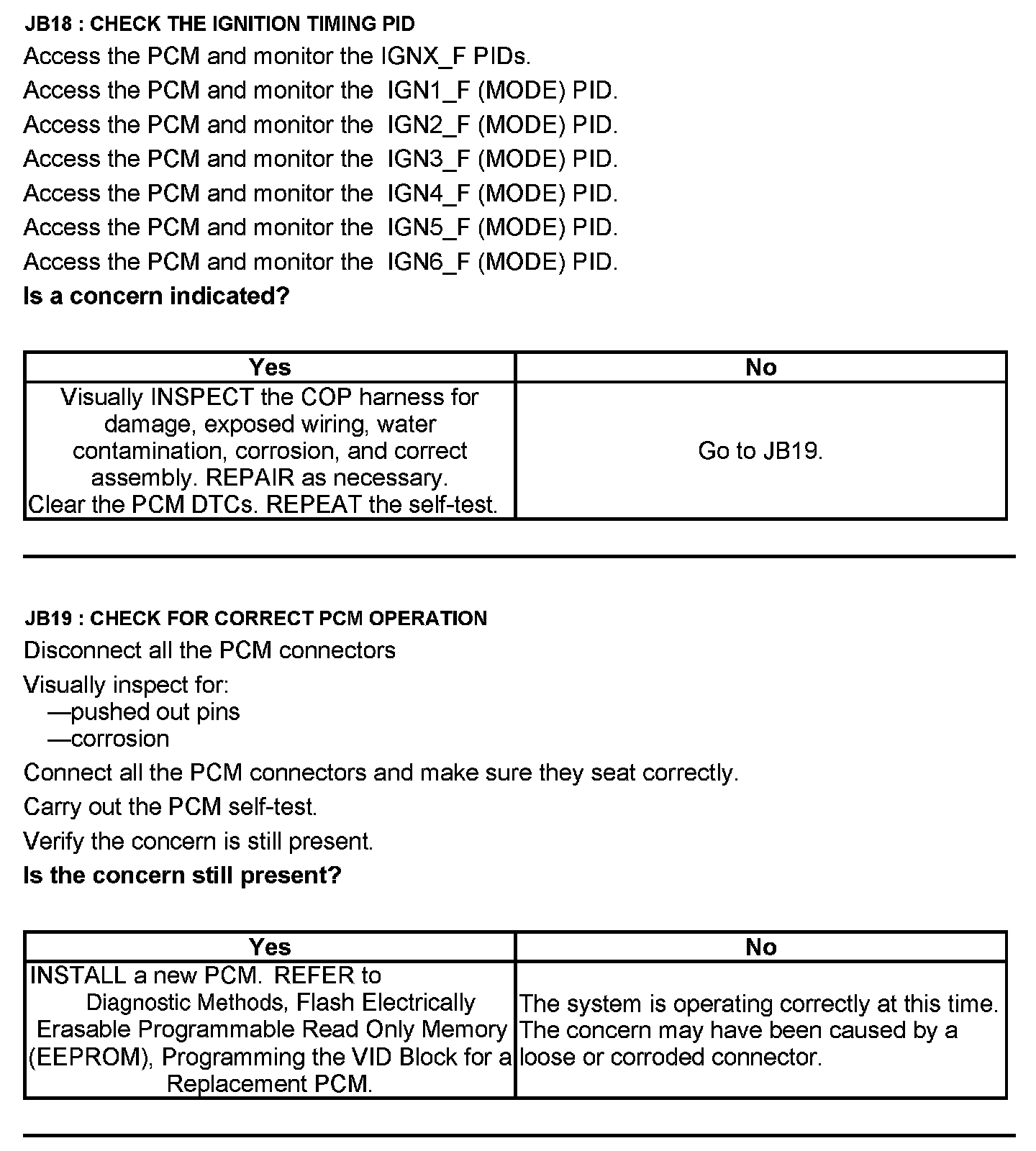

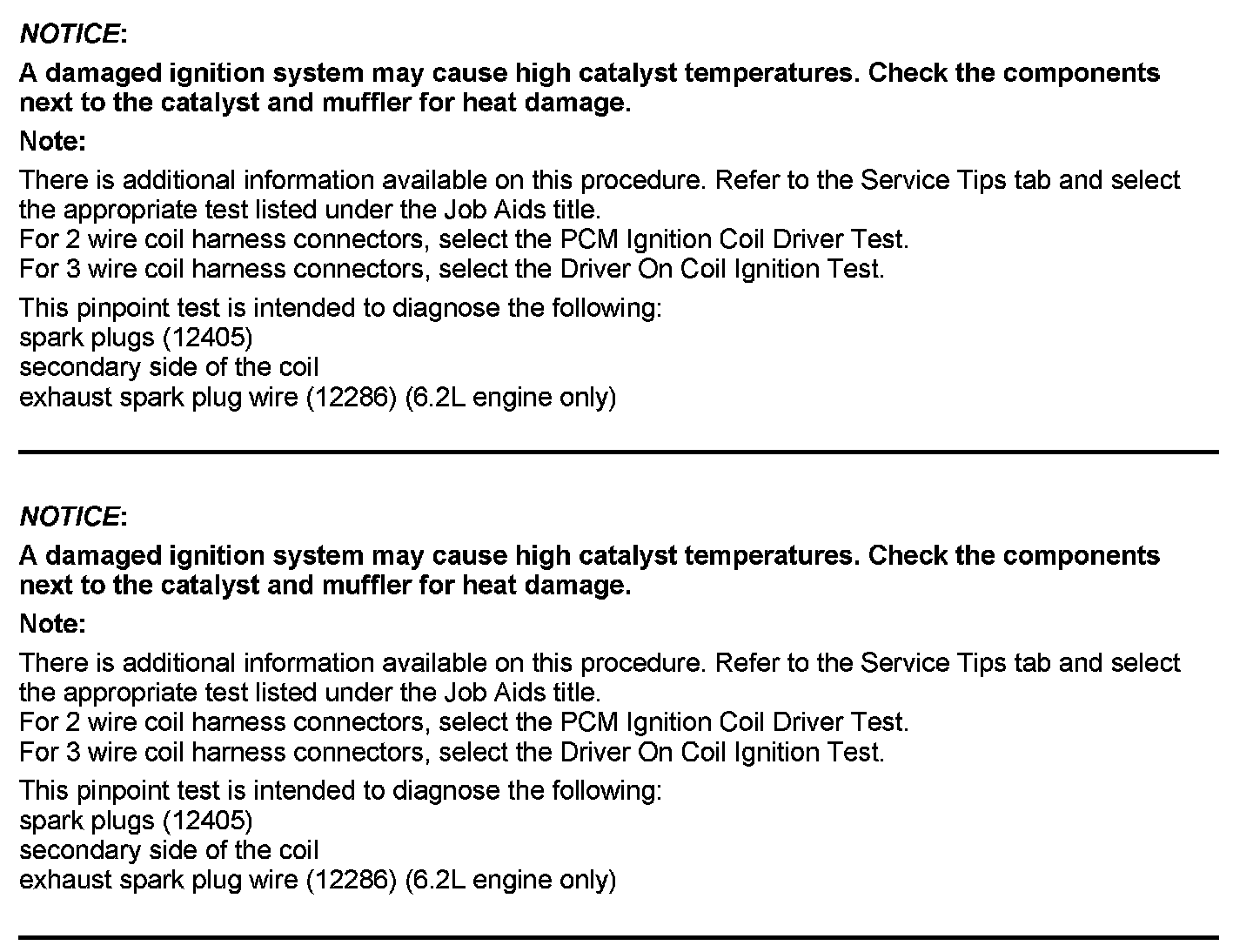

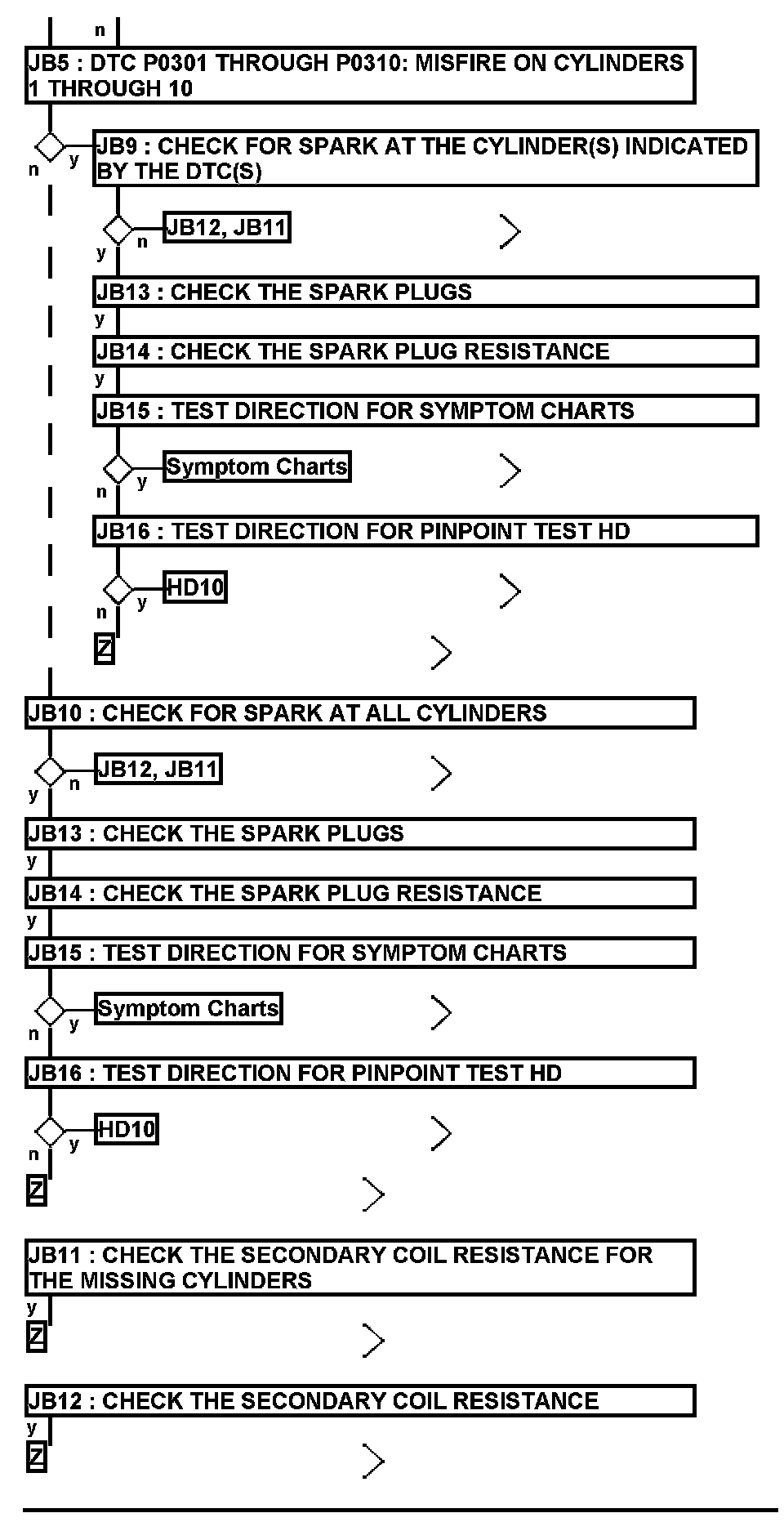

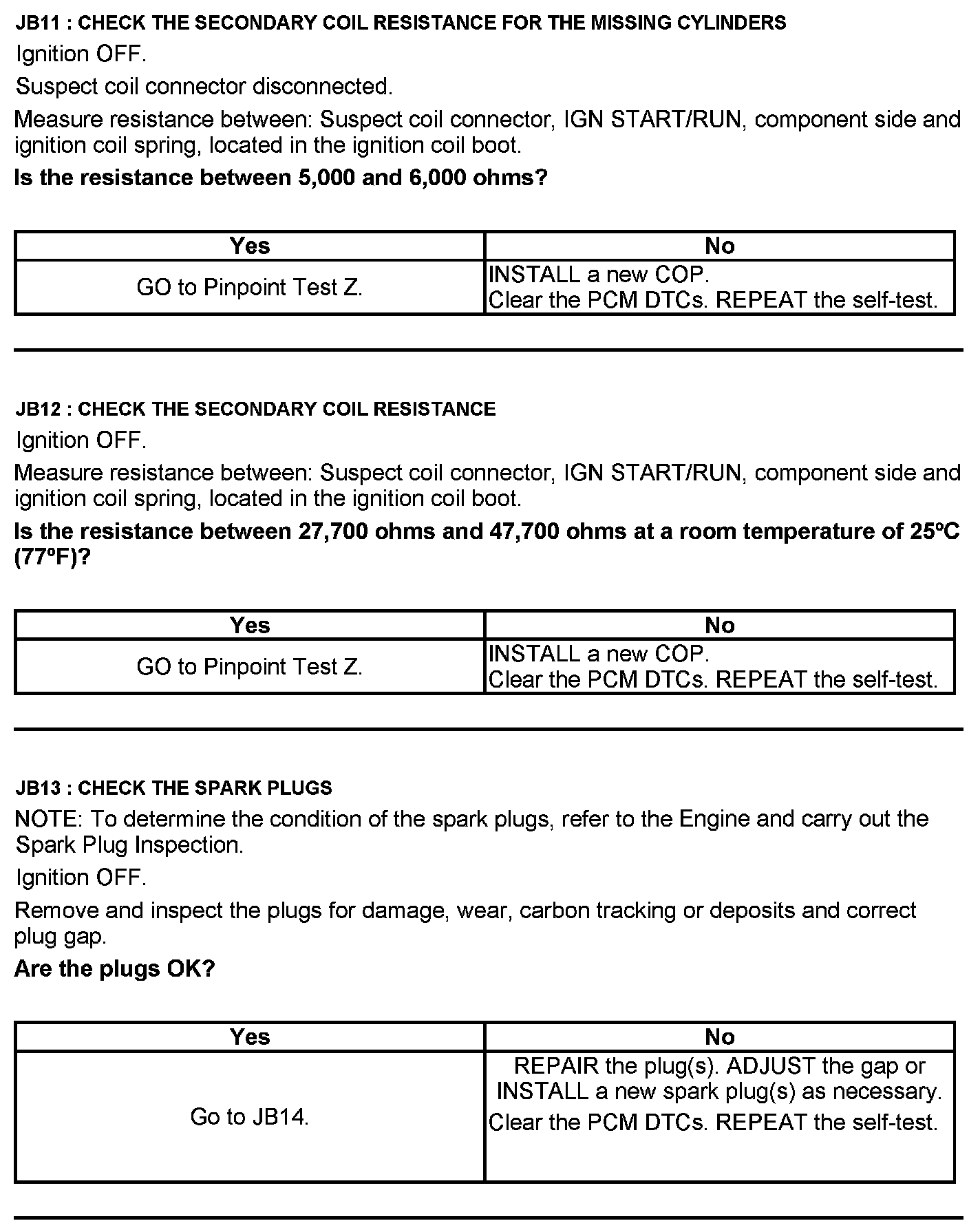

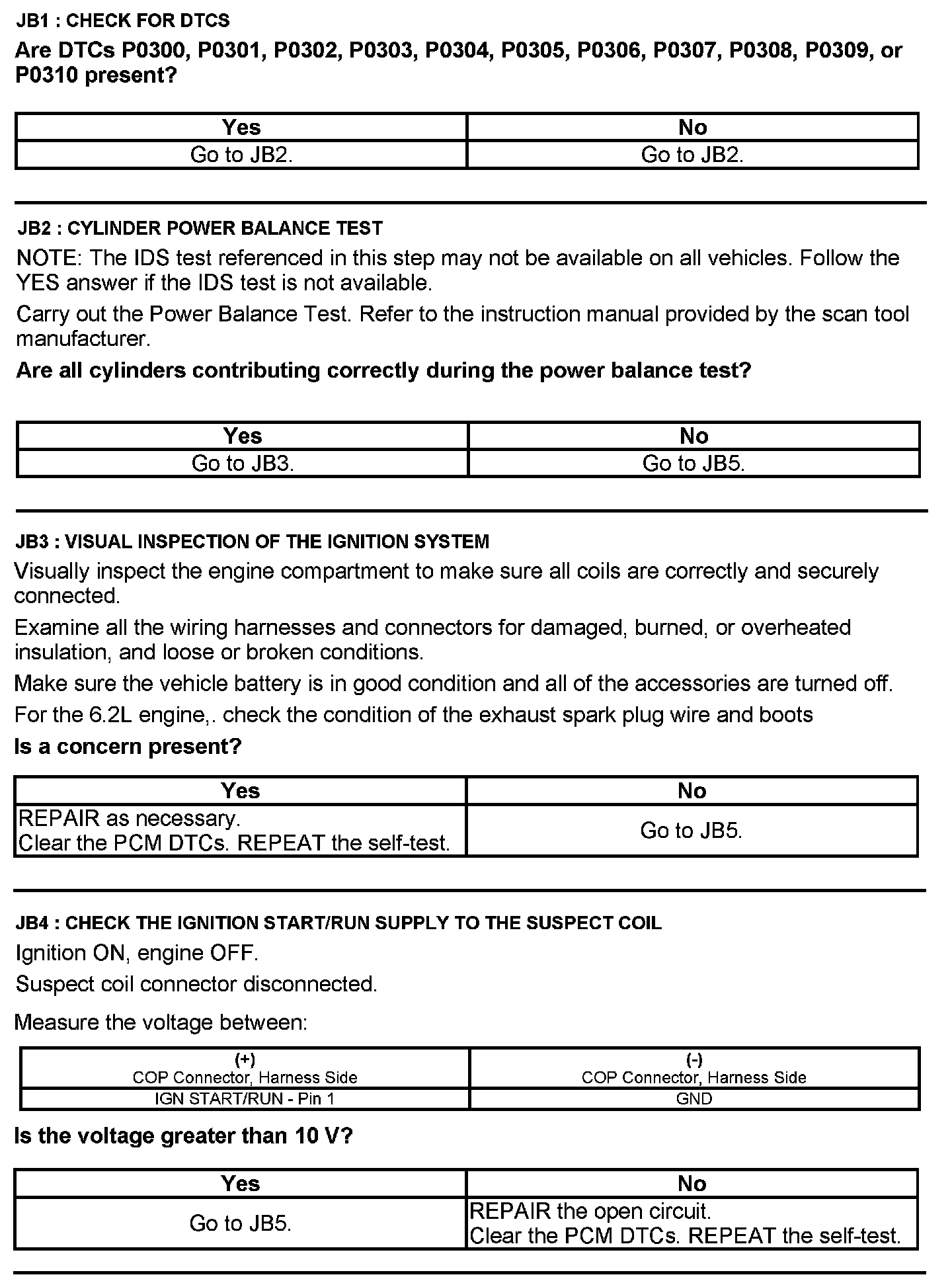

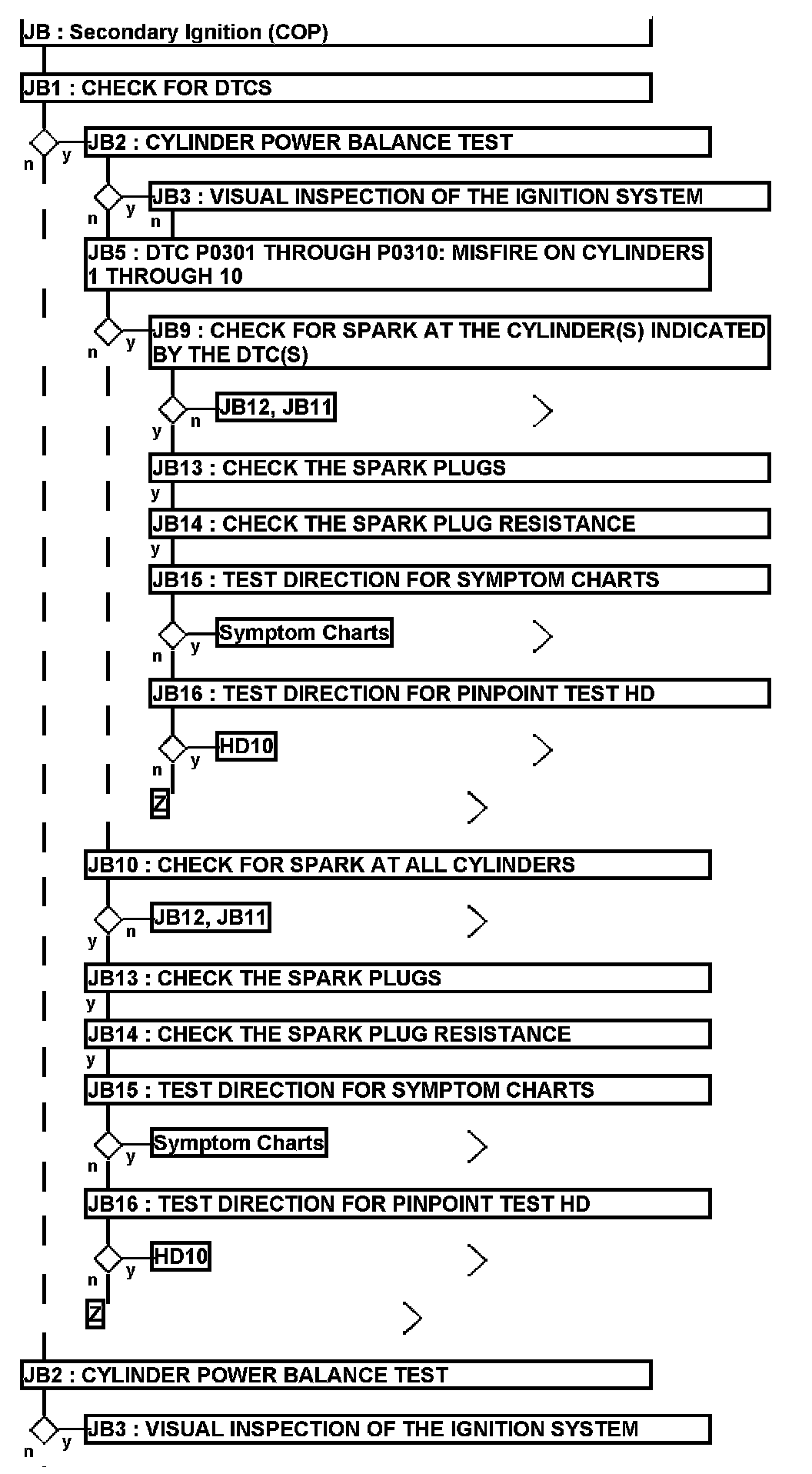

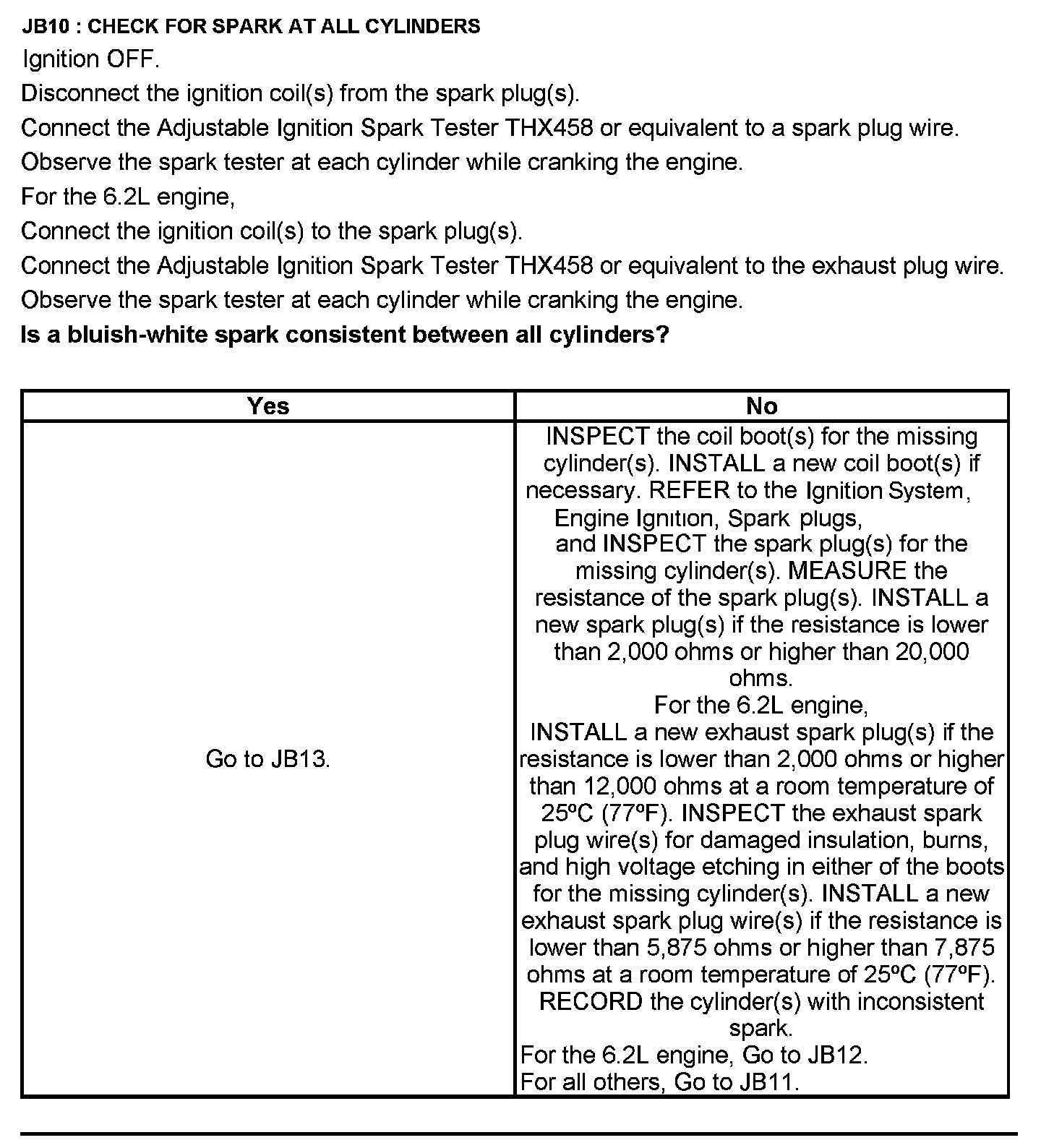

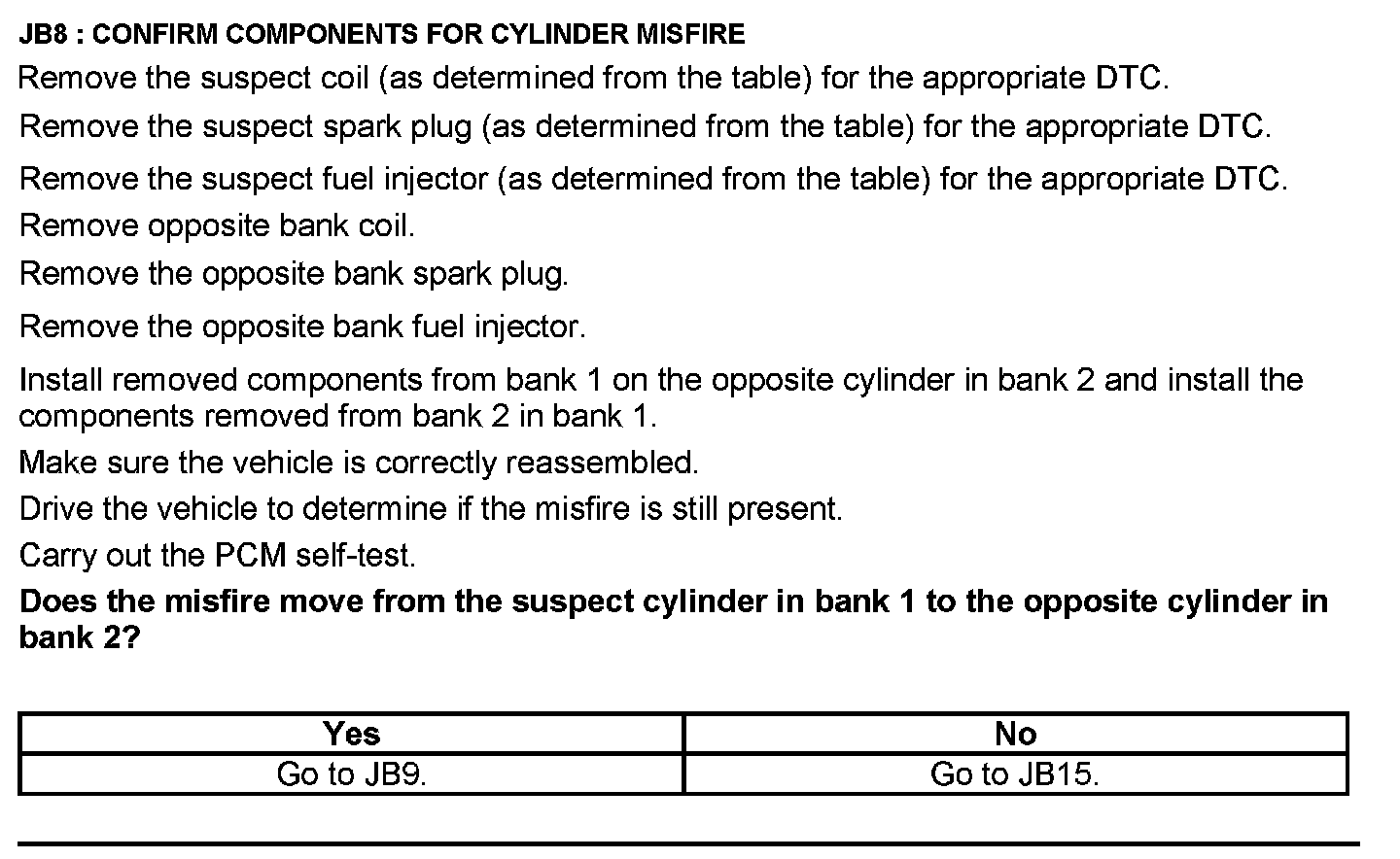

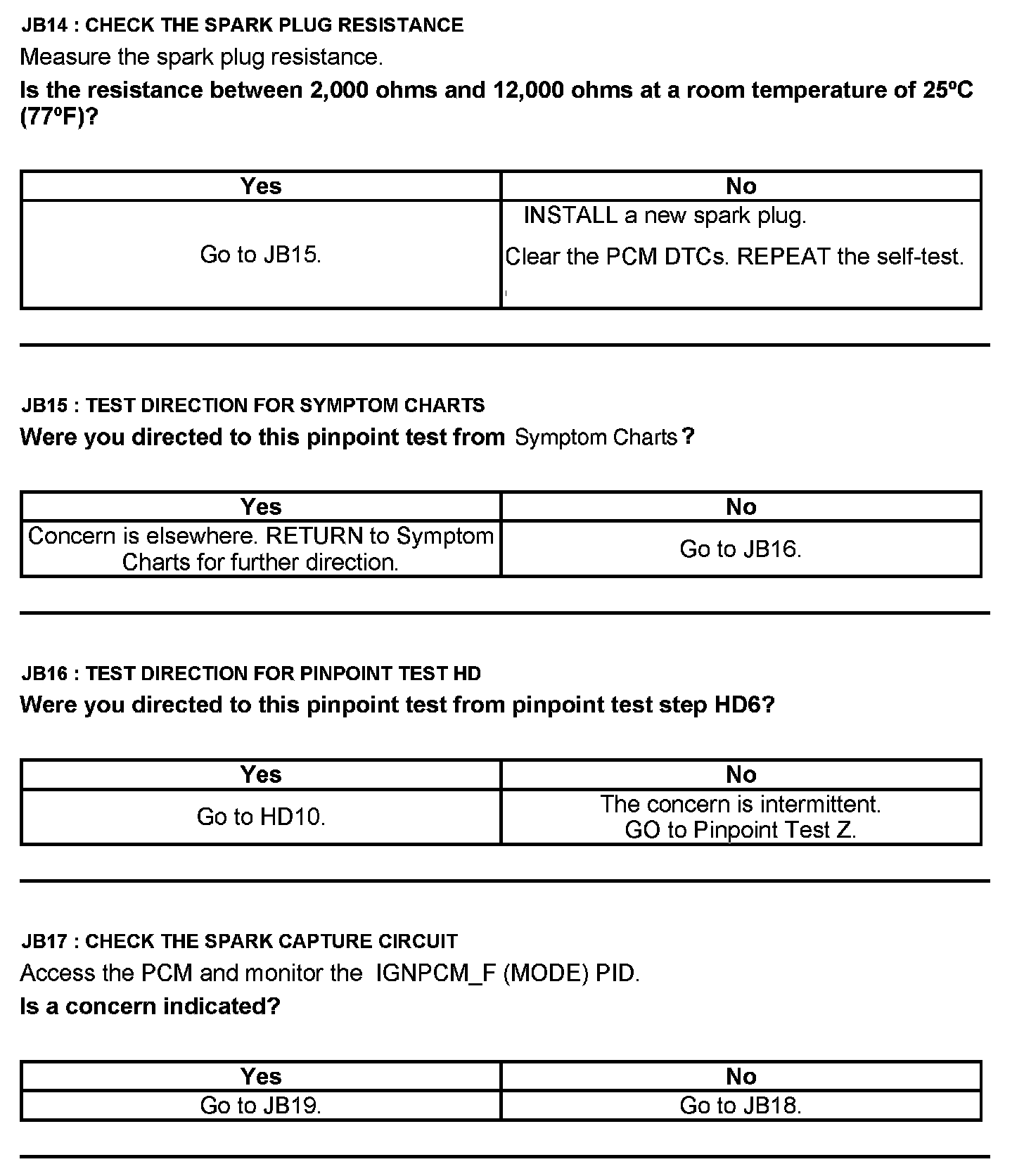

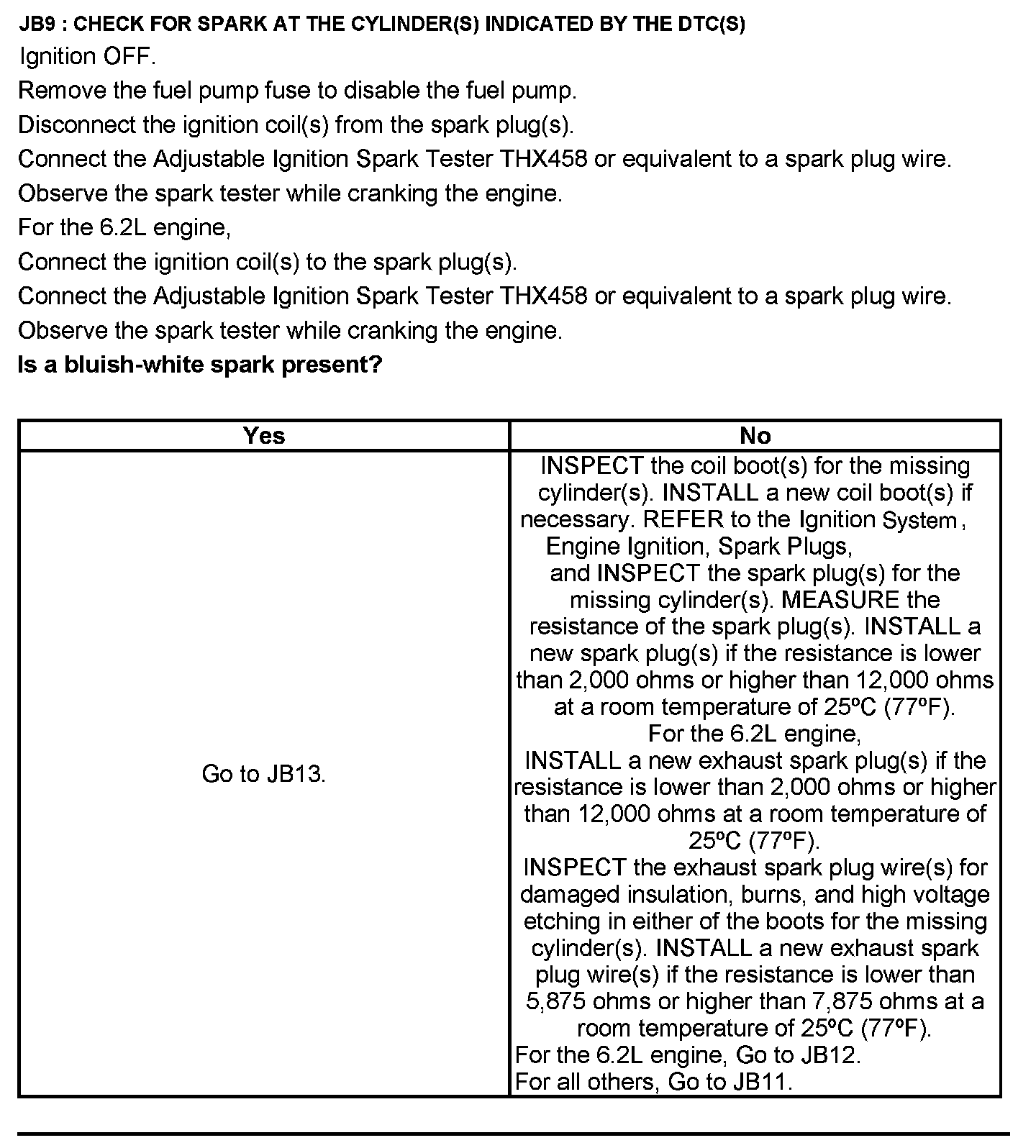

Test JB: Secondary Ignition (COP)



Secondary Ignition (COP)

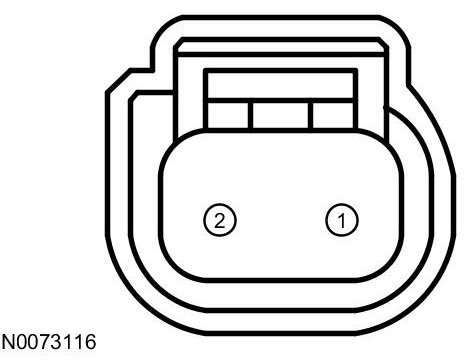

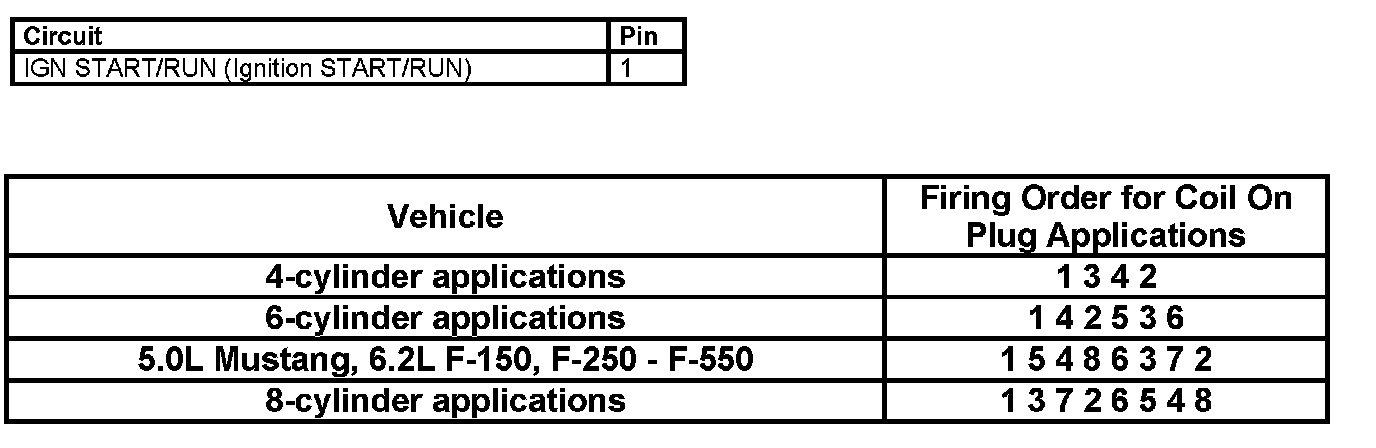

Coil On Plug (COP) Connector





Harness Side
