Intake Manifold

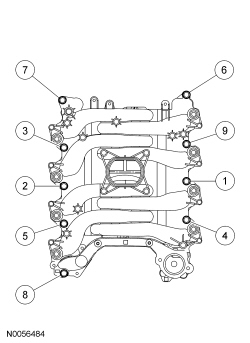

Tighten the 9 intake manifold bolts in the sequence shown.
Tighten to 10 Nm (89 lb-in).
