Electronic Brake Control Module
>>
C135 Anti-Lock Brake System (ABS) Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

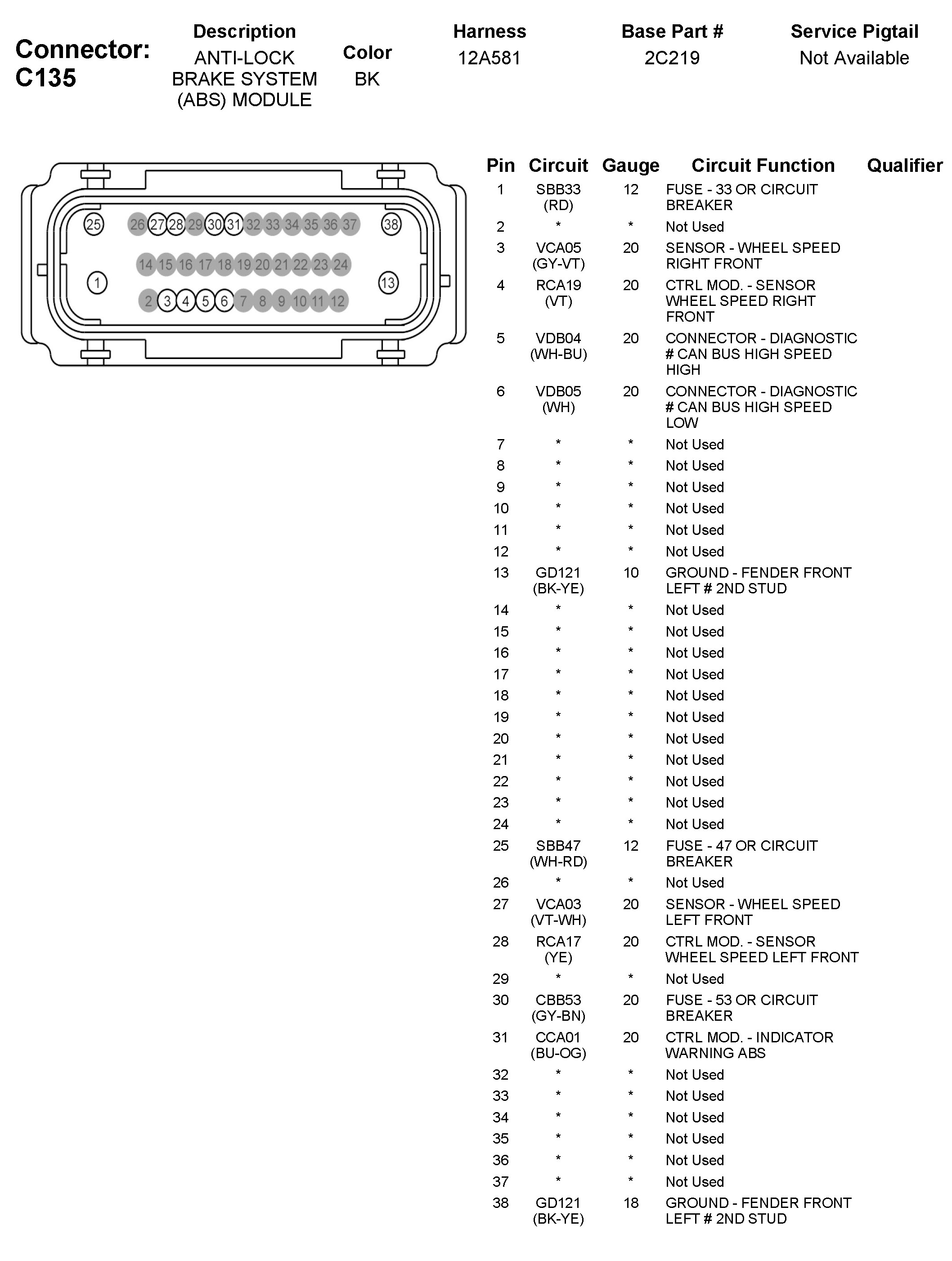

C135 Anti-Lock Brake System (ABS) Module
