Removal And Installation: Axle: Notes

WARNING: This page is about a different variant/trim than selected.

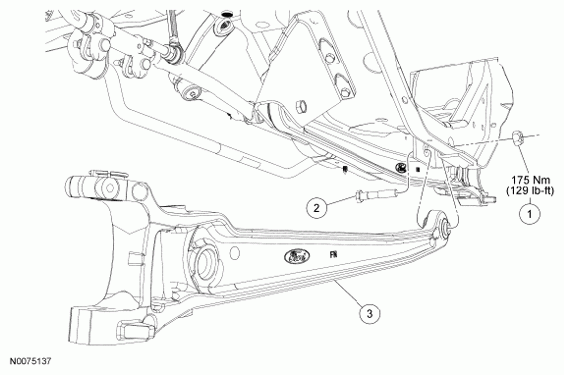

Fig 1: Axle Pivot Bolt And Nut With Torque Specifications
G06136797Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N620604 Axle pivot nut
2 N806859 Axle pivot bolt
3 3007 LH/ 3006 RH Axle
