Removal And Installation: Spring: Notes
WARNING: This page is about a different variant/trim than selected.

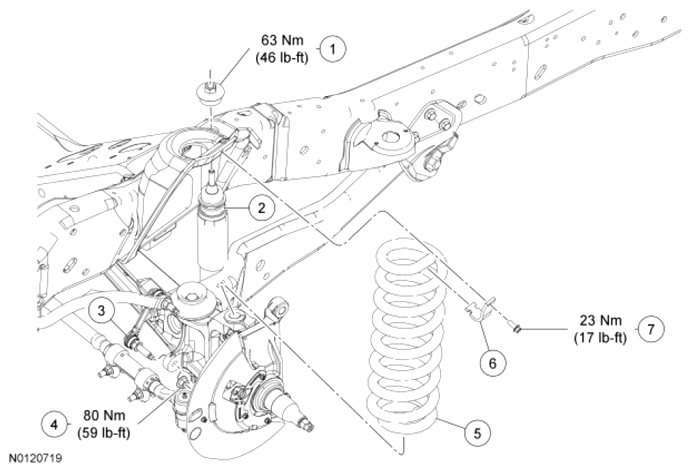

| Item | Part Number | Description |
|---|---|---|
| 1 | 18A192 | Shock absorber upper nut and bushing |
| 2 | 18045 | Shock absorber |
| 3 | 5K483 | Stabilizer bar link |
| 4 | W710269 | Stabilizer bar link nut |
| 5 | 5310 | Spring |
| 6 | 5A333 | Spring upper bracket |
| 7 | W505263 | Spring upper bracket bolt |
NOTE:
Vehicles with 6.8L engine, RH side only.
| Item | Part Number | Description |
|---|---|---|
| 8 | W505260 | Shock absorber upper heat shield bolt |
| 9 | 3C428 | Shock absorber upper heat shield |
