Exhaust Gas Recirculation (EGR) System Components - Exploded View, 4.6L
WARNING: This page is about a different variant/trim than selected.

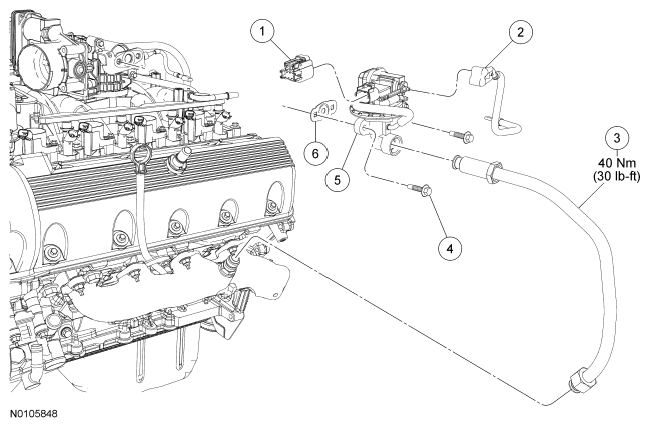

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components - 4.6L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR system module electrical connector (part of 12B637) |
| 2 | 9E498 | EGR system module vacuum connector |
| 3 | 9D477 | Exhaust manifold-to-EGR system module tube |
| 4 | W506024 | EGR system module bolt (2 required) |
| 5 | 9D475 | EGR system module |
| 6 | 9D476 | EGR system module gasket |
- For additional information, refer to the appropriate procedure in this service information. .
