Air Conditioning (A/C) Compressor: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

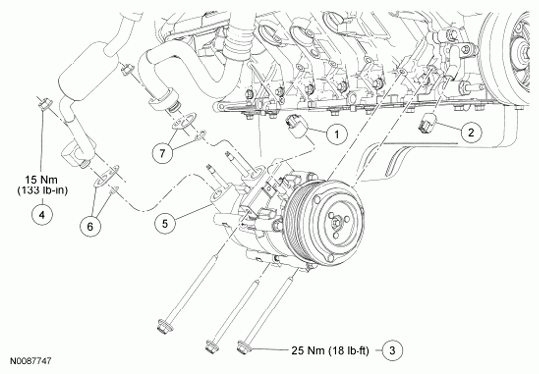

Fig 1: Air Conditioning Compressor - 4.6L, 5.4L, And 6.8L Replacement Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch field coil electrical connector (part of 12A581) |
| 2 | - | Crankshaft position sensor (part of 12A581) |
| 3 | W710159 | A/C compressor bolt (3 required) |
| 4 | W520413 | A/C compressor fitting nut |
| 5 | 19703 | A/C compressor |
| 6 | 19B596 | O-ring seal and gasket seal kit |
| 7 | 19B596 | O-ring seal and gasket seal kit |
