Intake Manifold

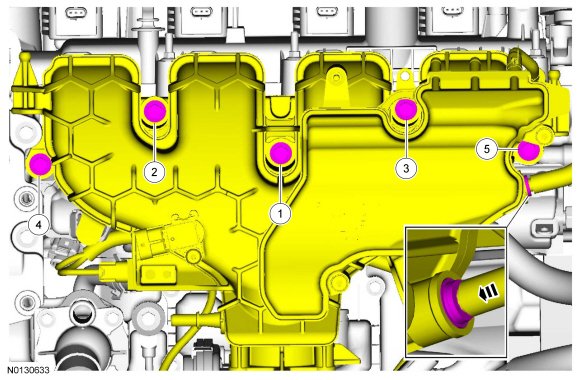

Install the
intake manifold
and the 5 bolts.
Tighten in the sequence shown to
20 Nm (177 lb-in).
