Control Assembly: Service and Repair




Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

NOTE: When installing a new HVAC module on vehicles equipped with Electronic Manual Temperature Control (EMTC), the Programmable Module Installation (PMI) procedure must be carried out to configure the new module to the vehicle. Refer to Information Bus.

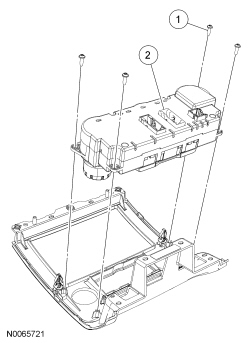

1. Remove the middle center instrument panel finish panel.

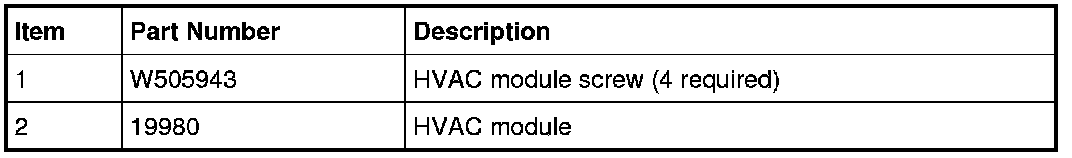

2. Remove the 4 HVAC module screws.

3. Remove the HVAC module.

4. To install, reverse the removal procedure.
