Manual Transmission

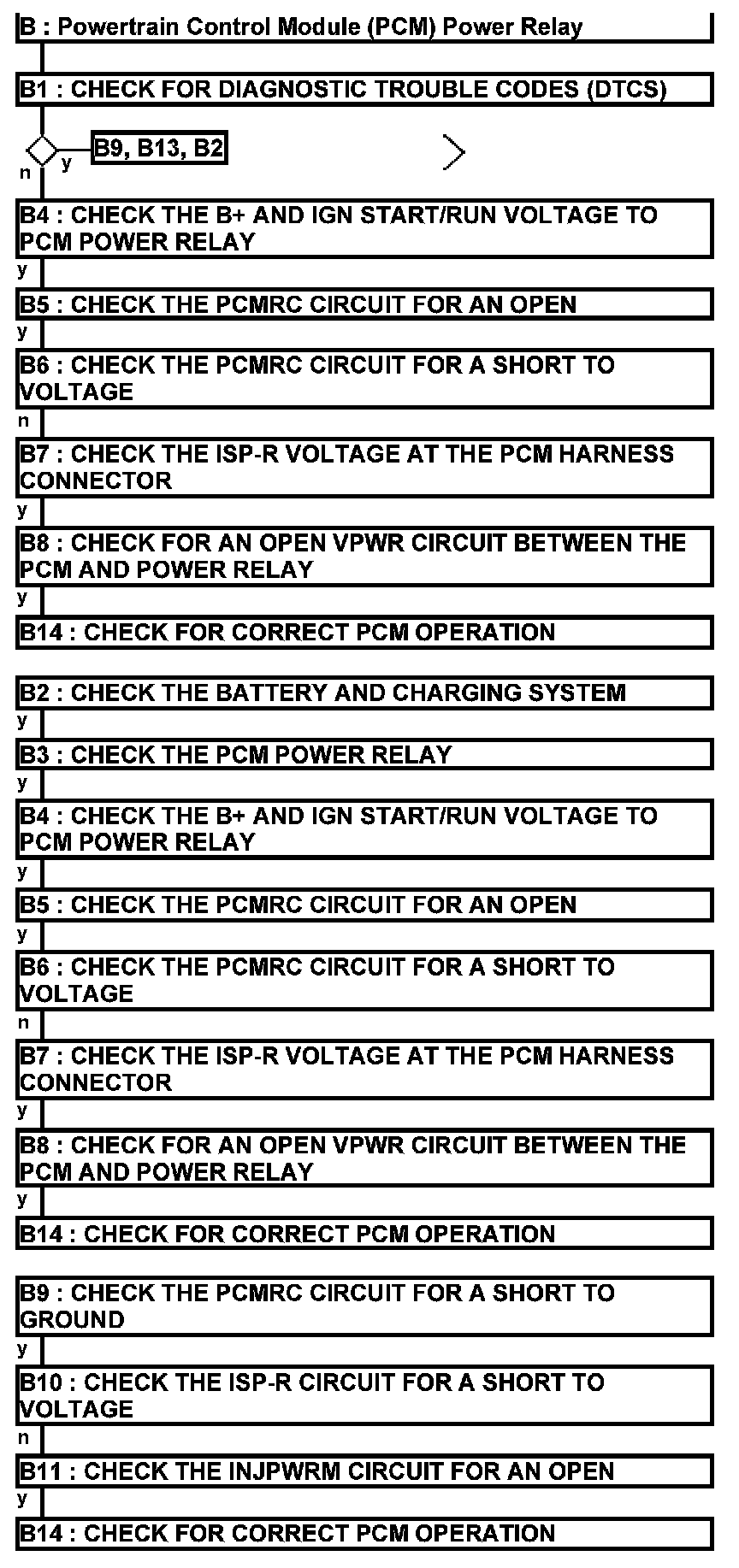

Powertrain Control Module (PCM) Power Relay - Manual Transmission.

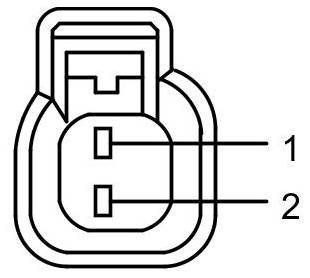

Injector (INJ) Connector

Harness Side

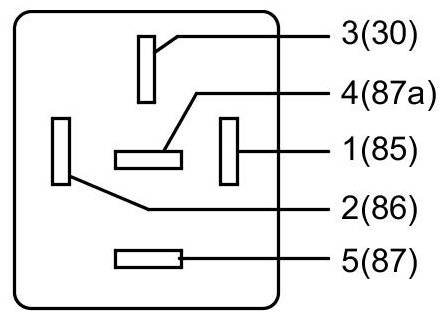

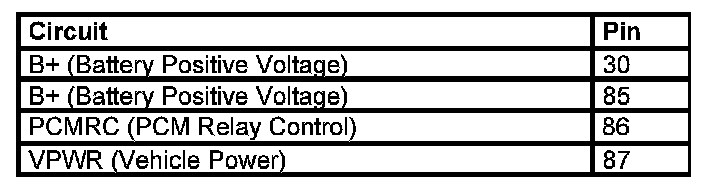

Powertrain Control Module Power (PCM Power) Relay Connector

Harness Side

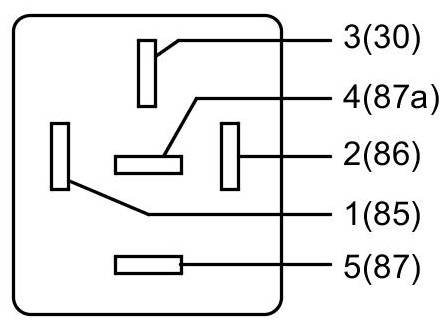

Component side

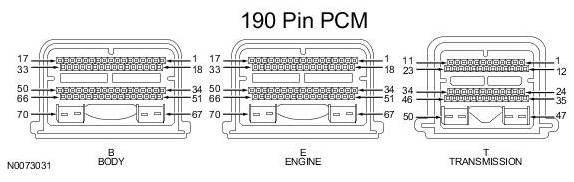

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.

Harness Side
