All Others

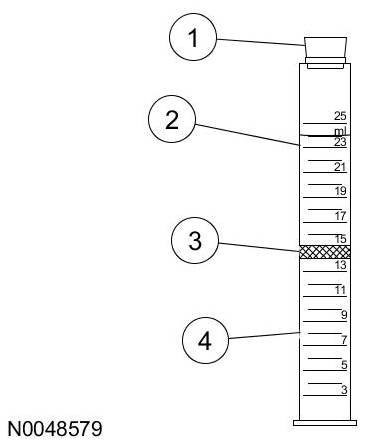

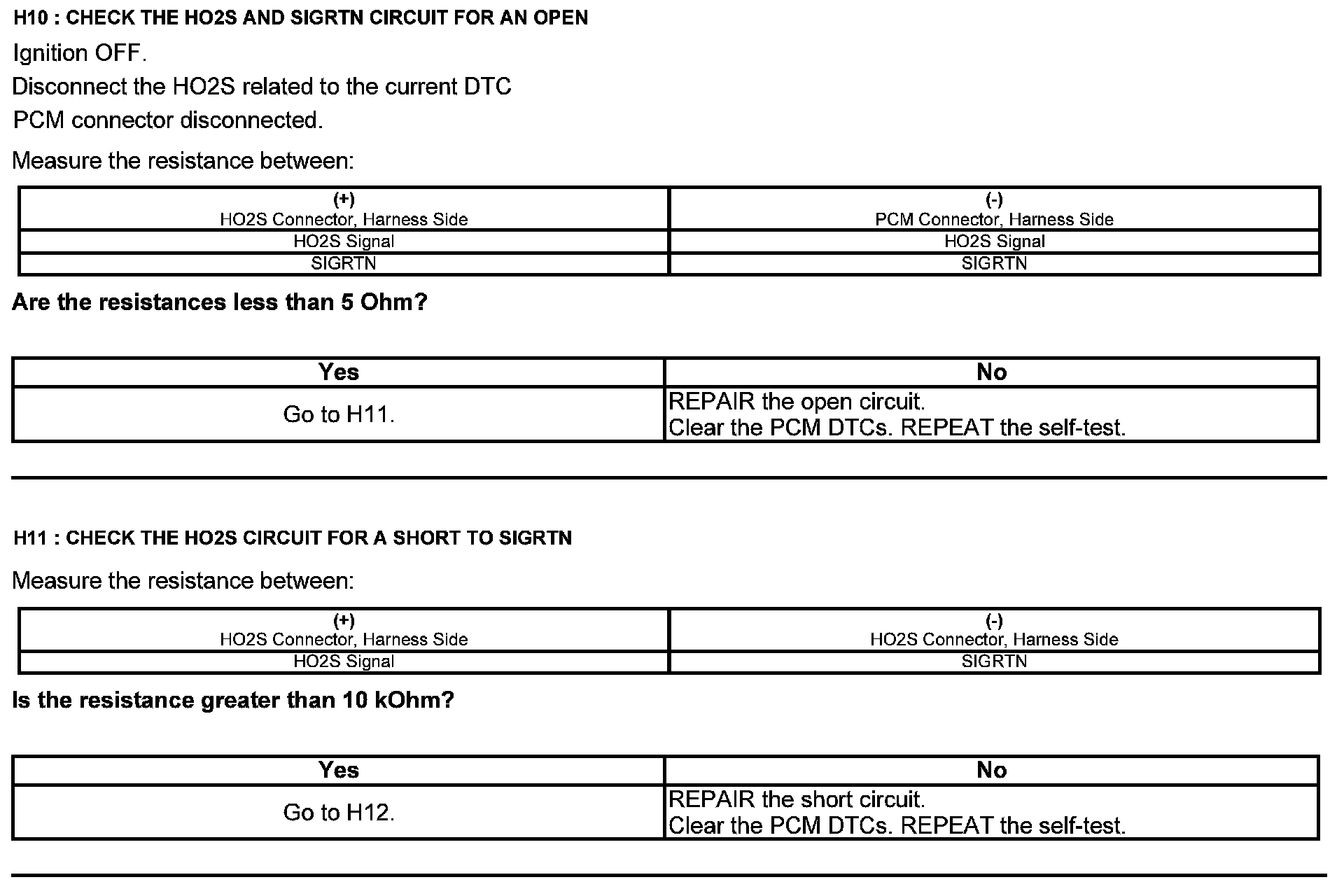

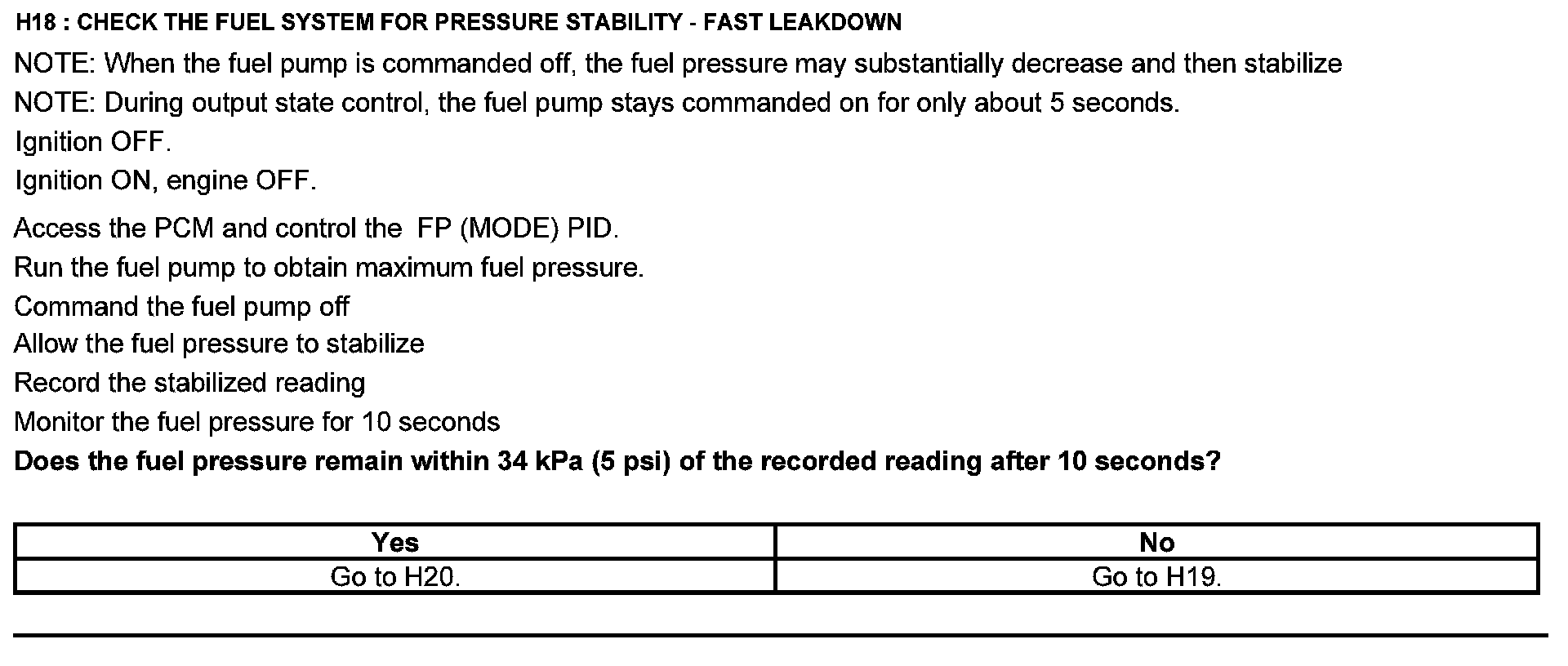

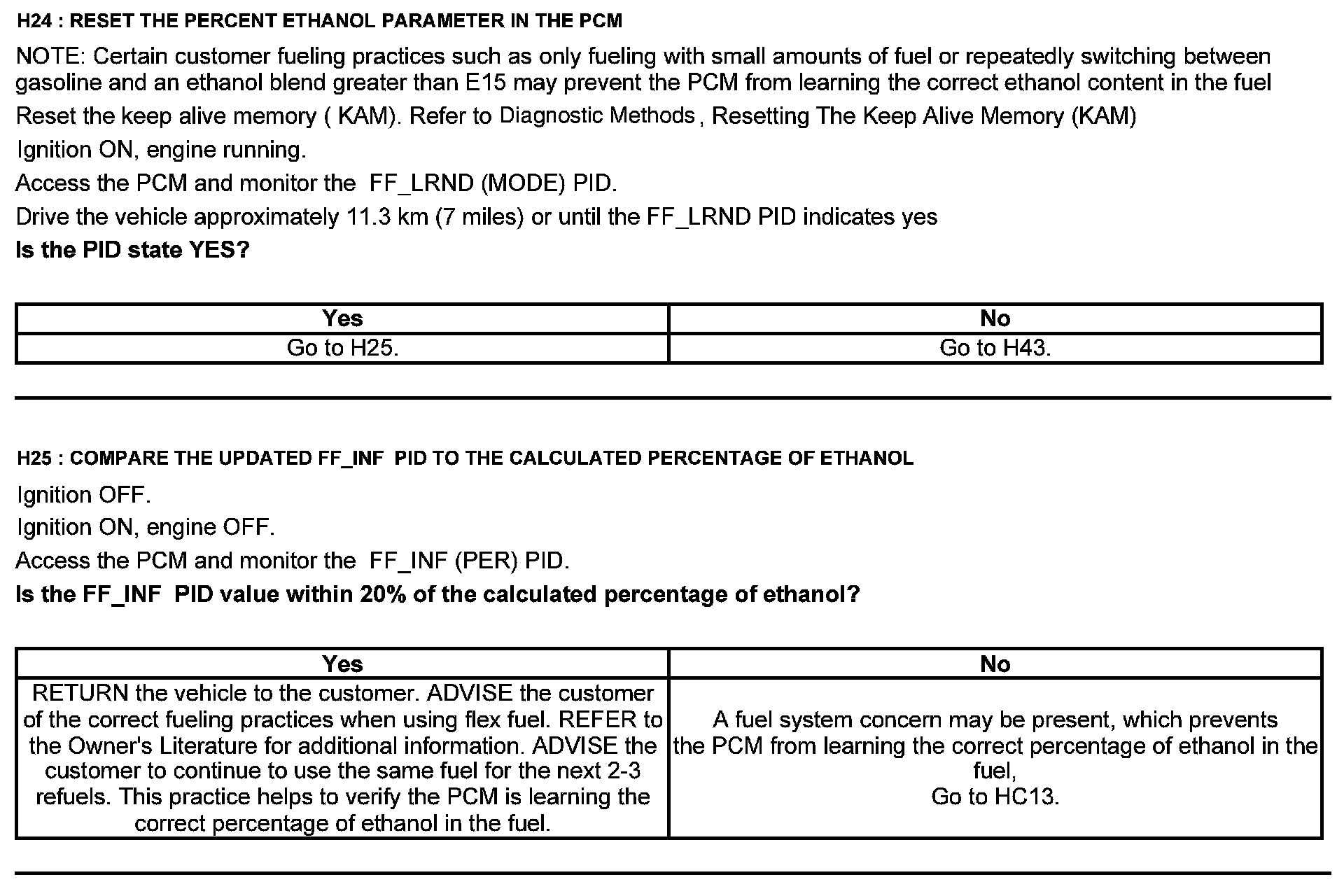

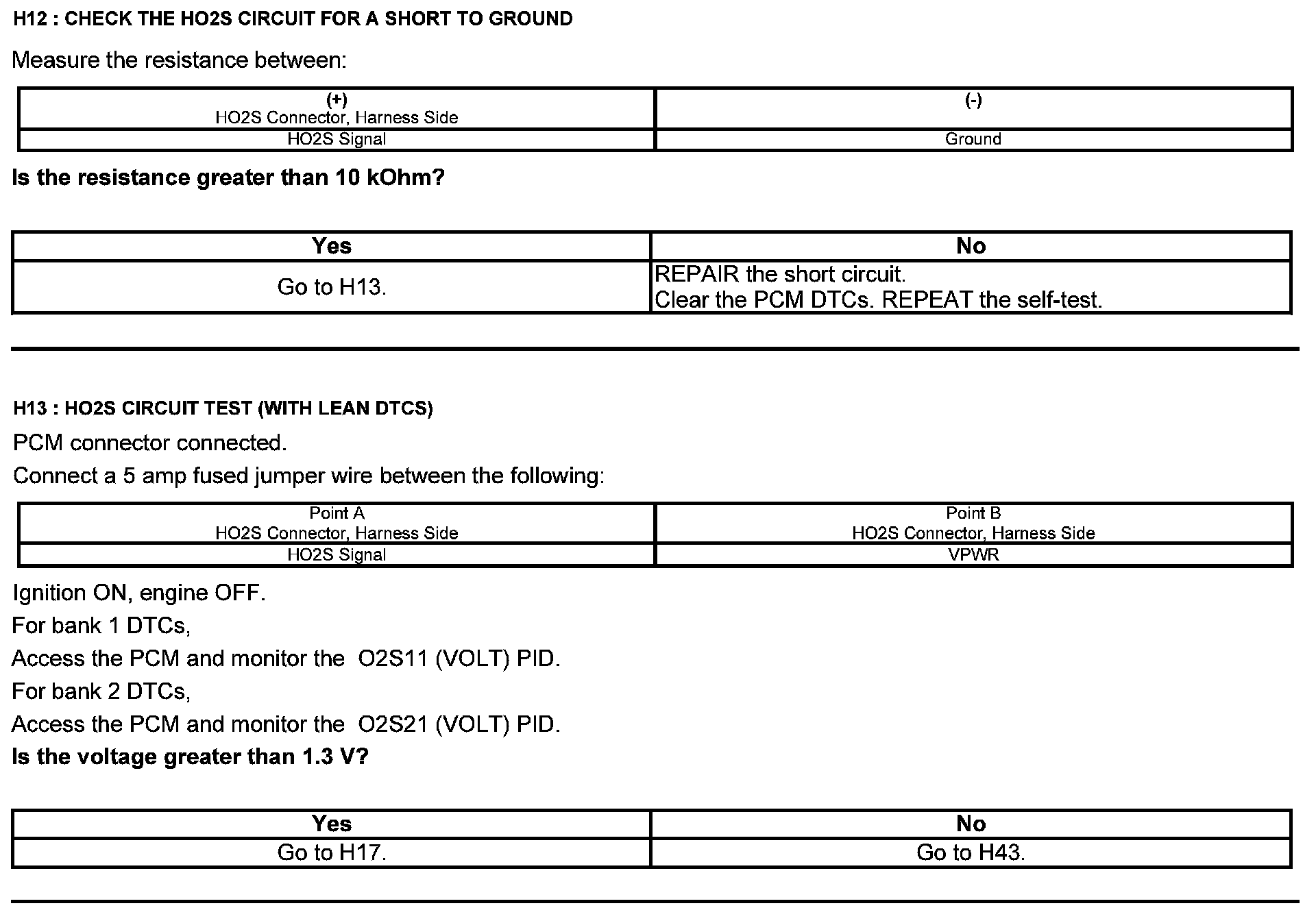

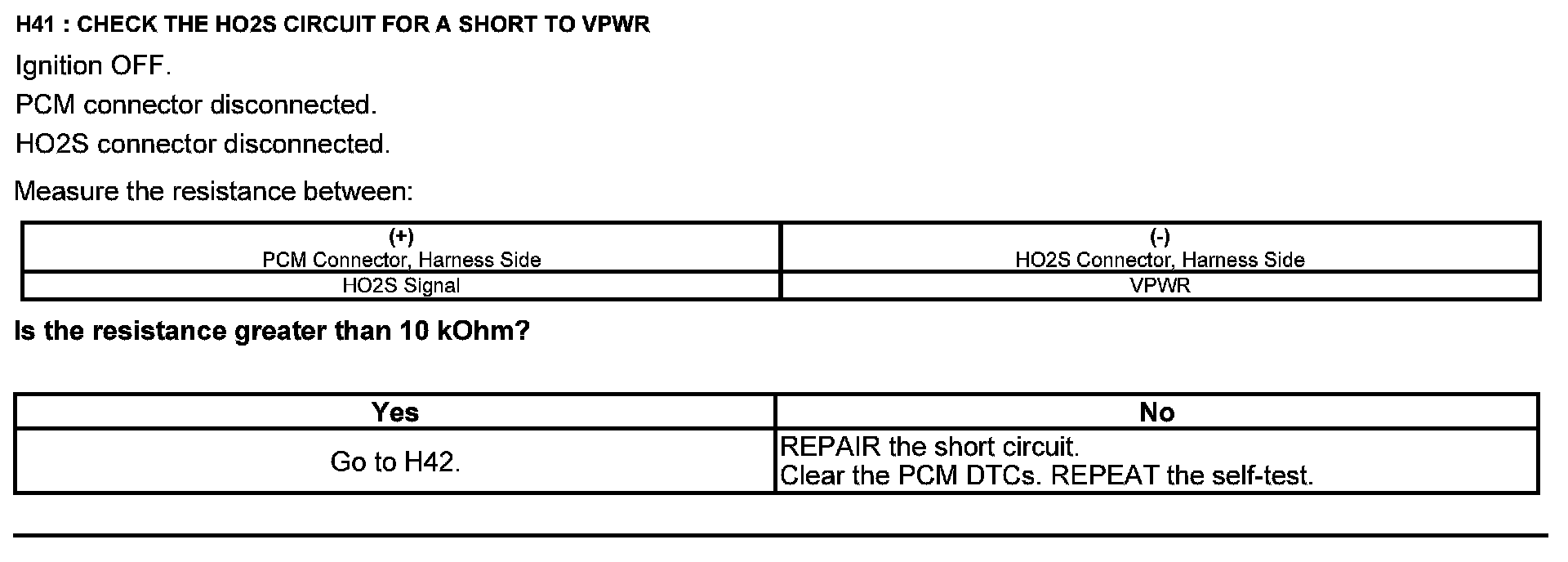

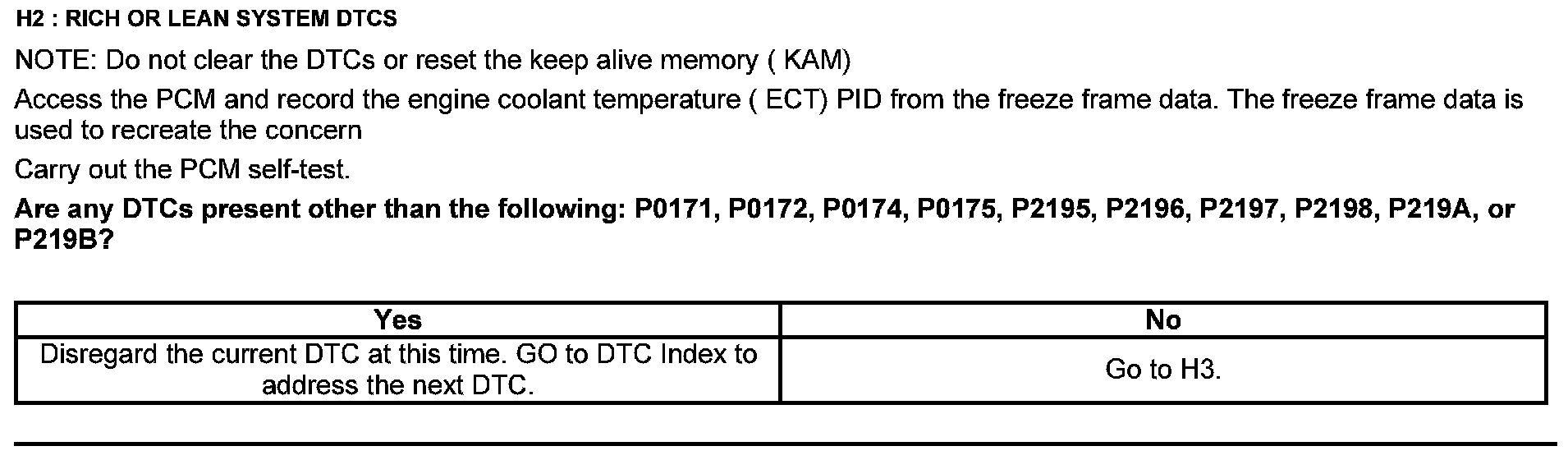

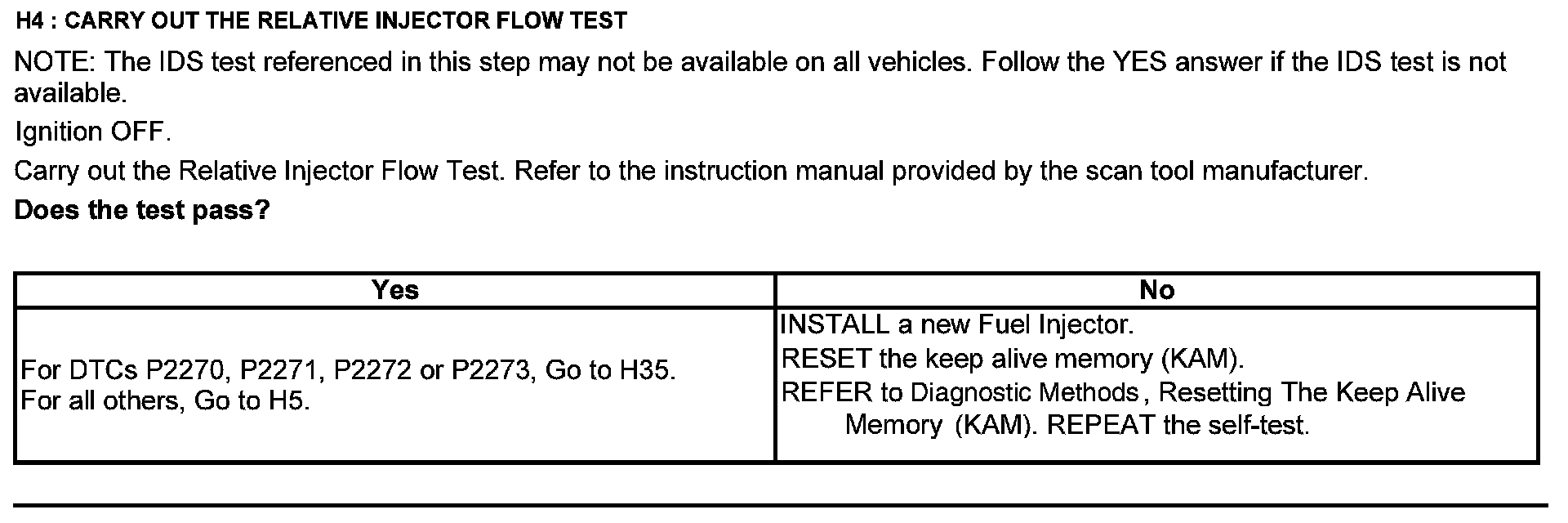

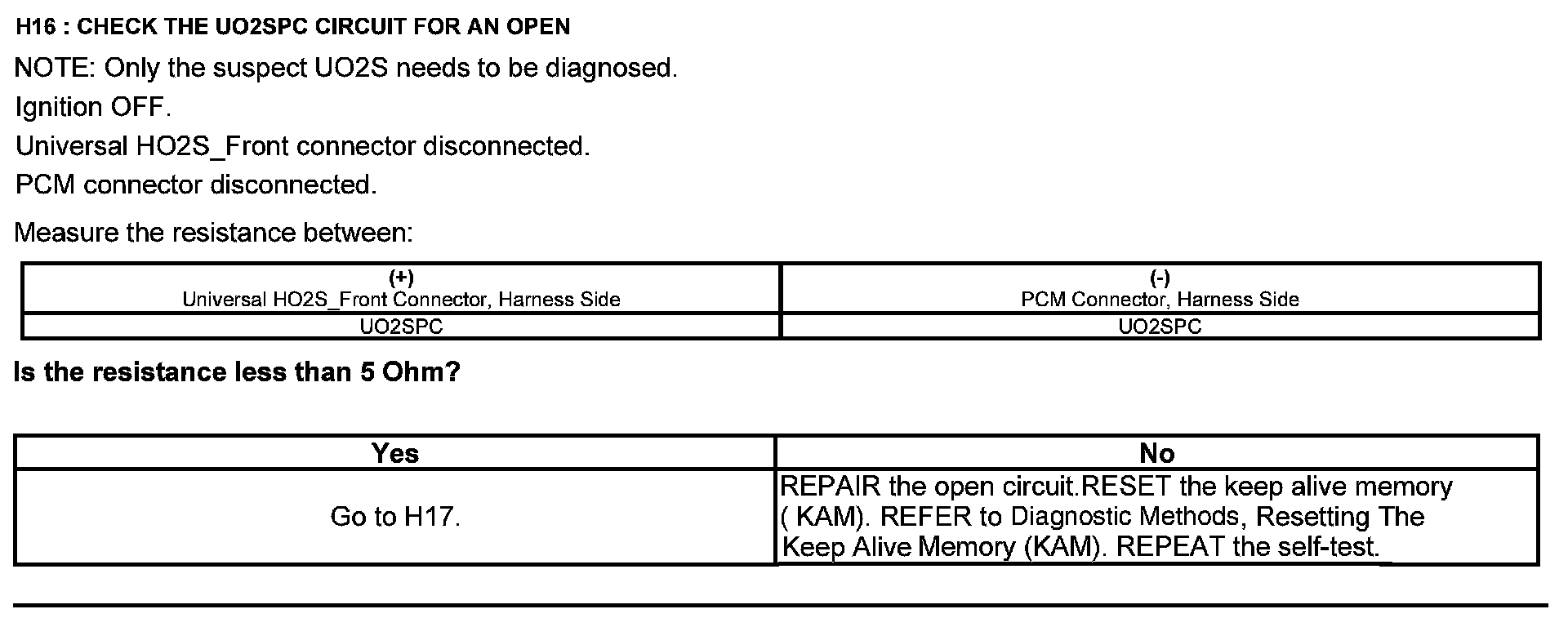

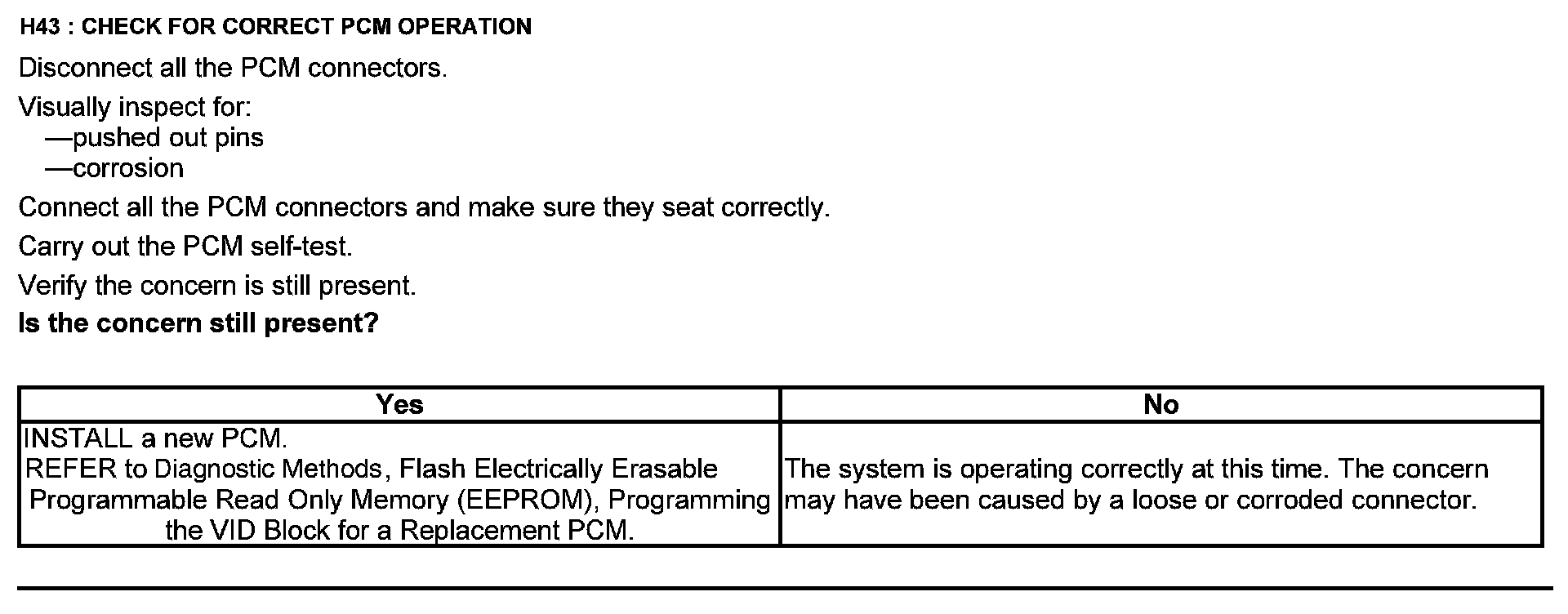

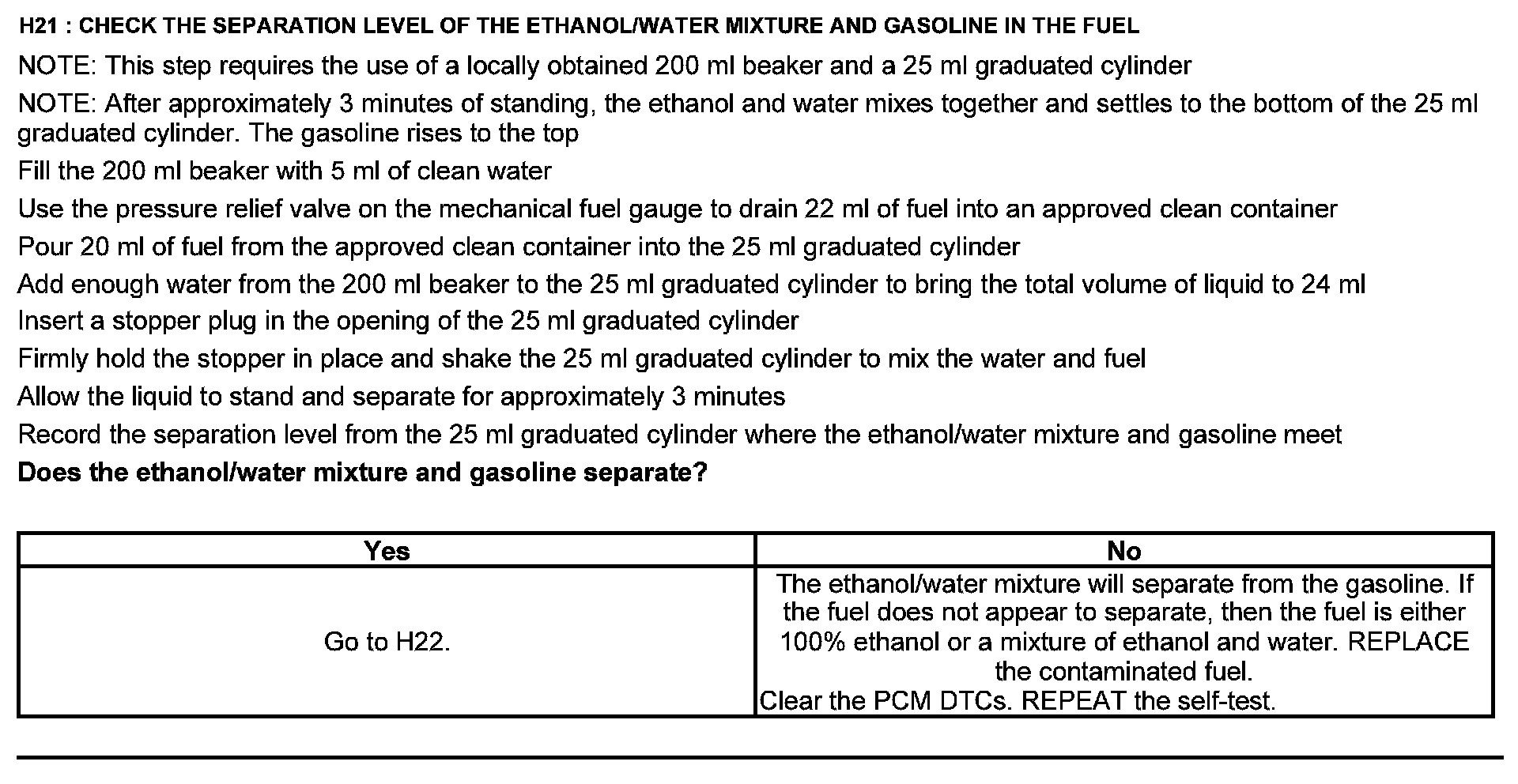

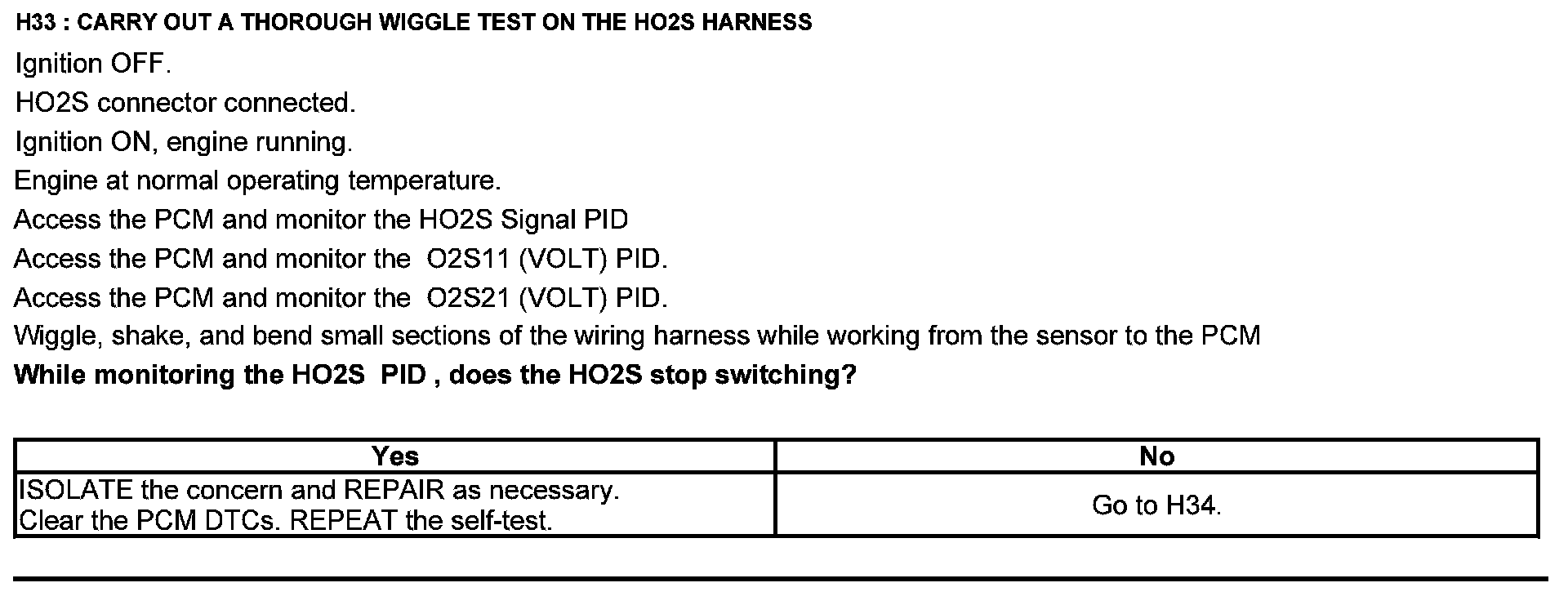

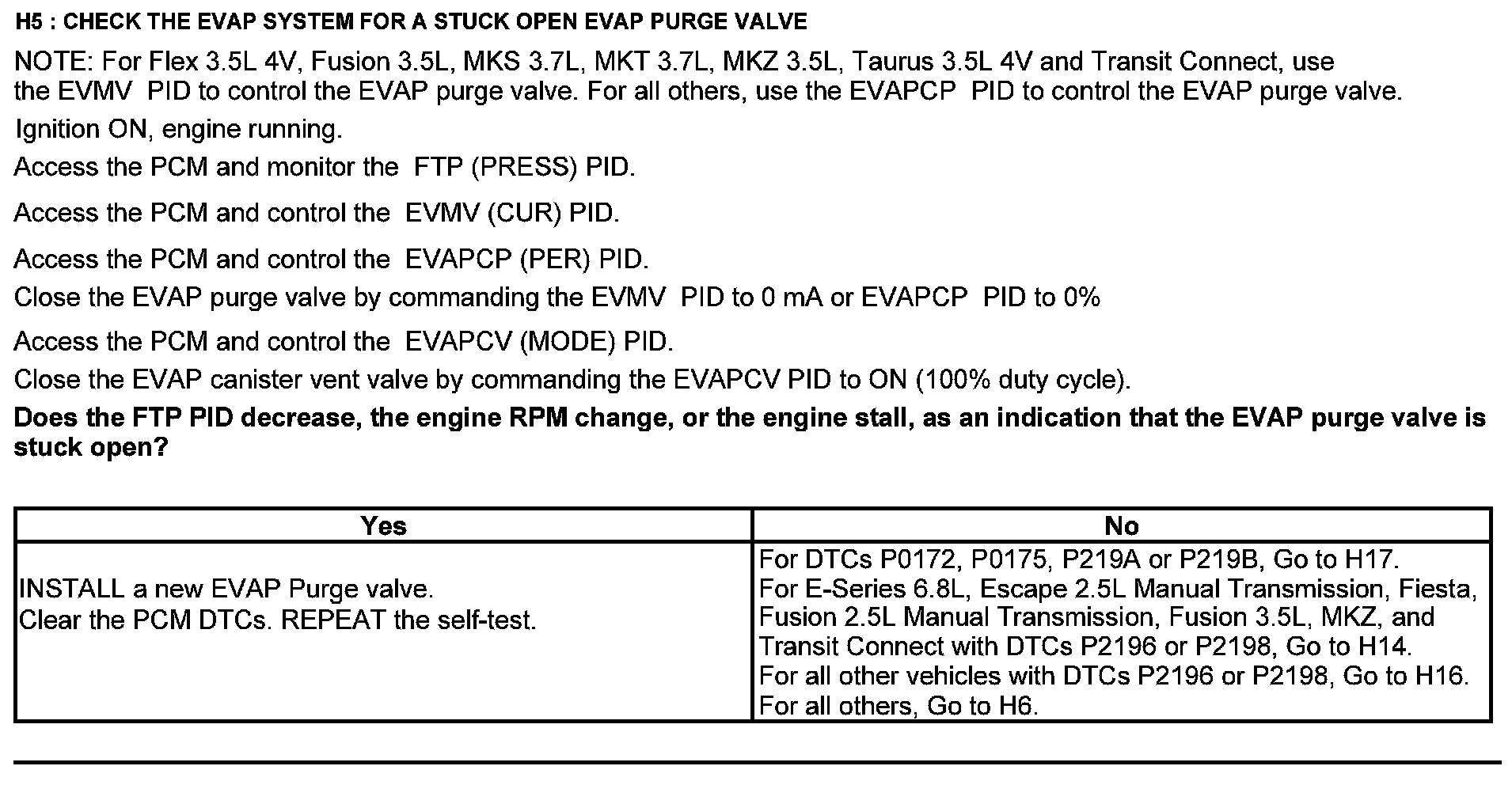

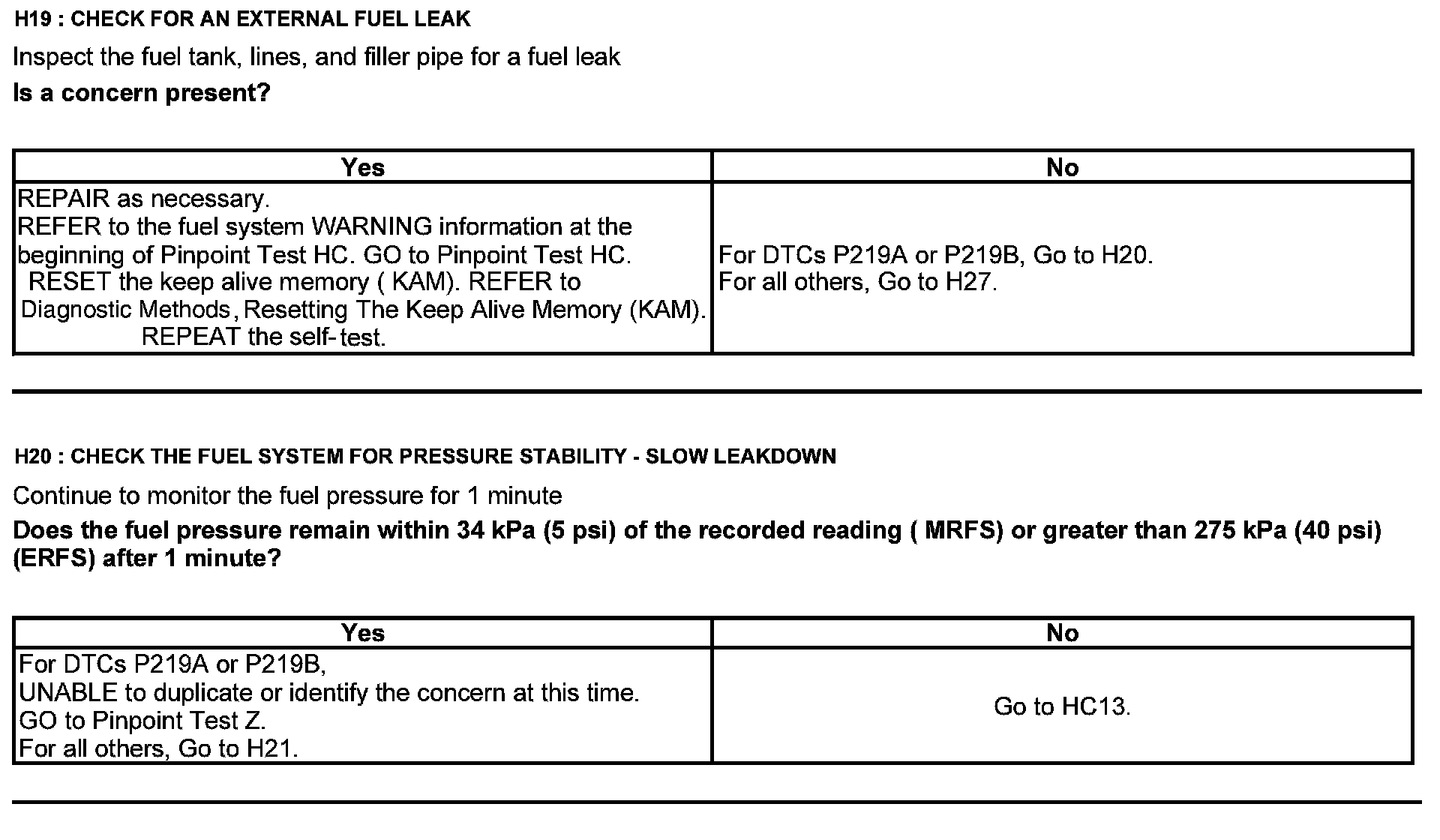

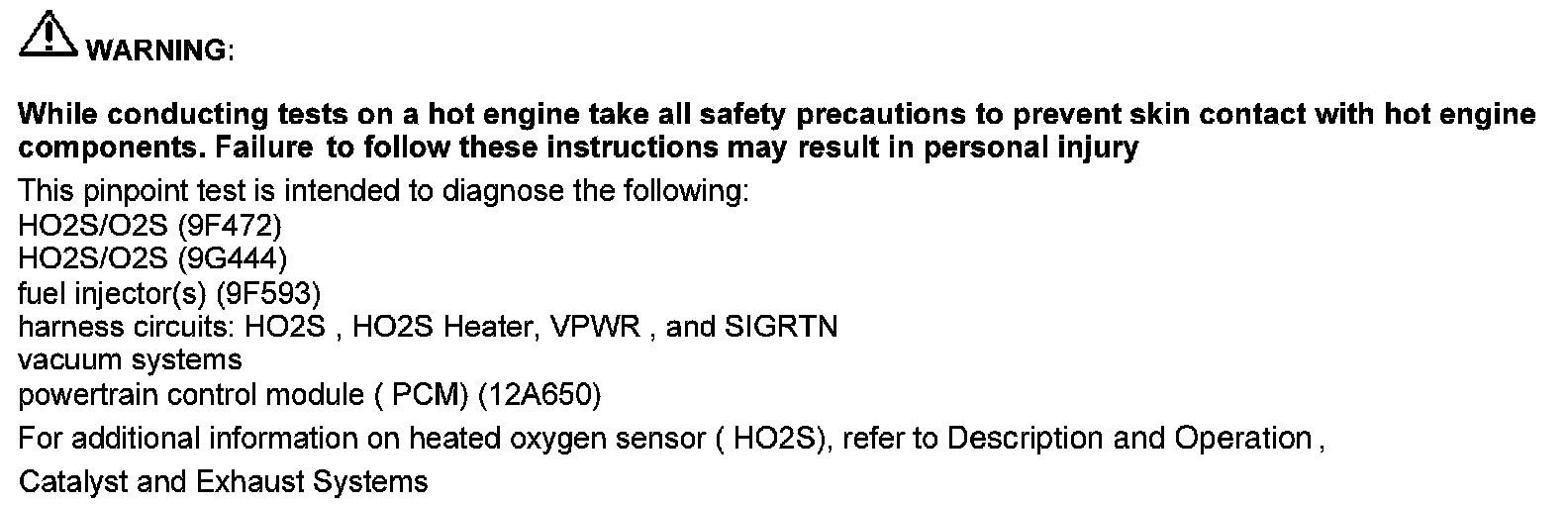

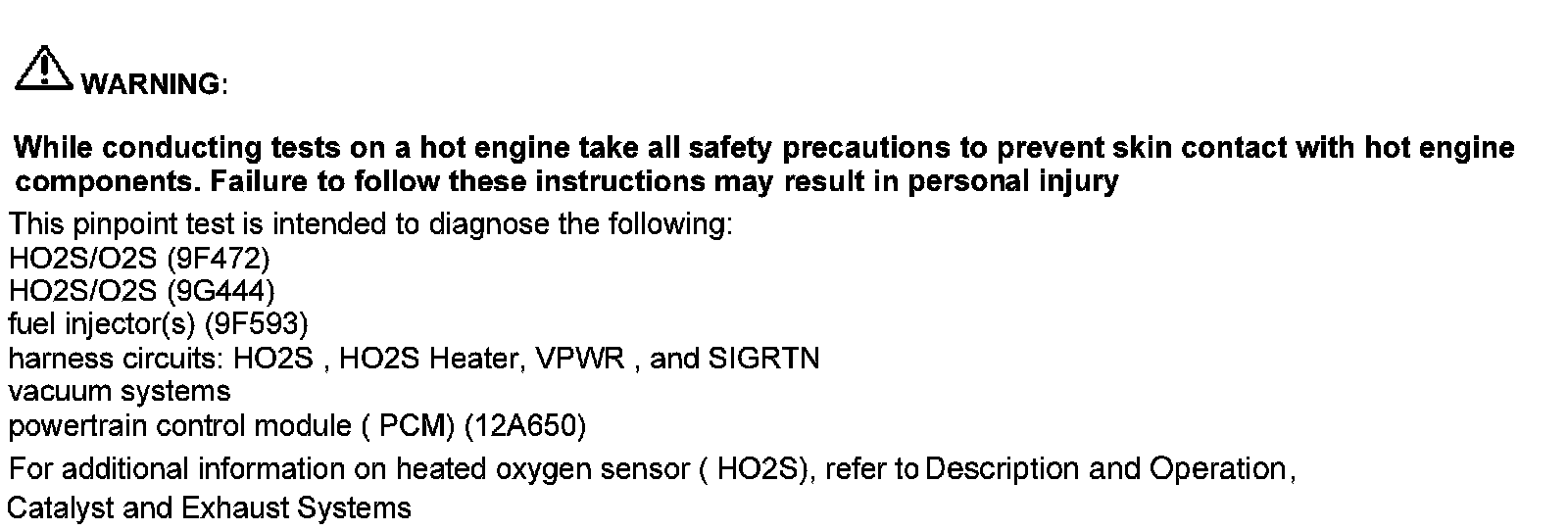

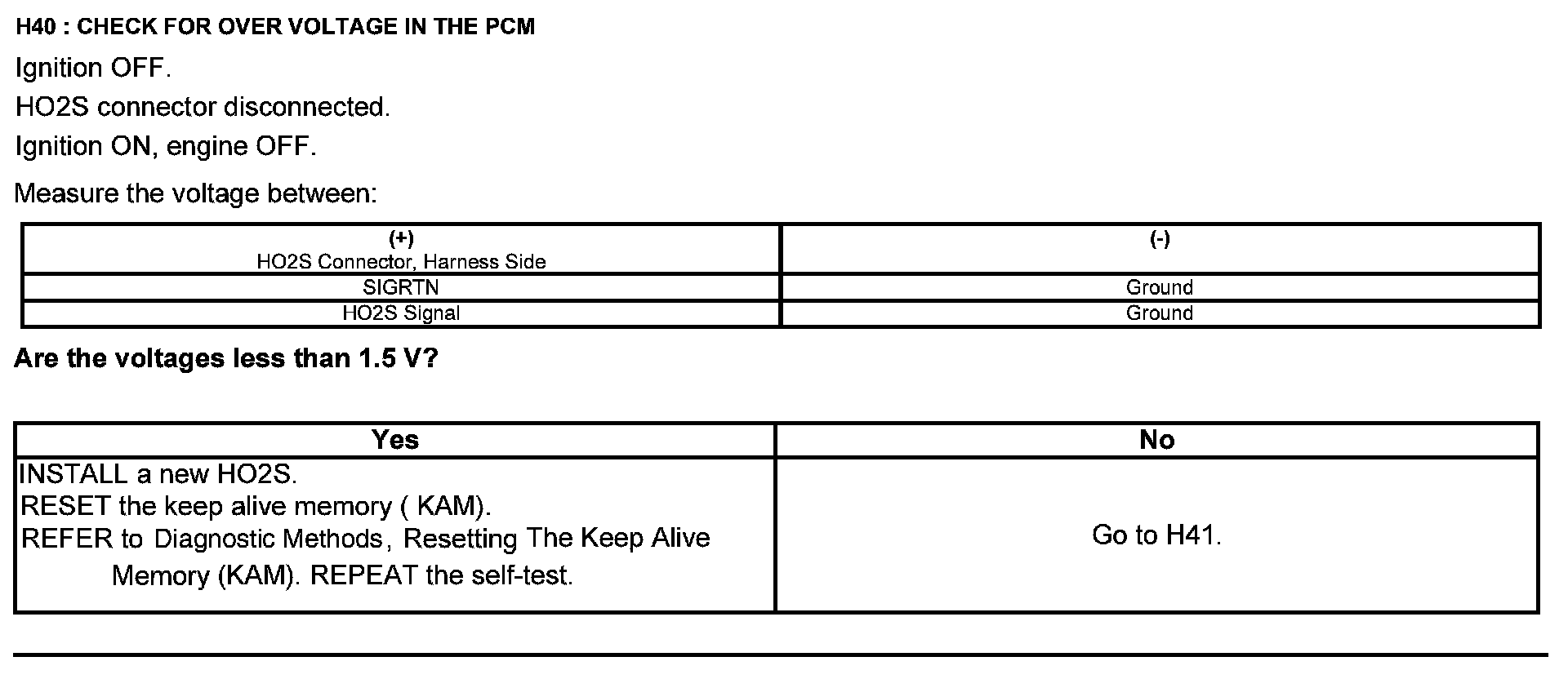

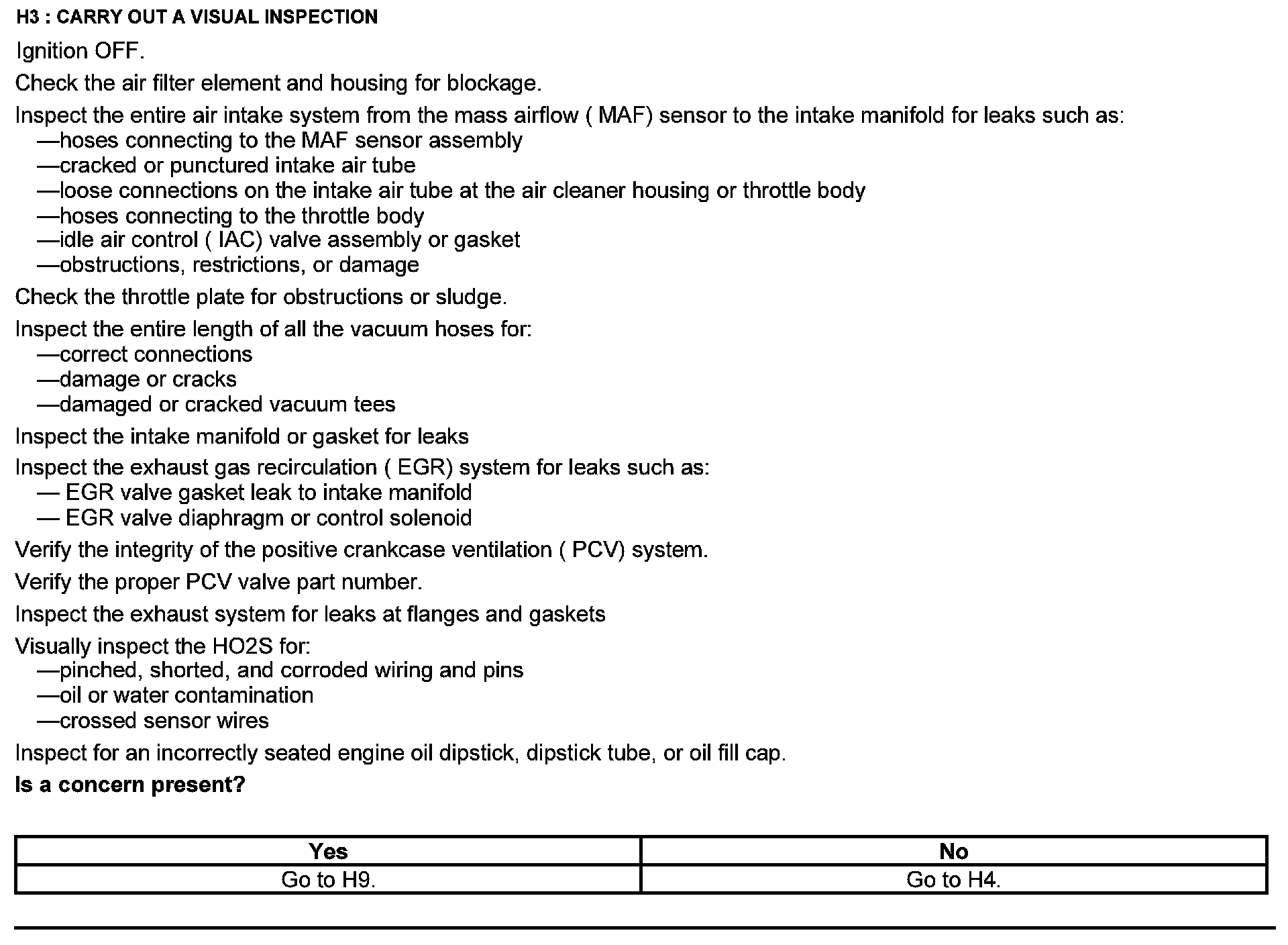

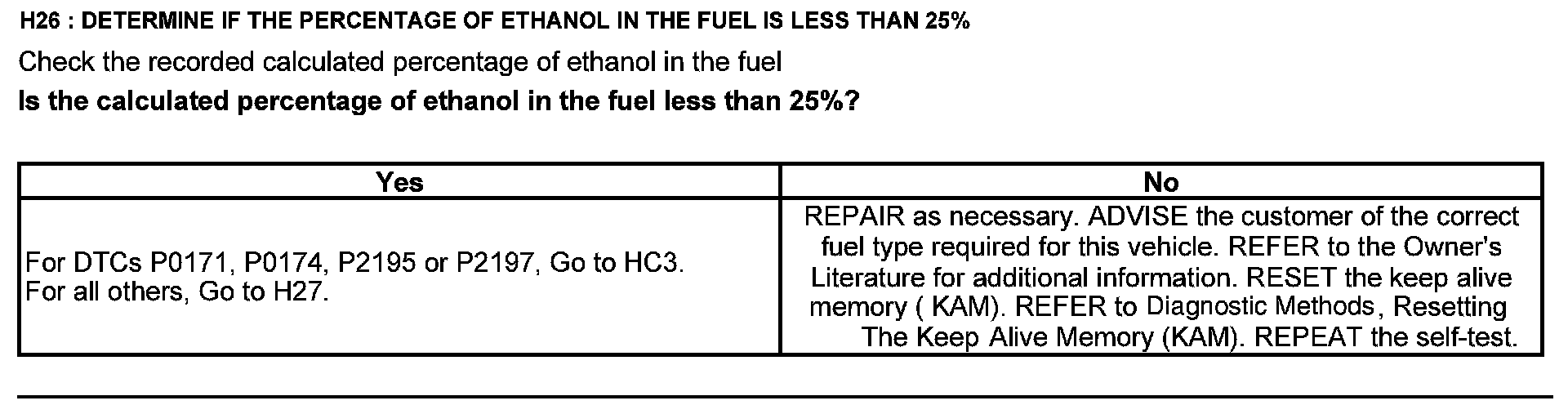

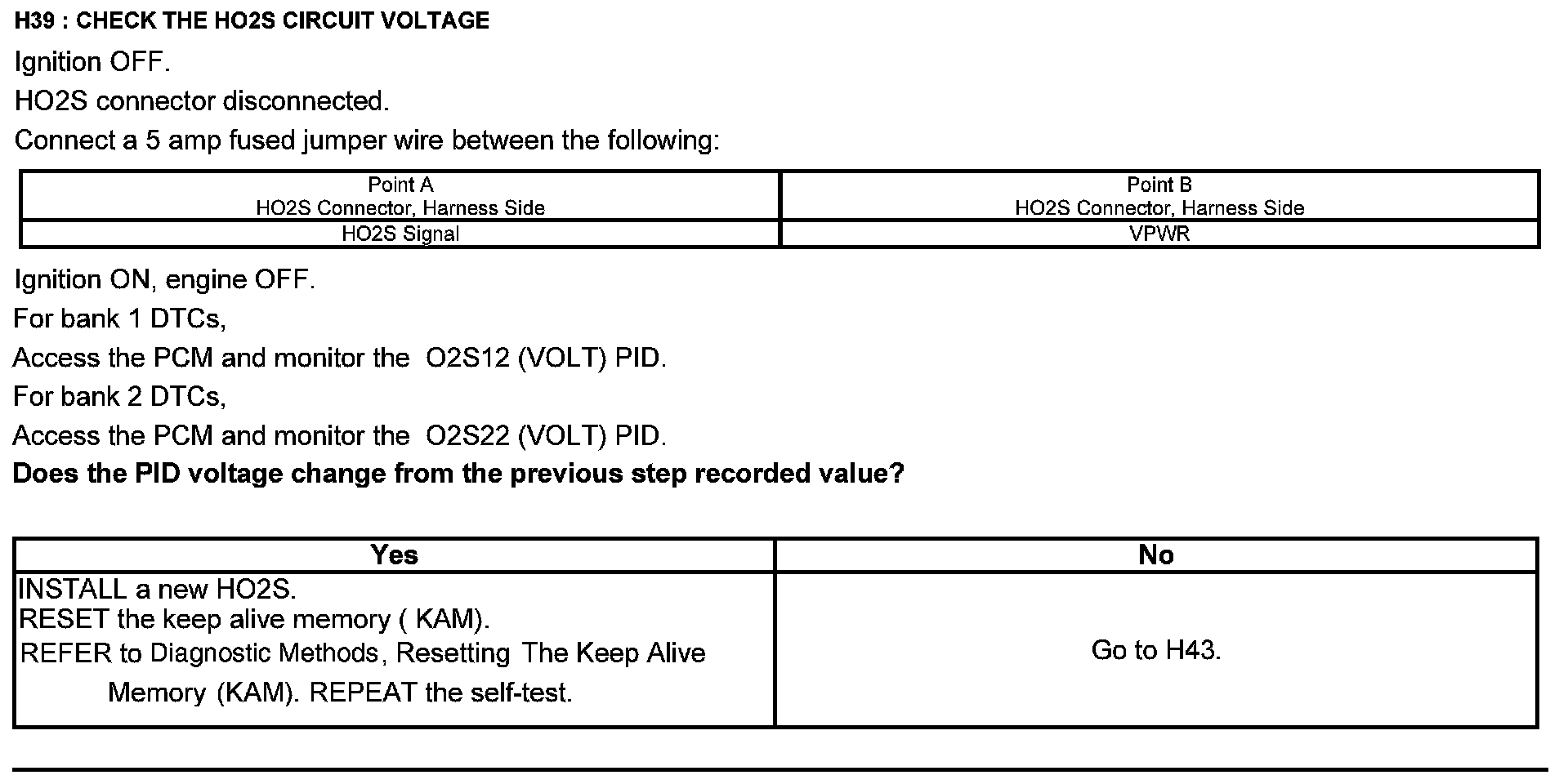

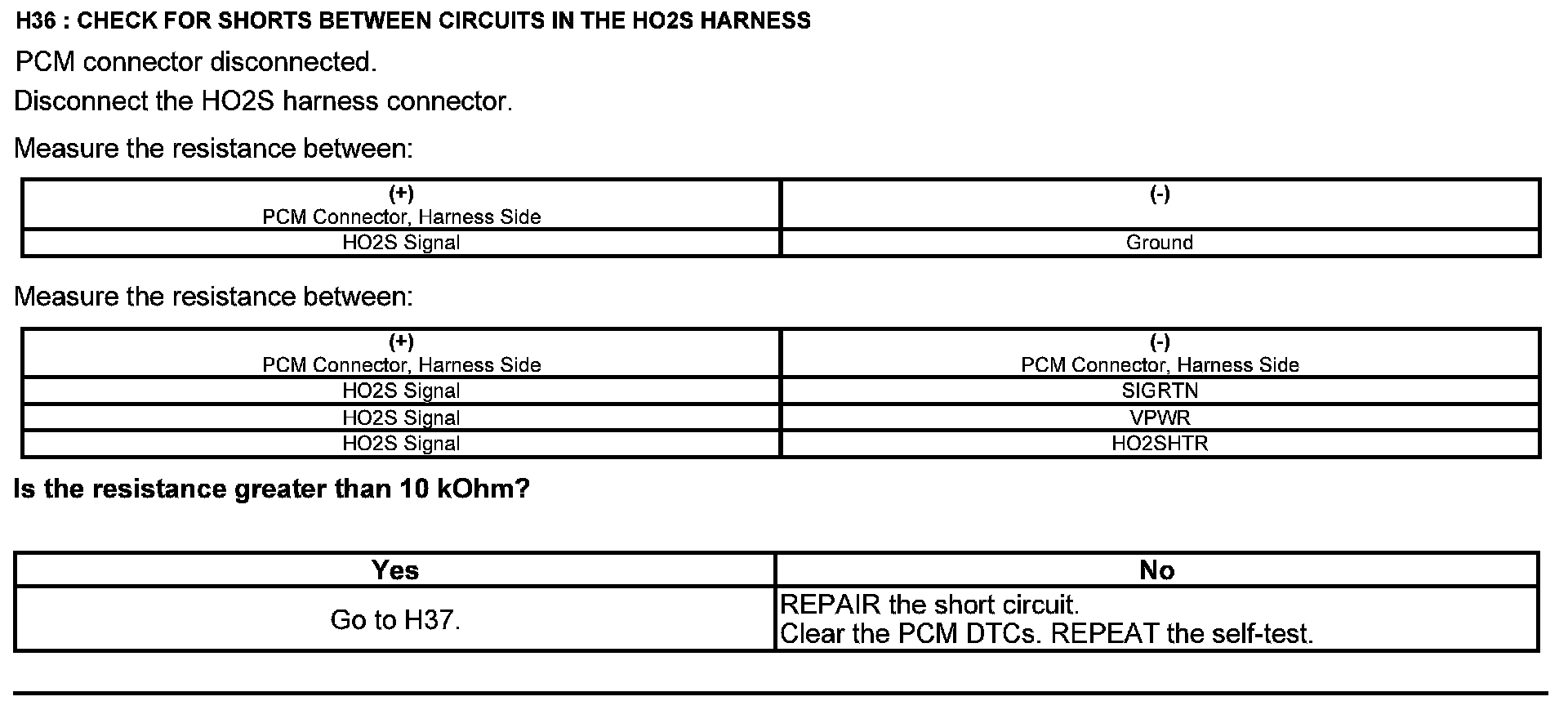

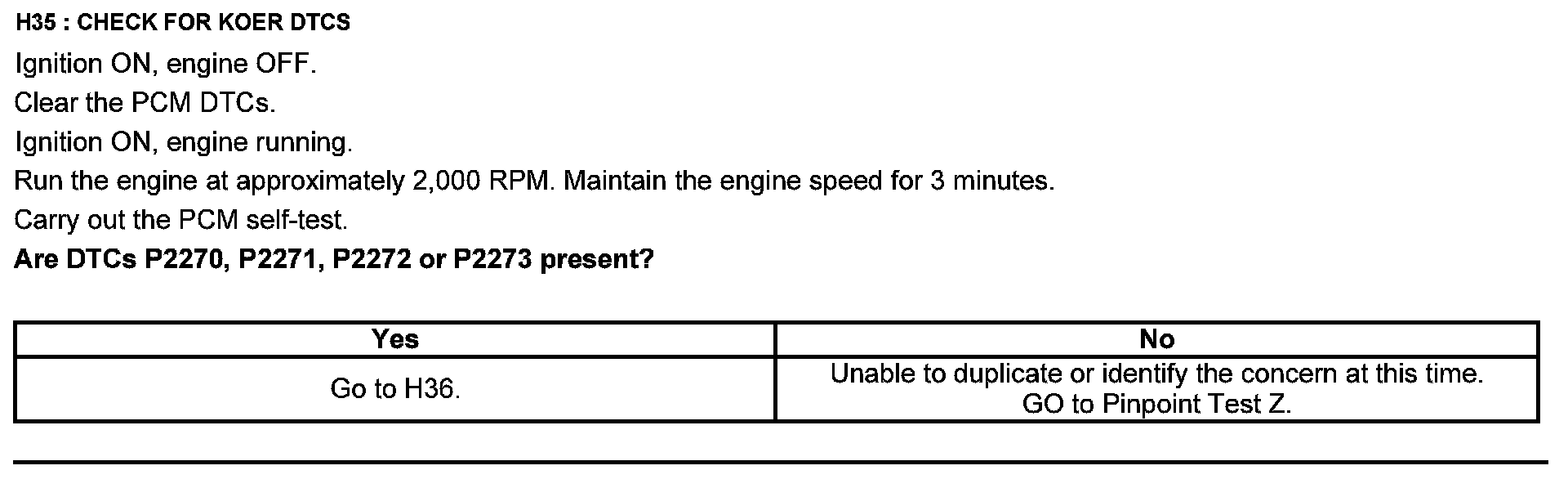

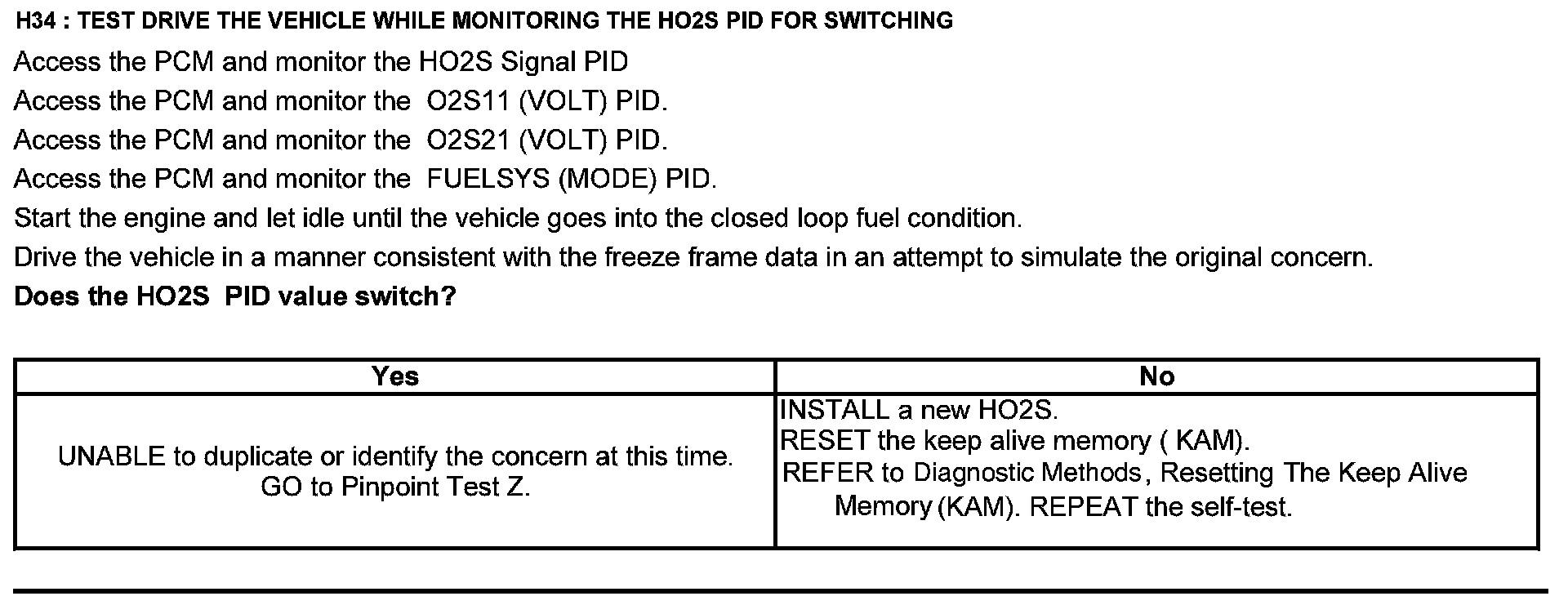

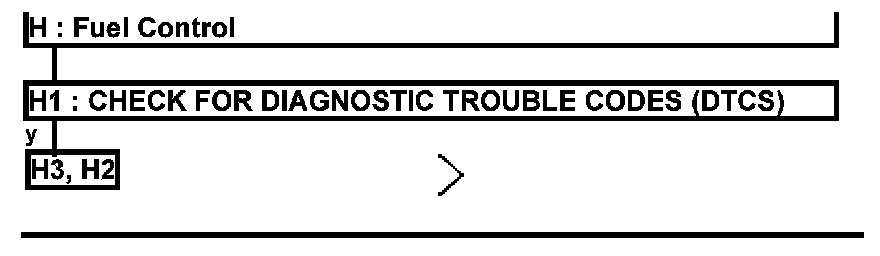

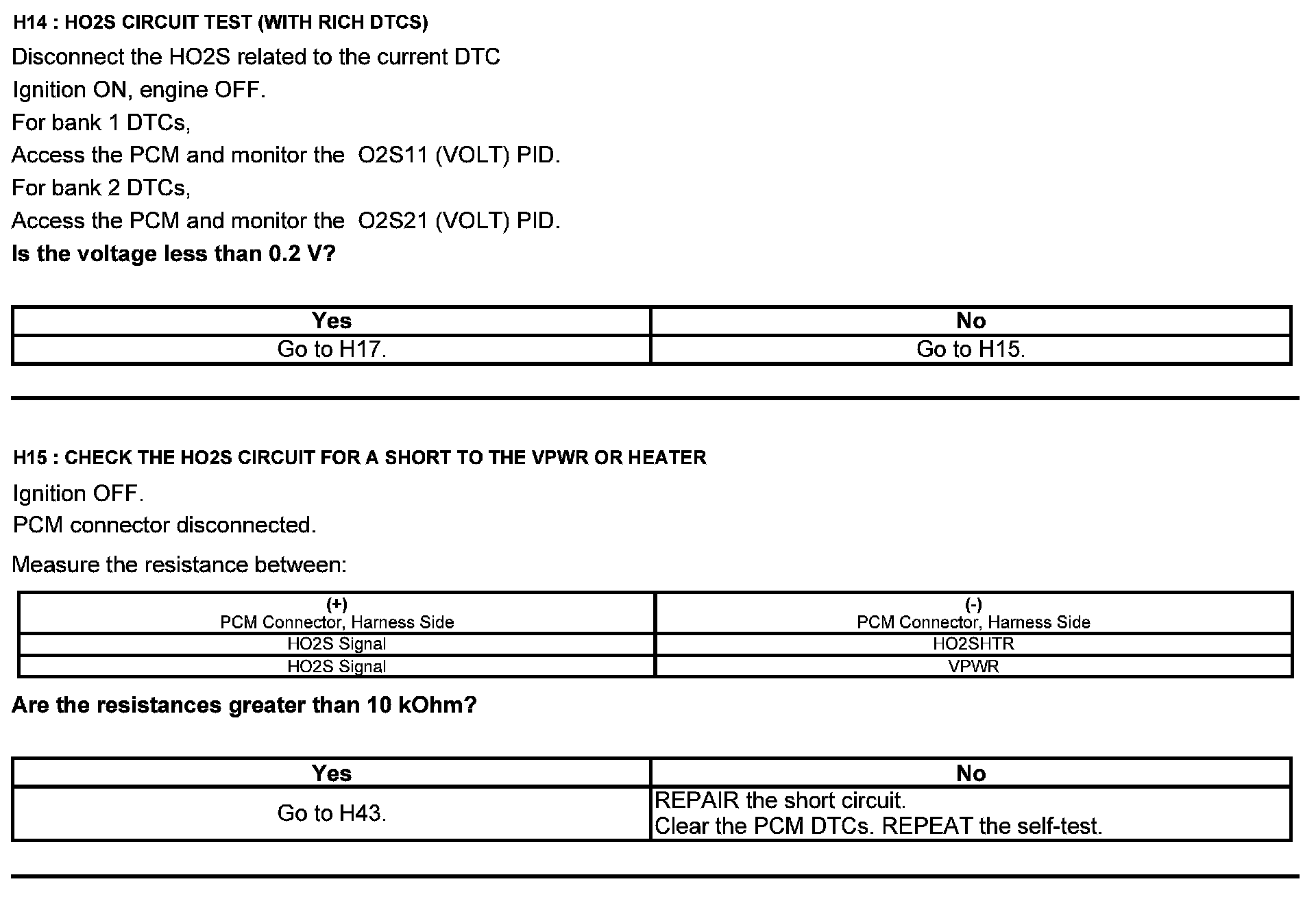

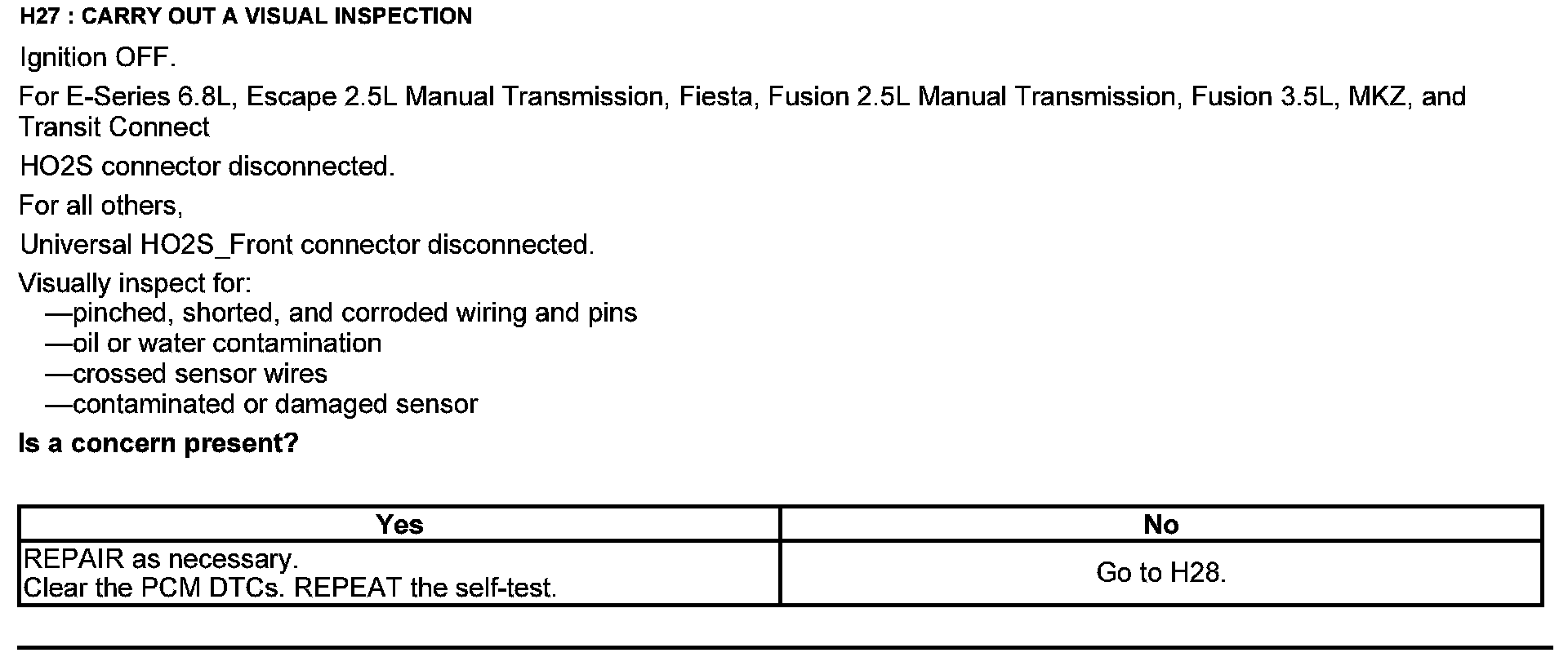

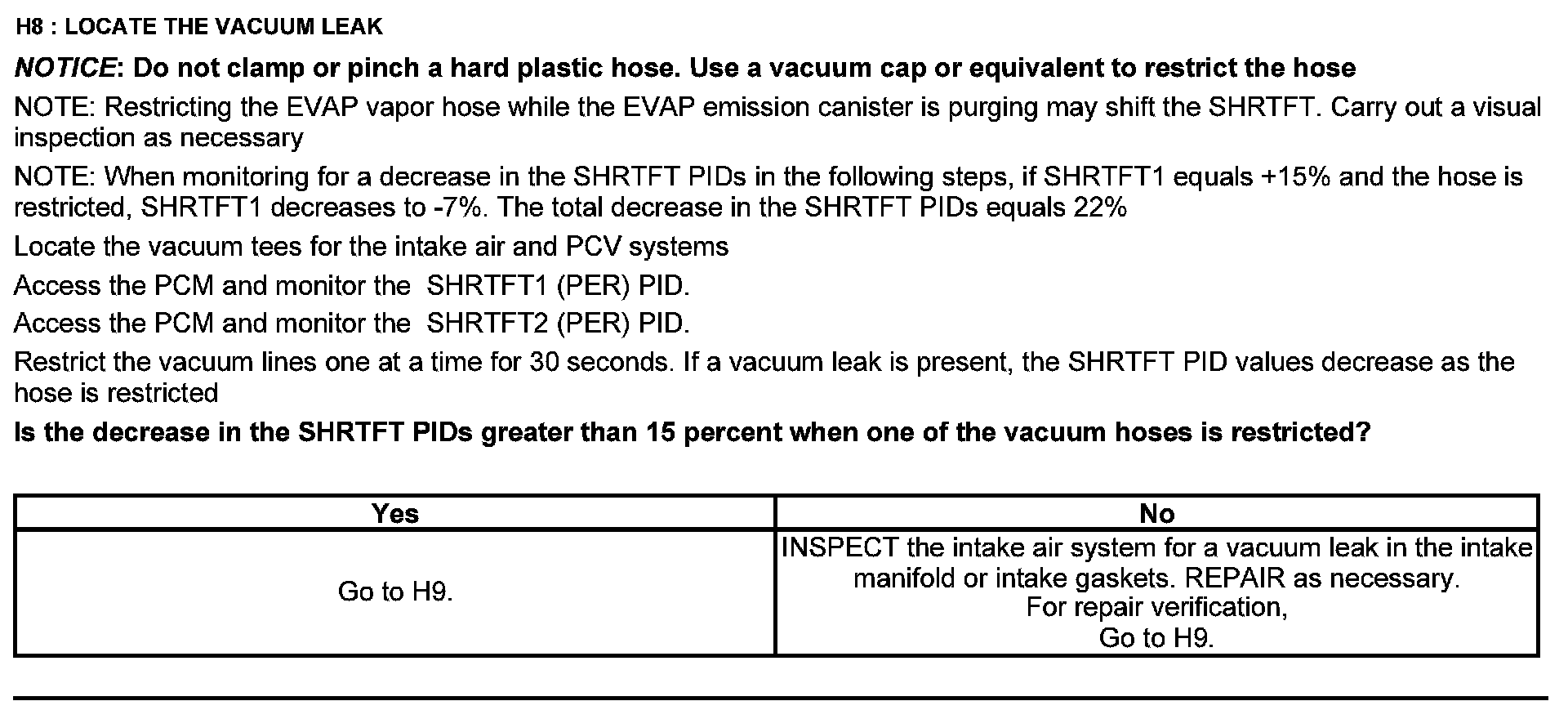

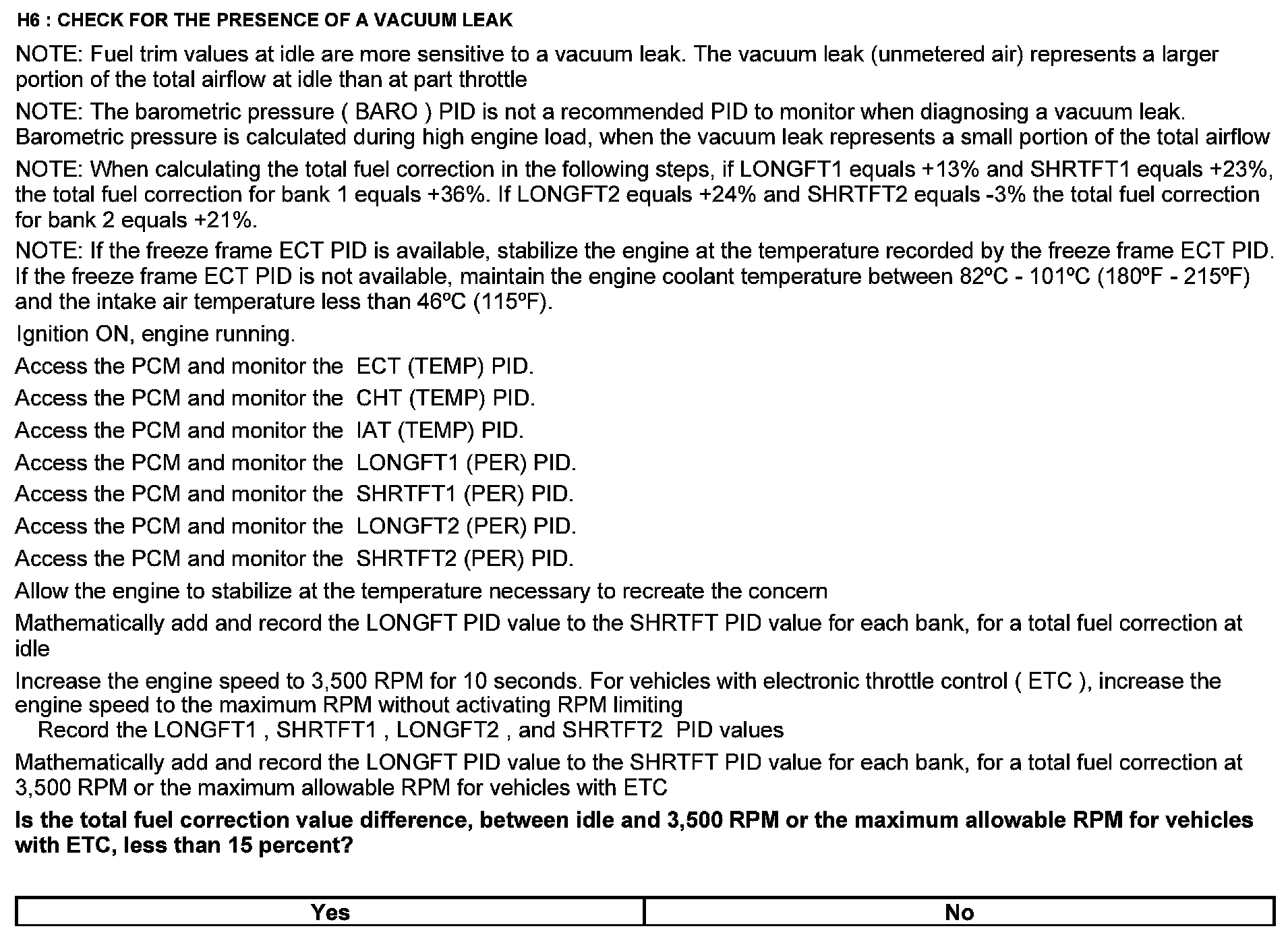

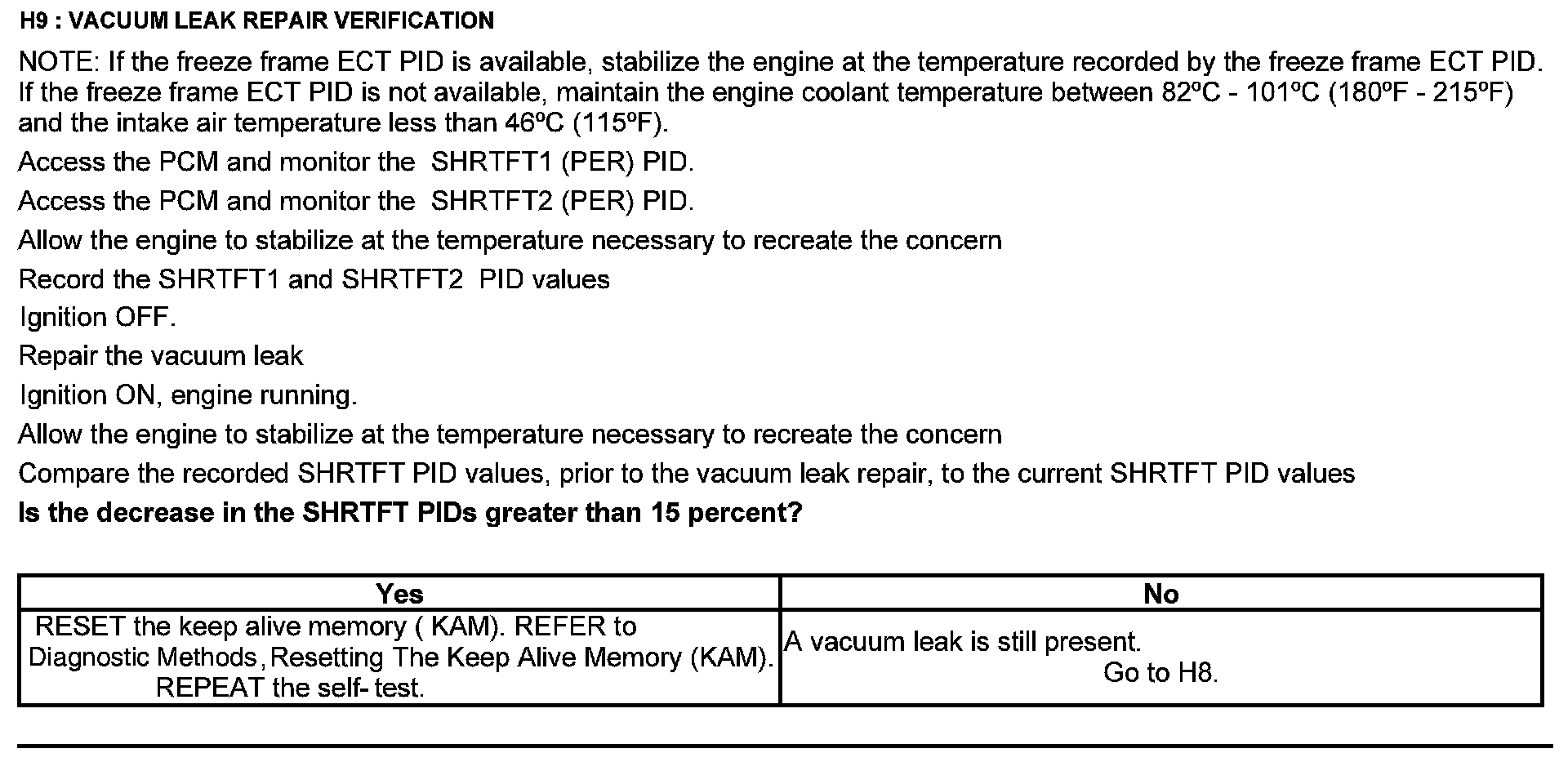

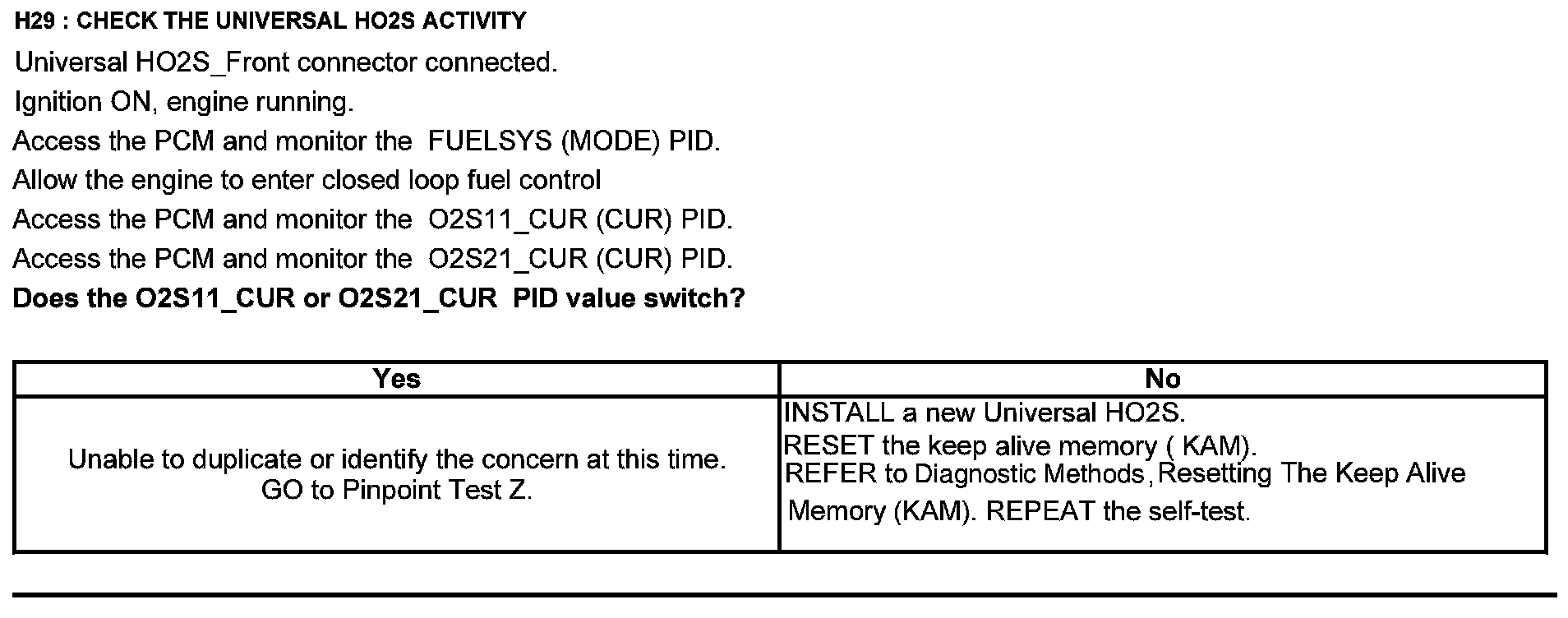

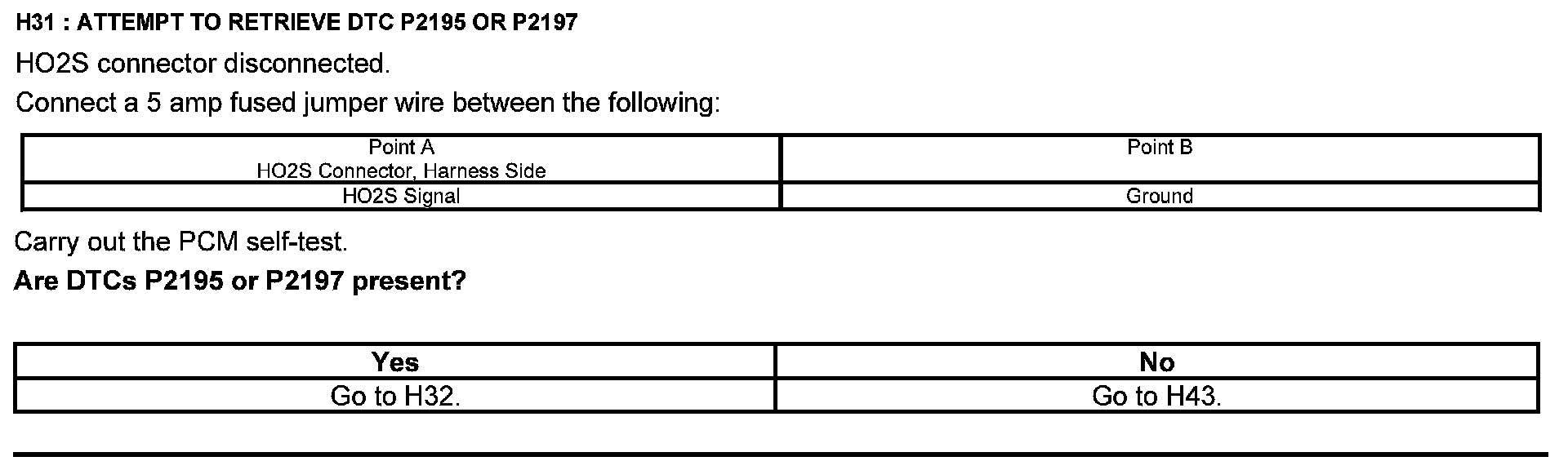

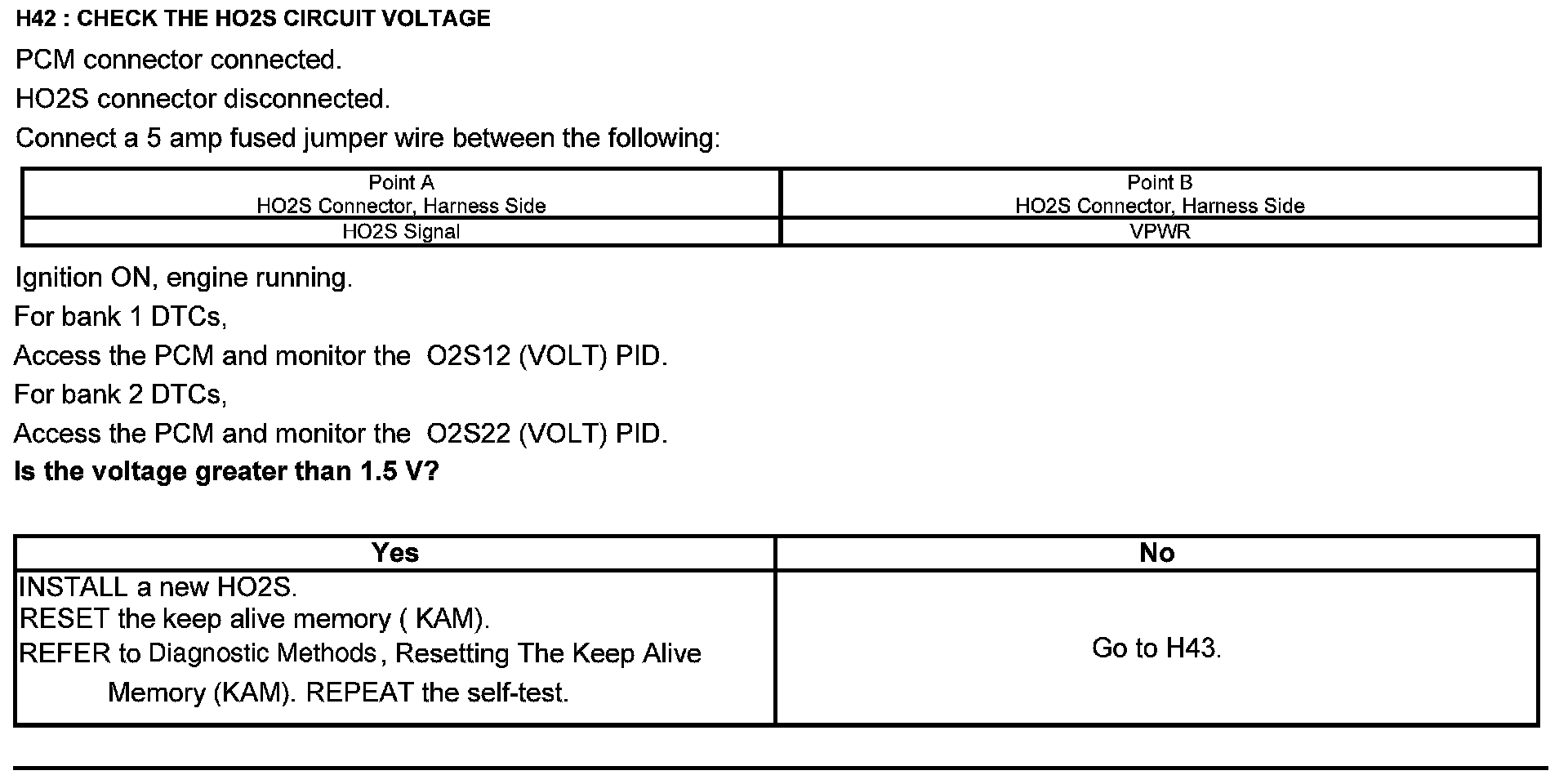

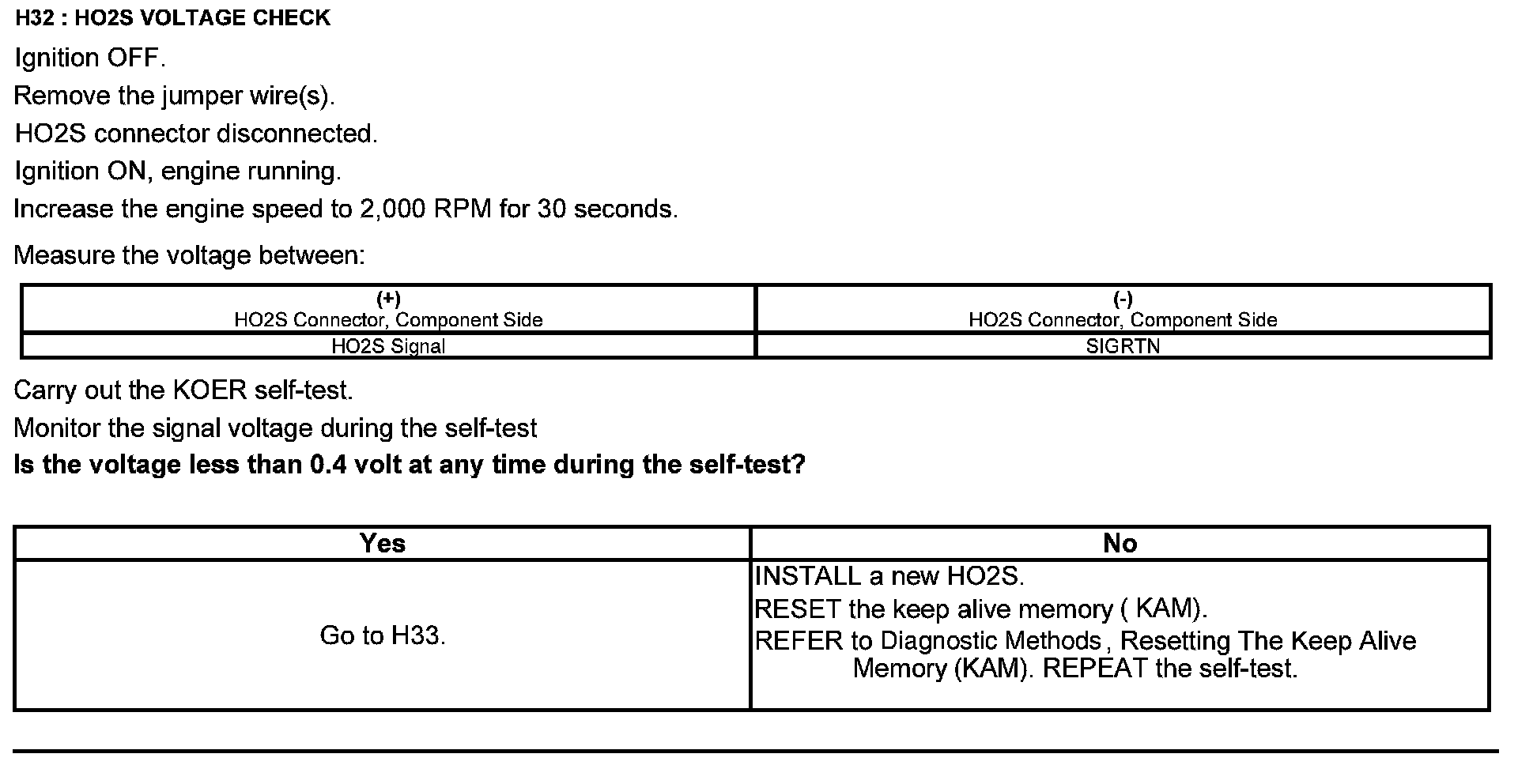

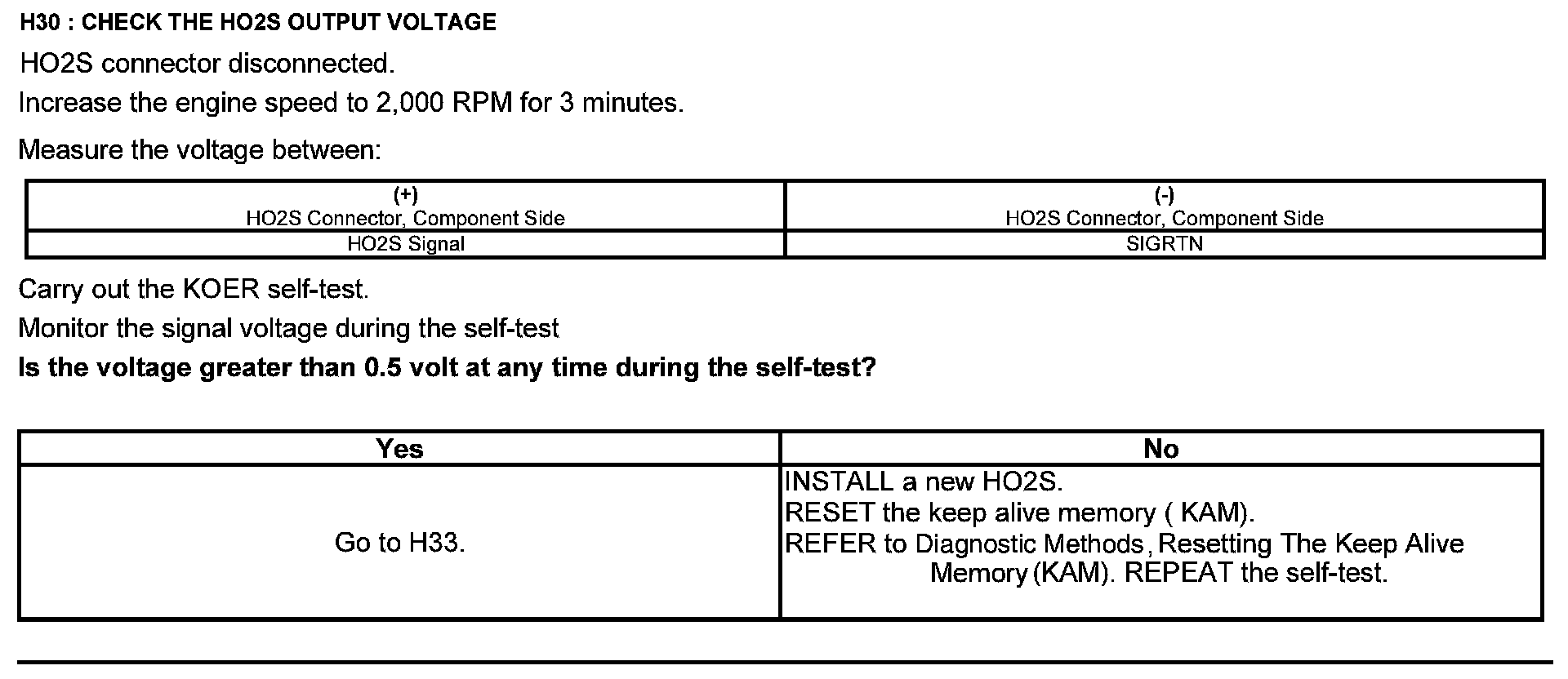

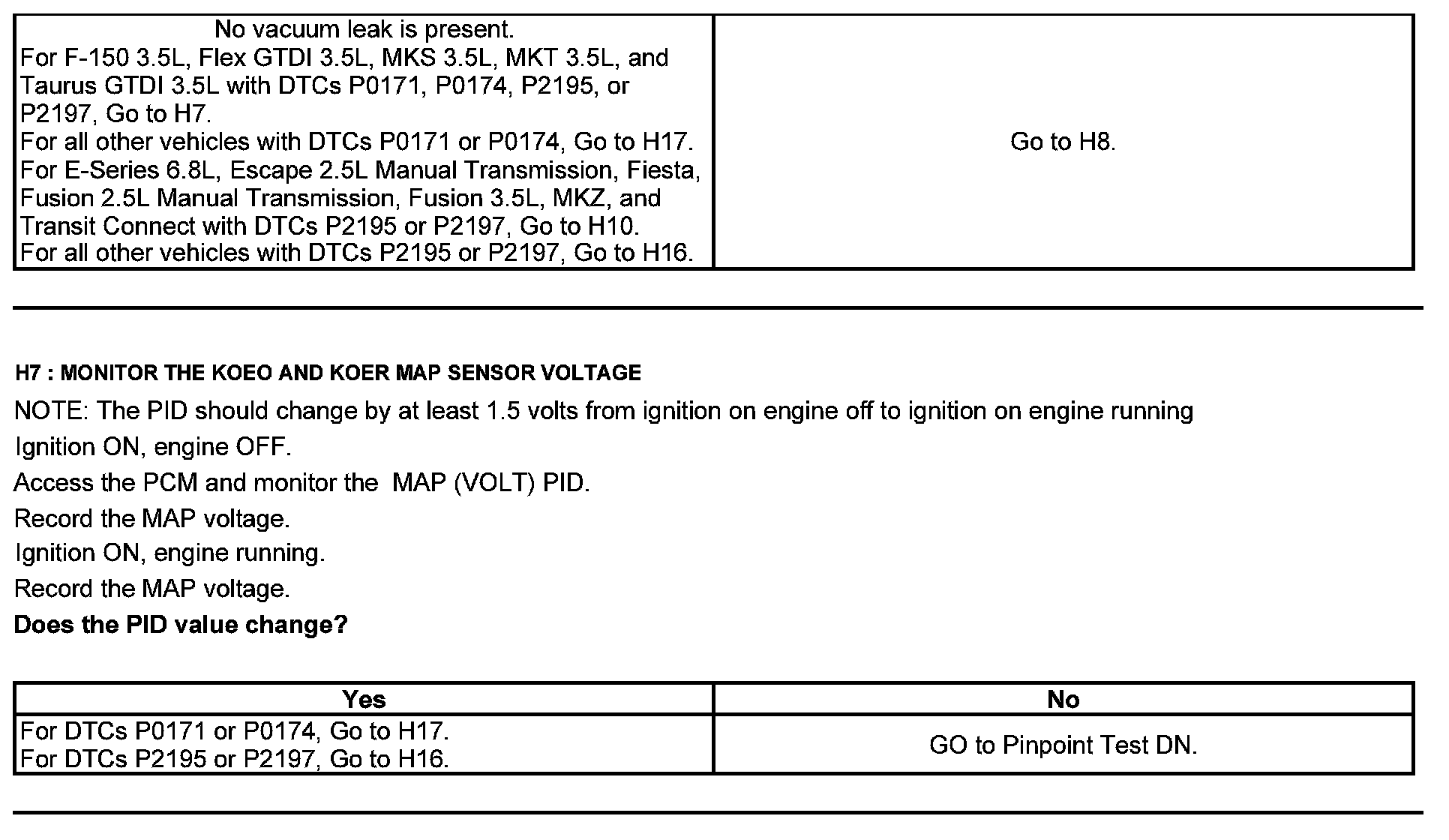

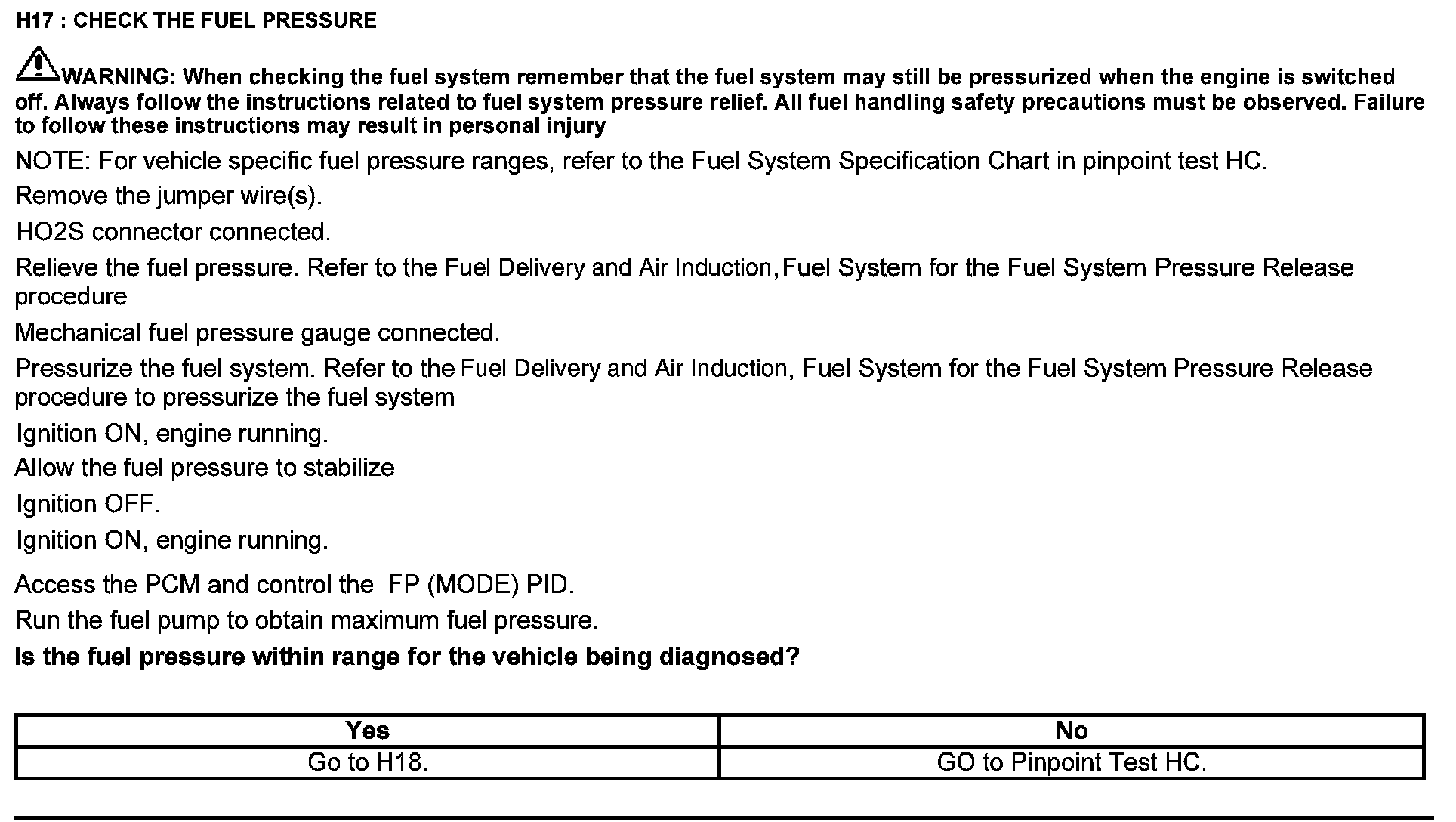

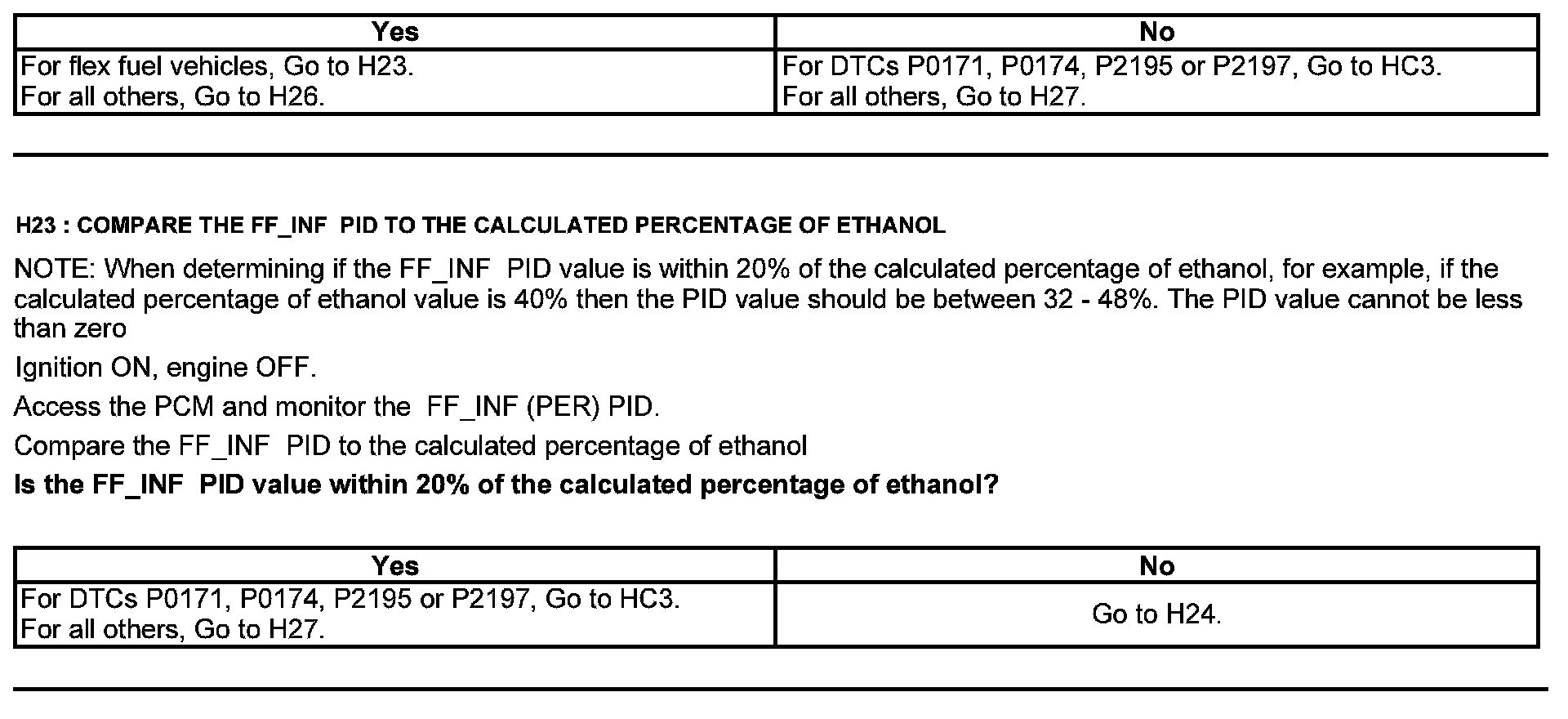

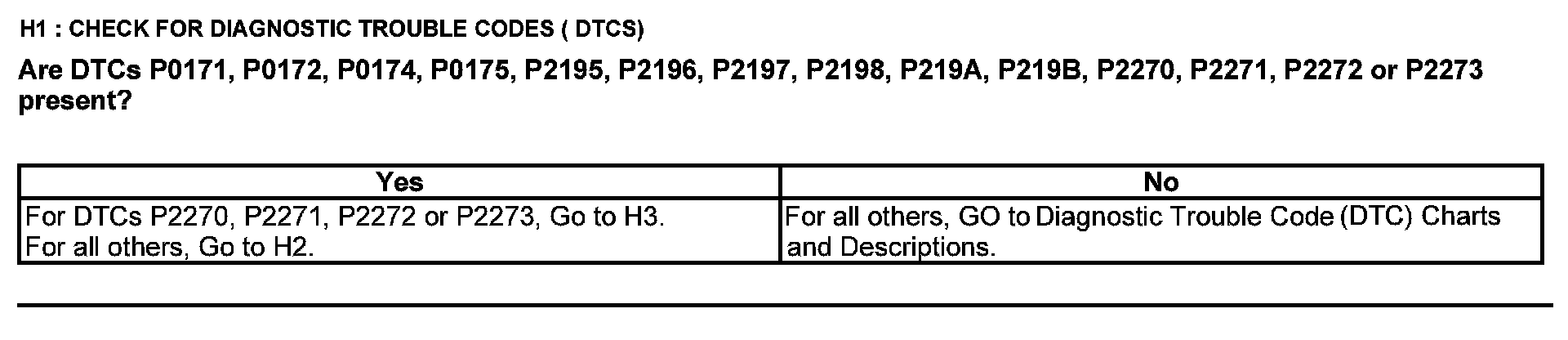

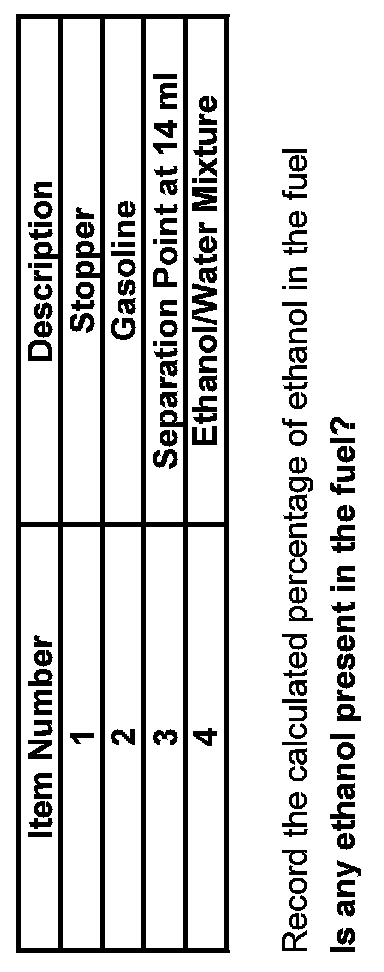

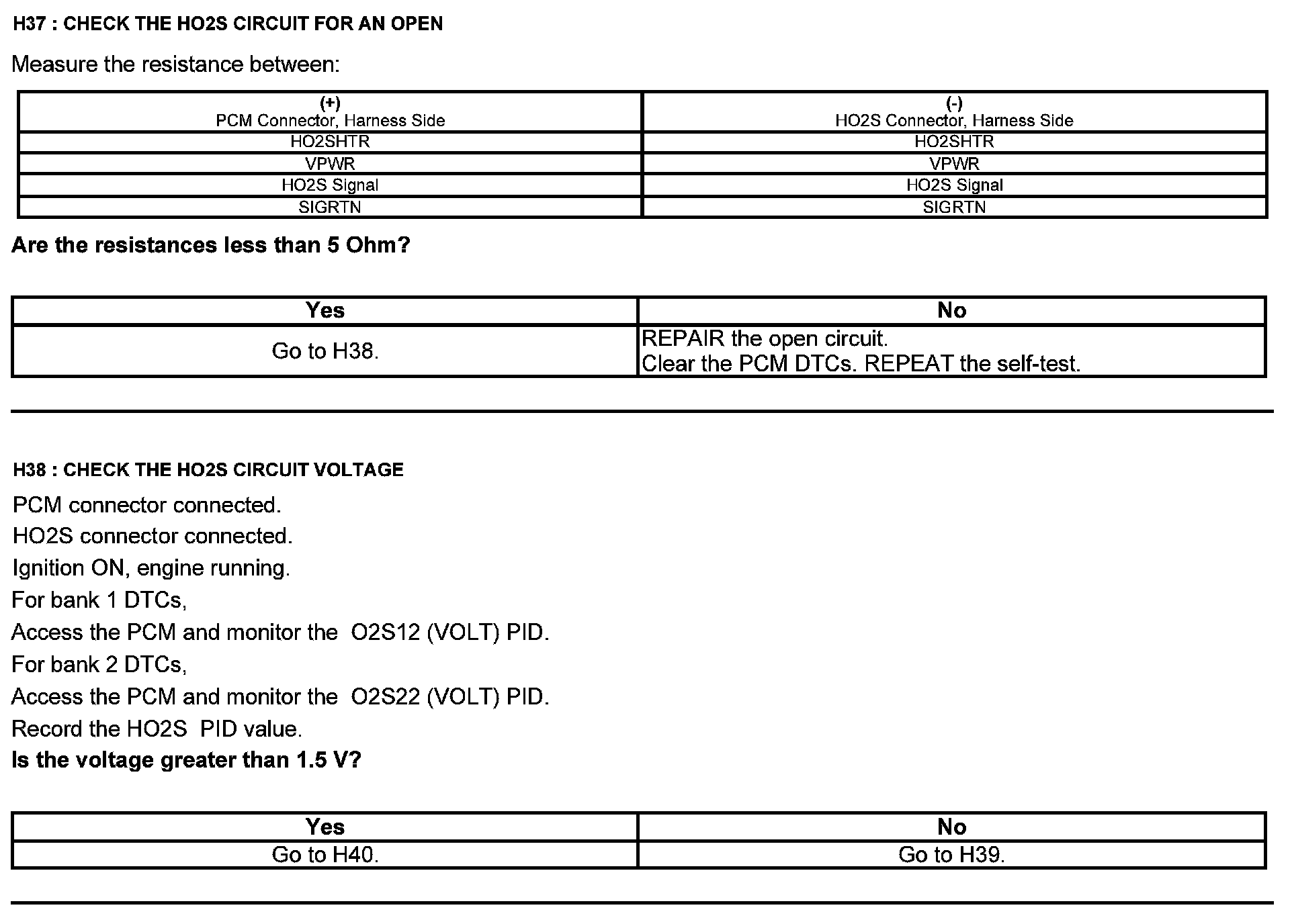

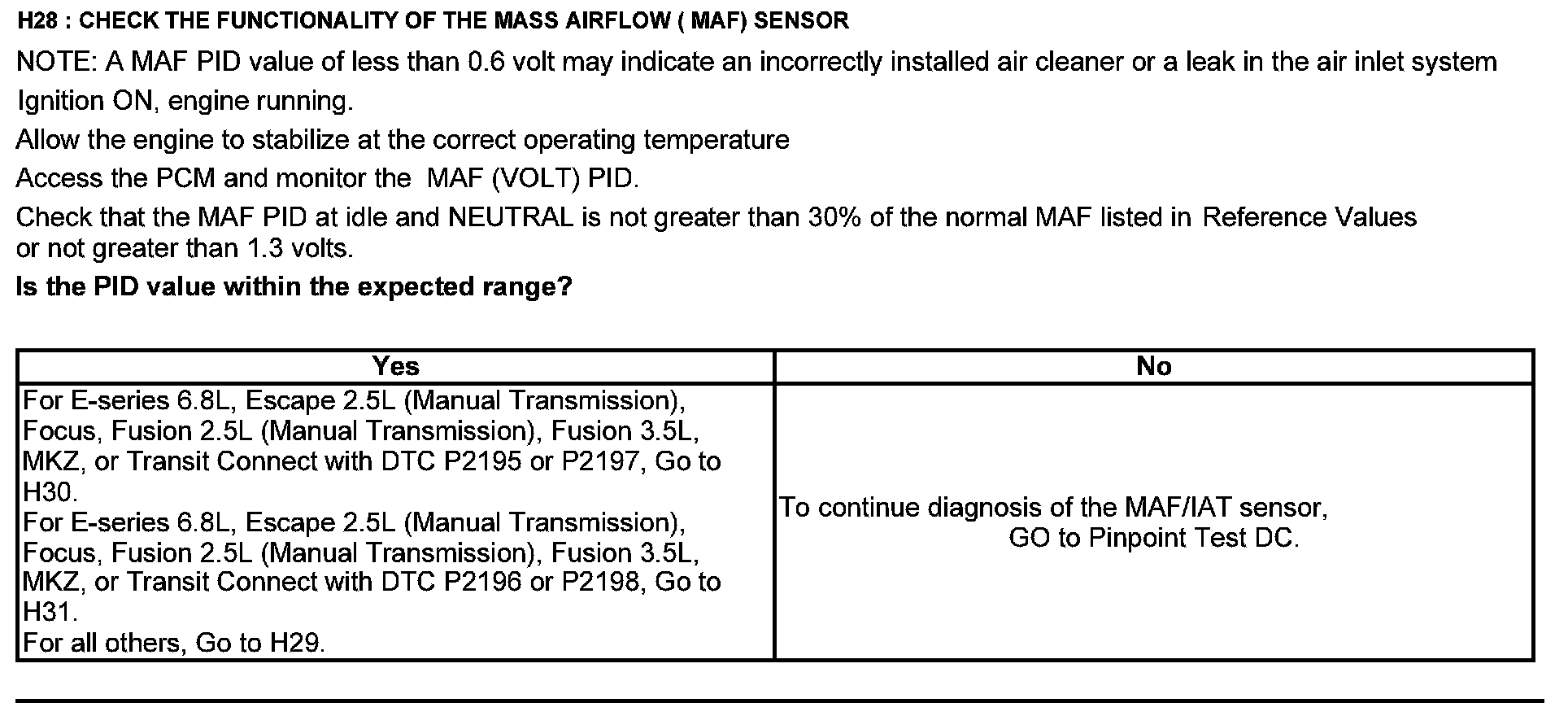

Fuel Control - All Others

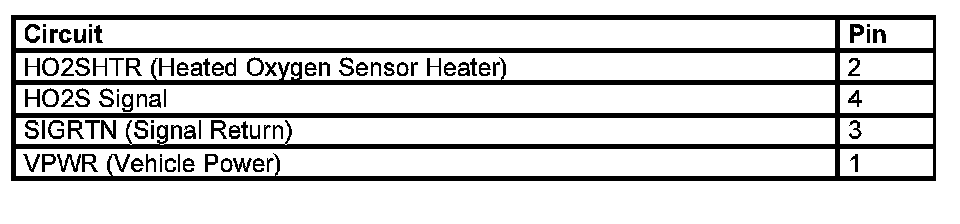

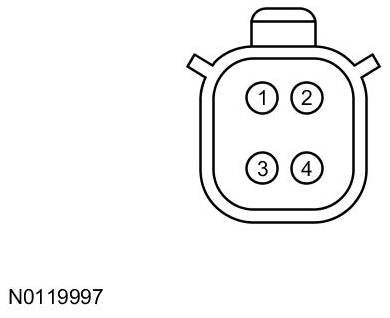

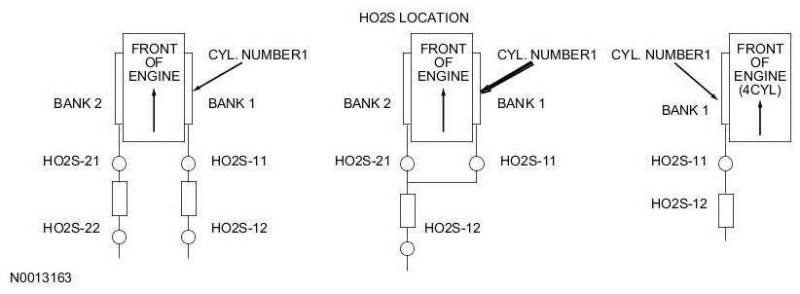

Heated Oxygen Sensor-Rear (HO2S-Rear) Connector - The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.





Harness Side
