All Others

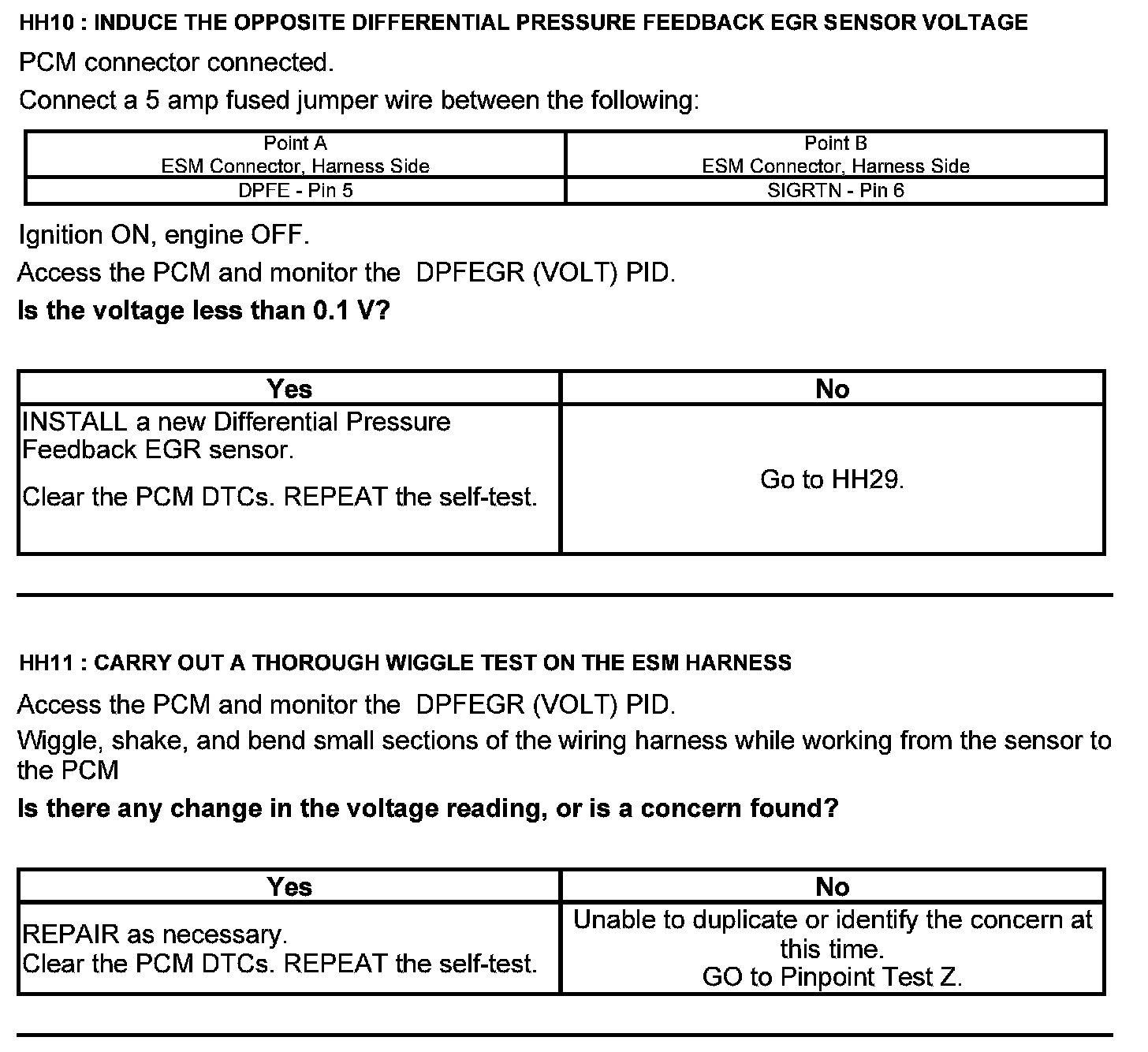

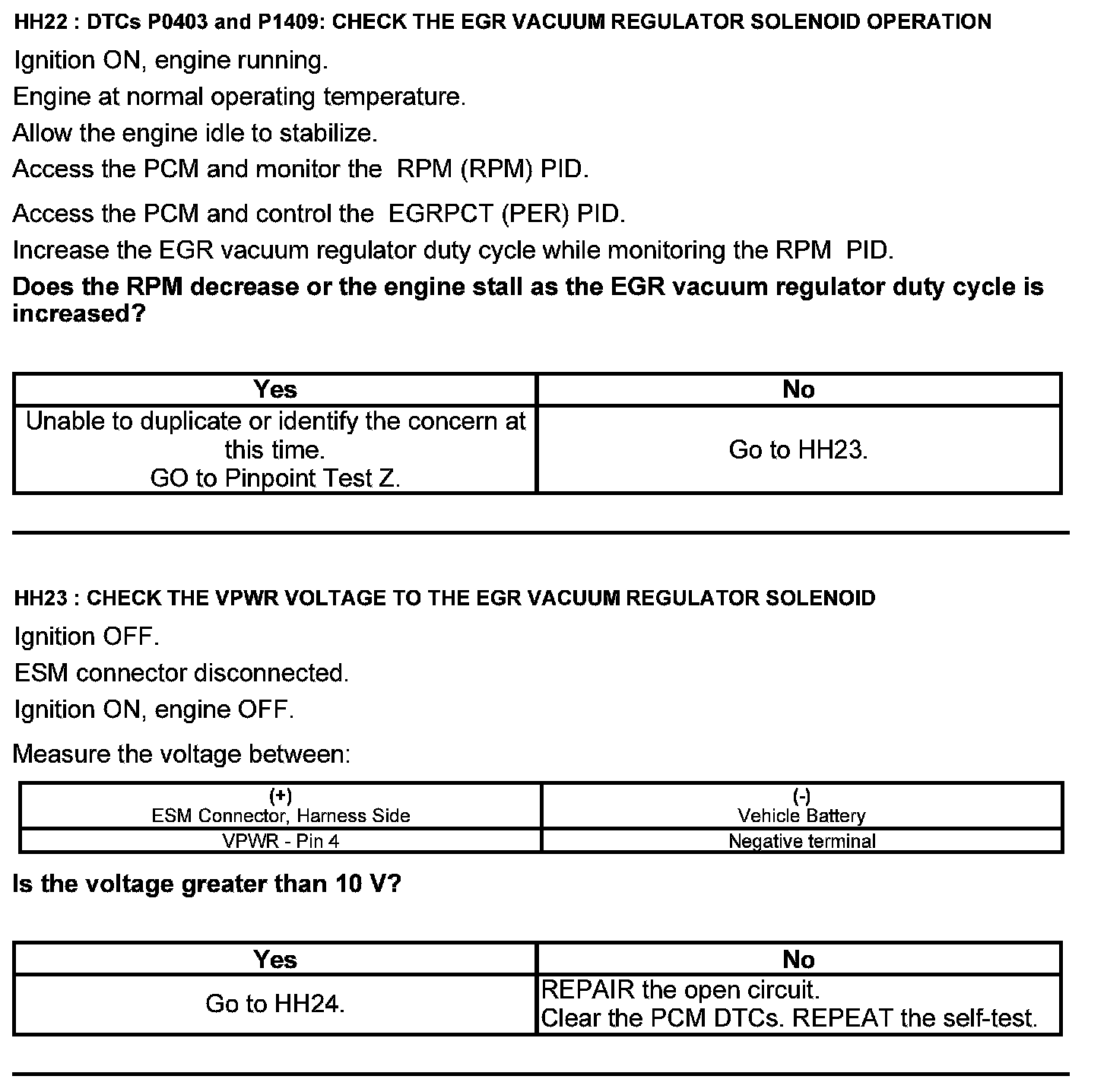

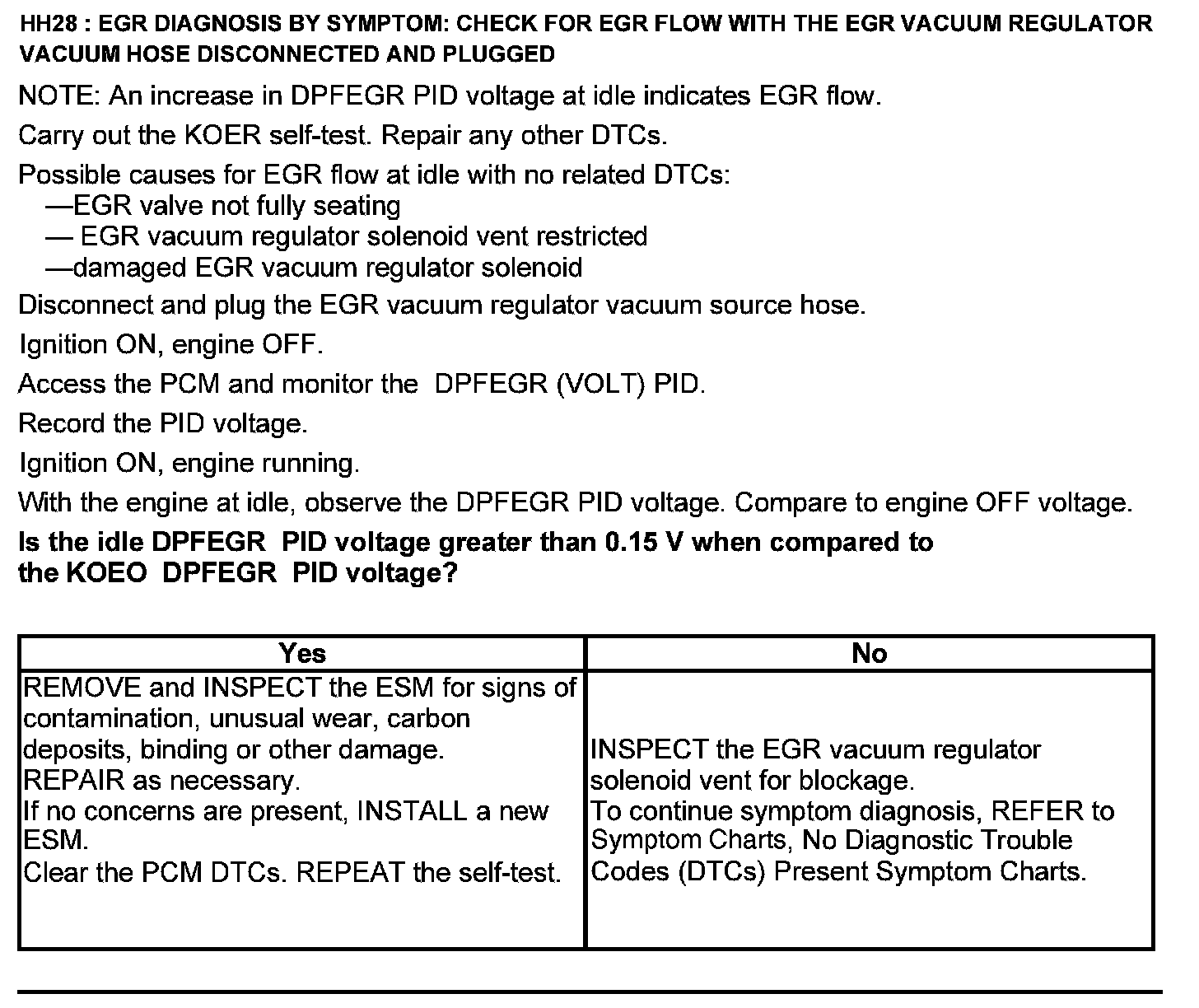

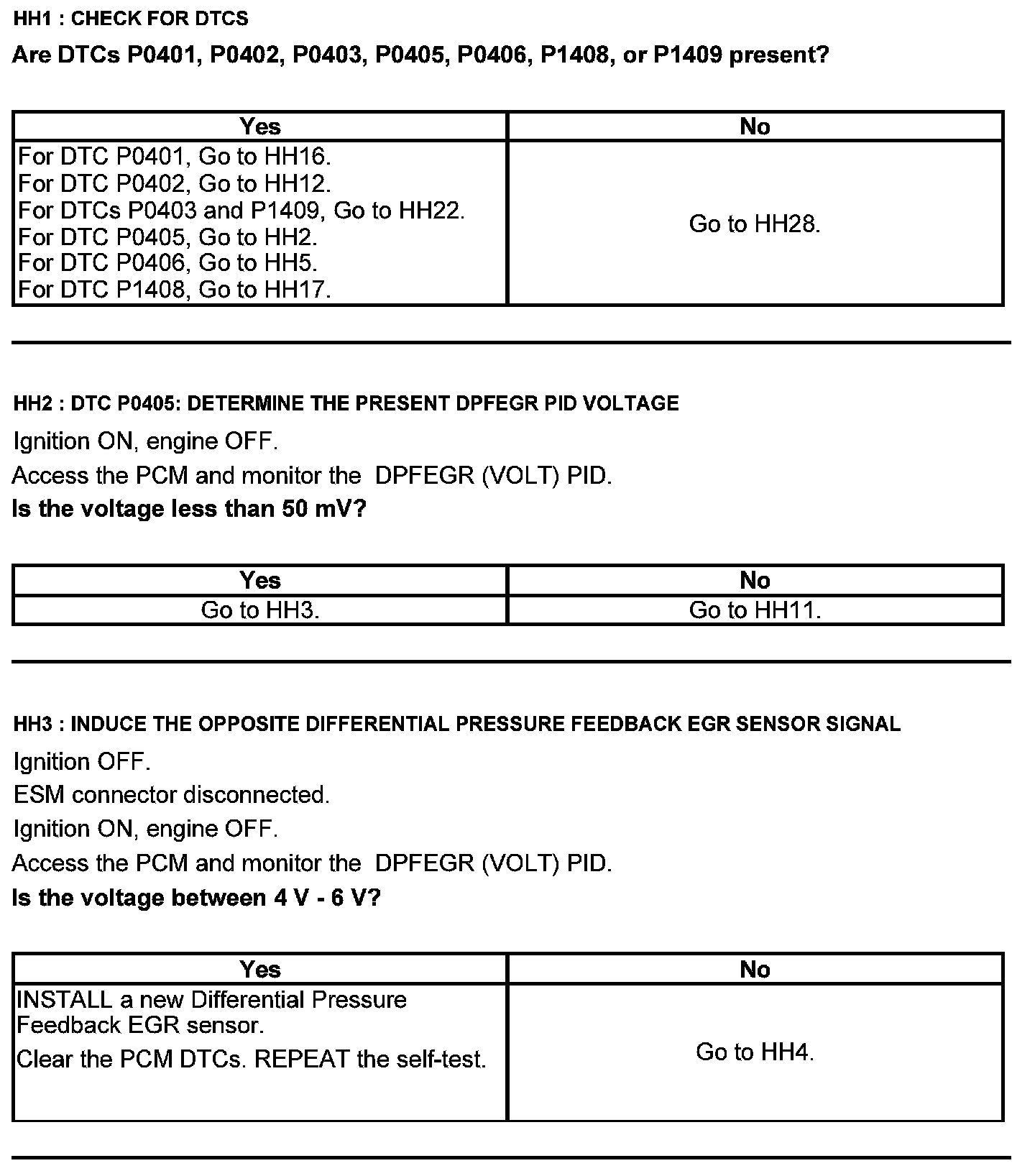

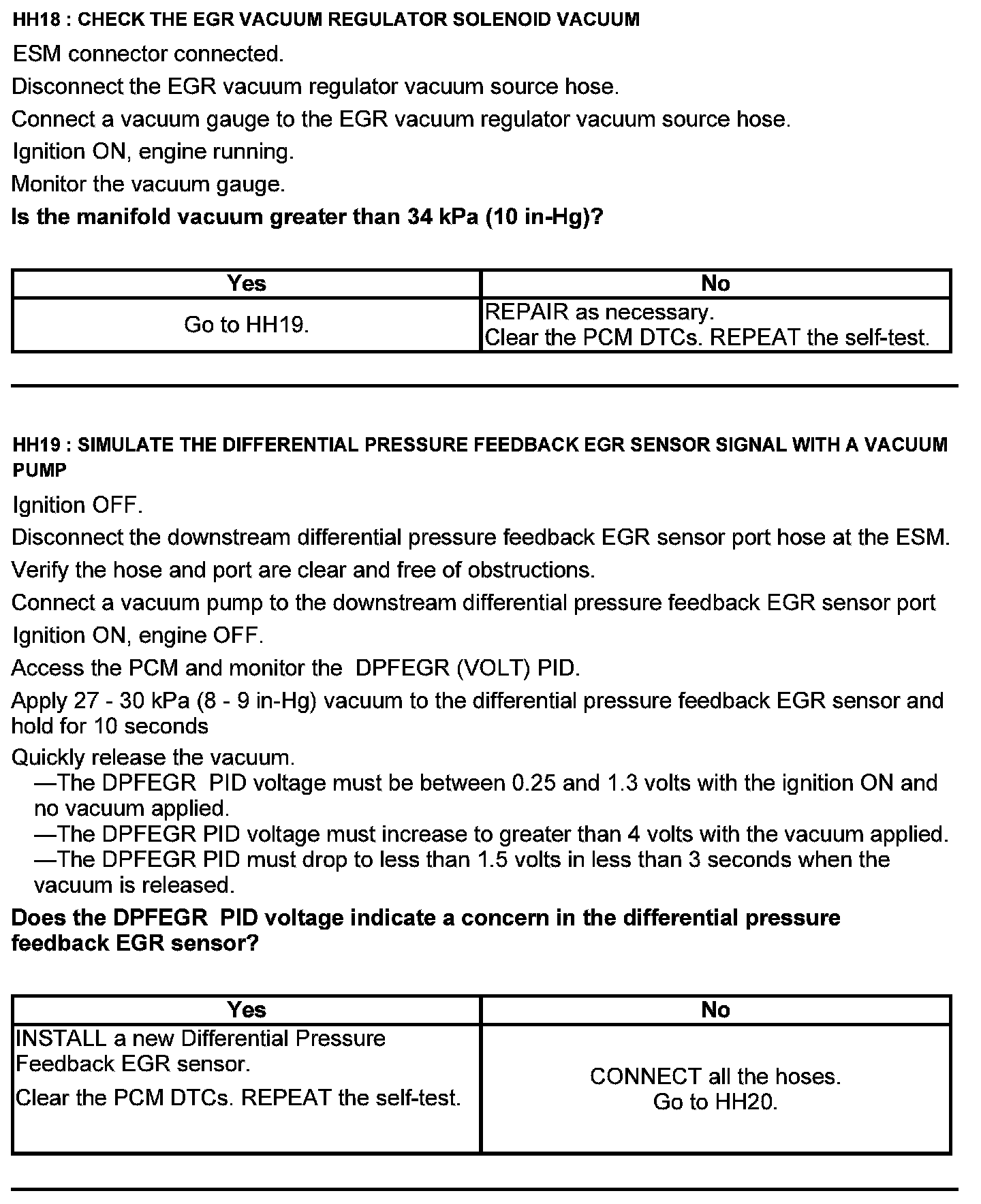

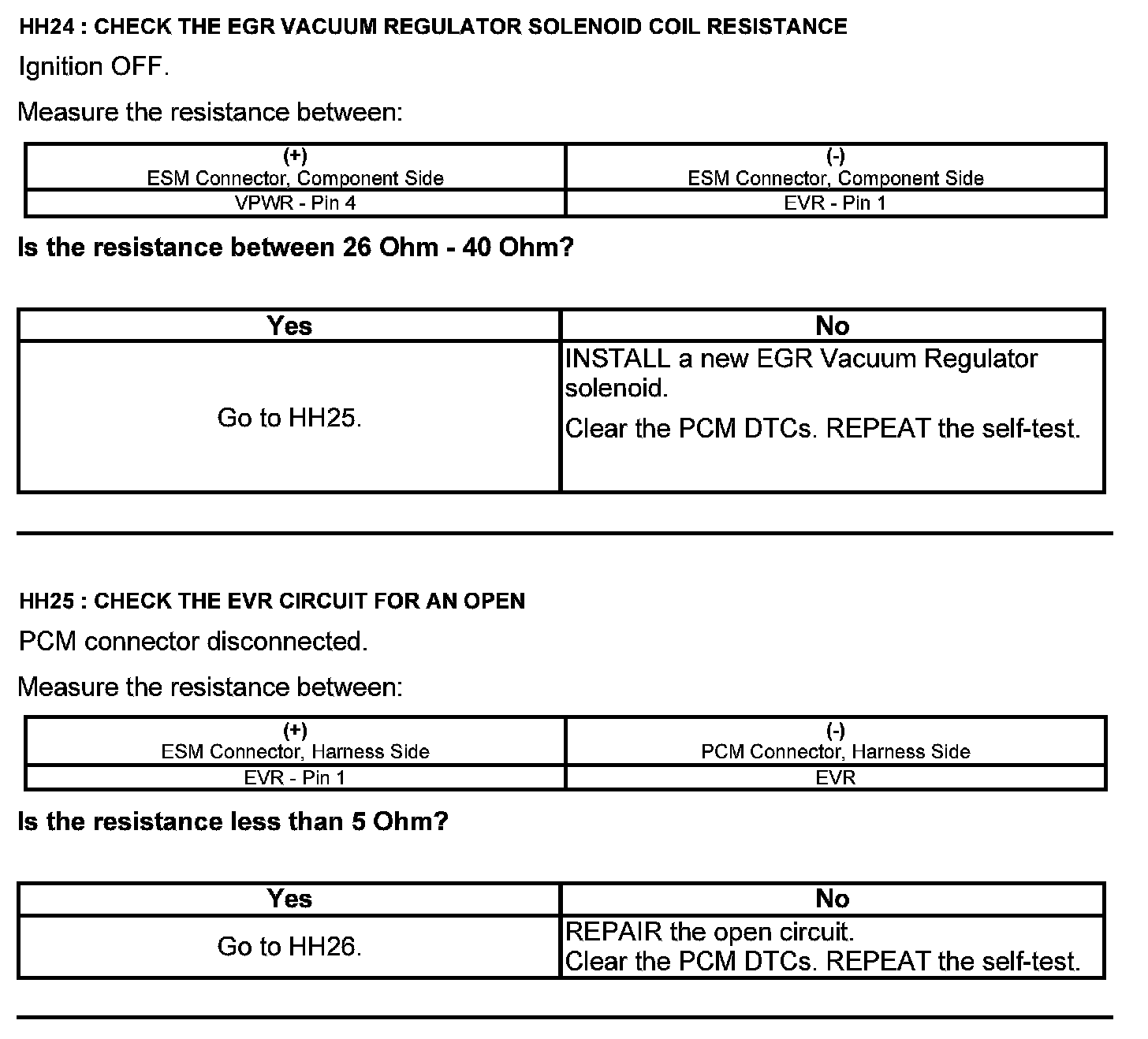

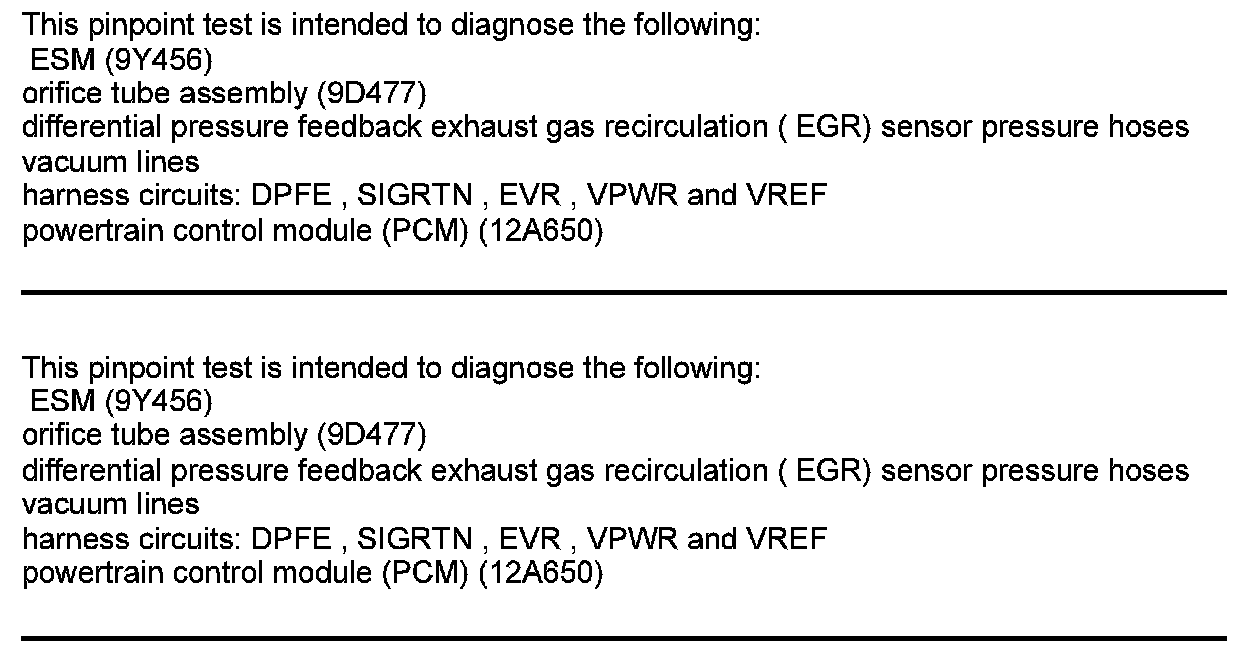

Exhaust Gas Recirculation System Module (ESM) - All Others

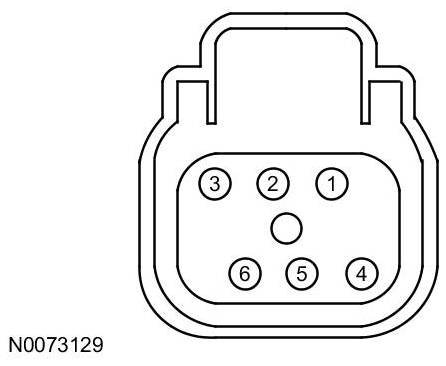

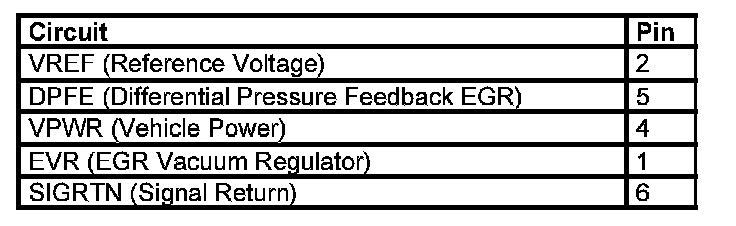

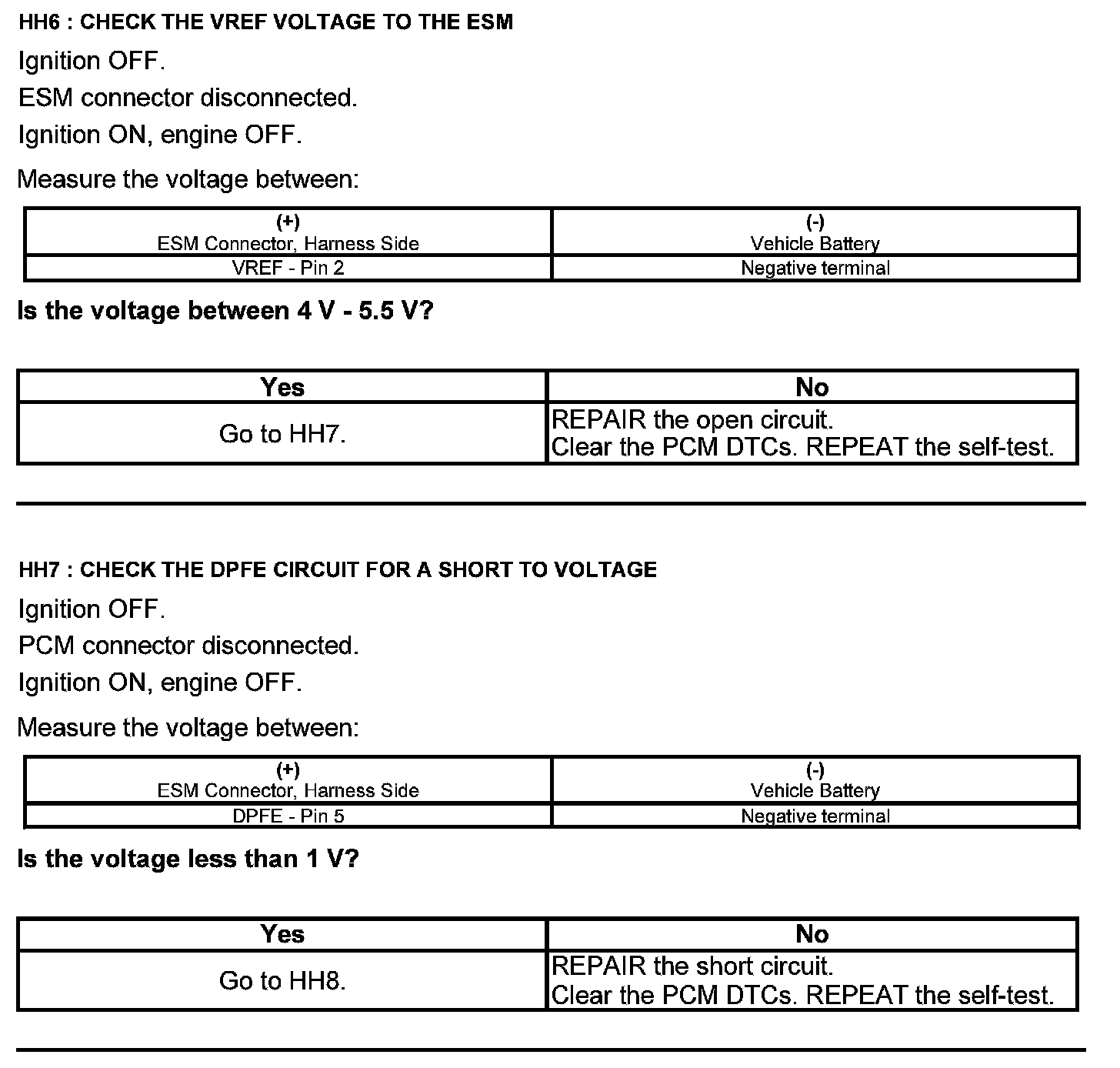

EGR System Module (ESM) Connector





Harness Side
