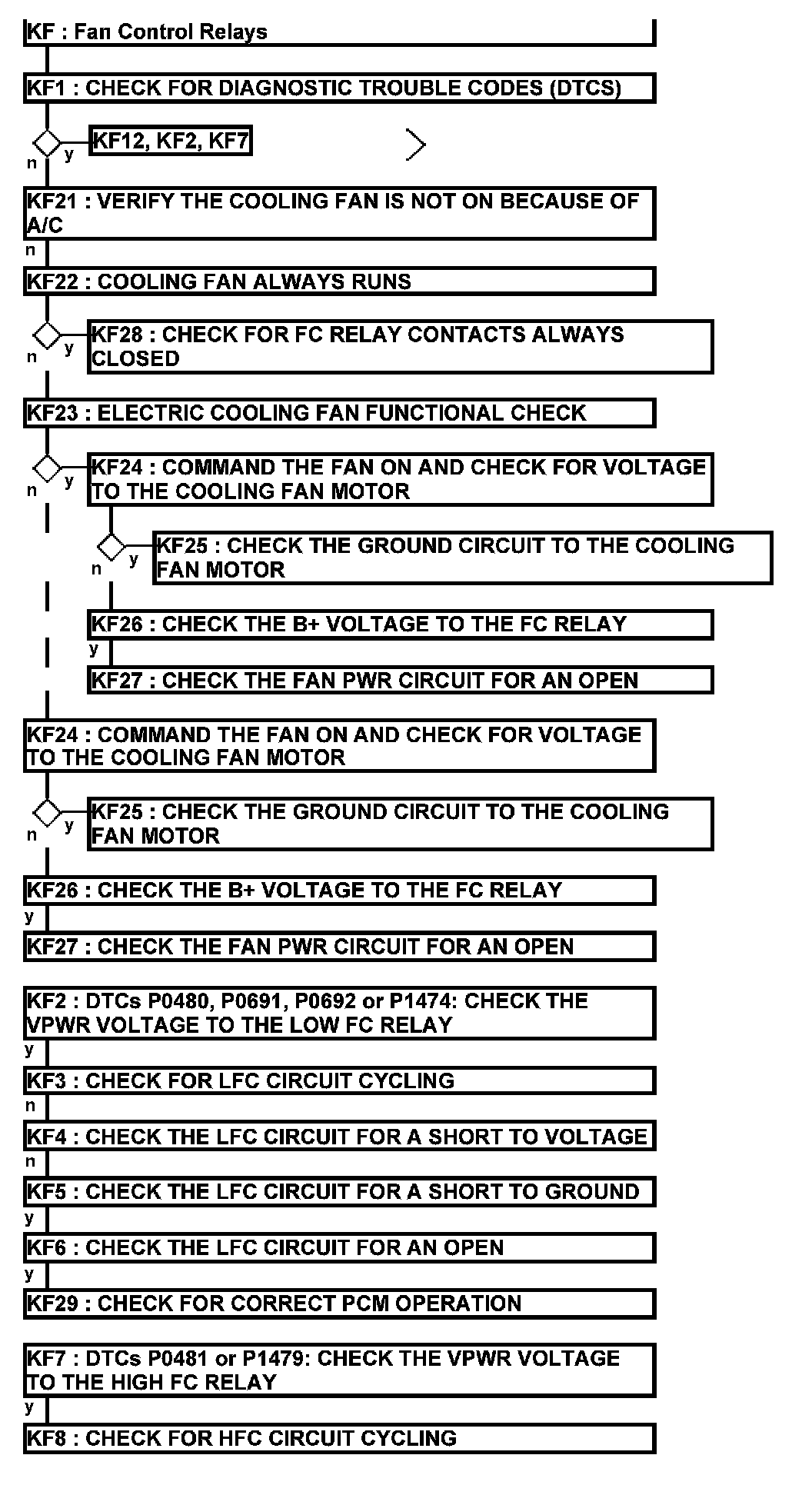

Test KF: Fan Control Relays
Fan Control Relays

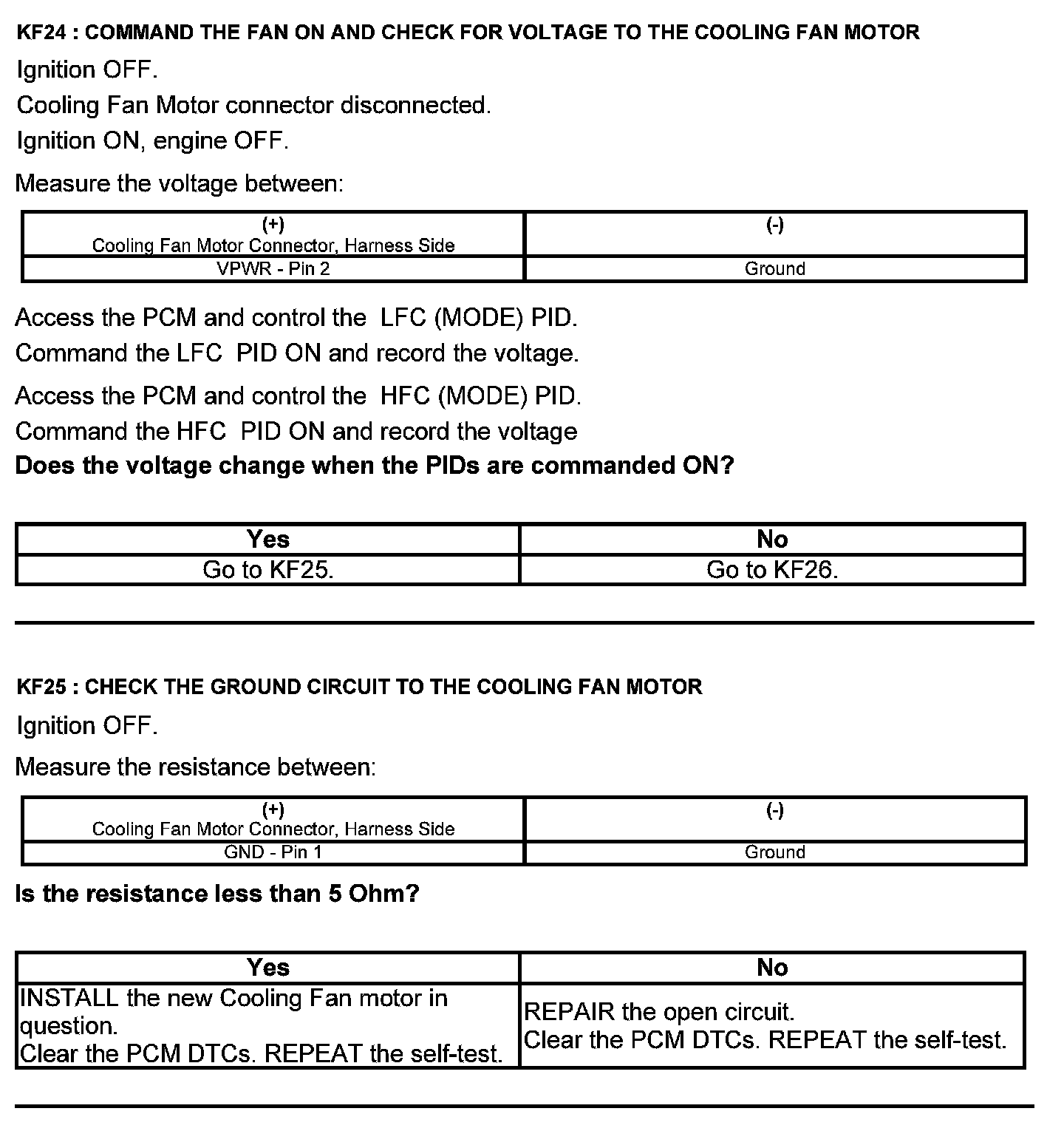

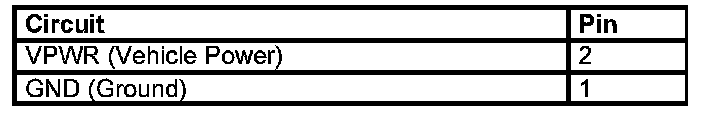

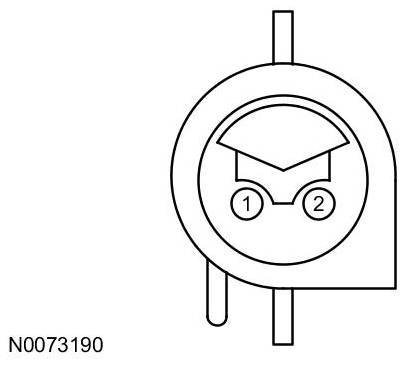

Cooling Fan Motor Connector
Harness Side

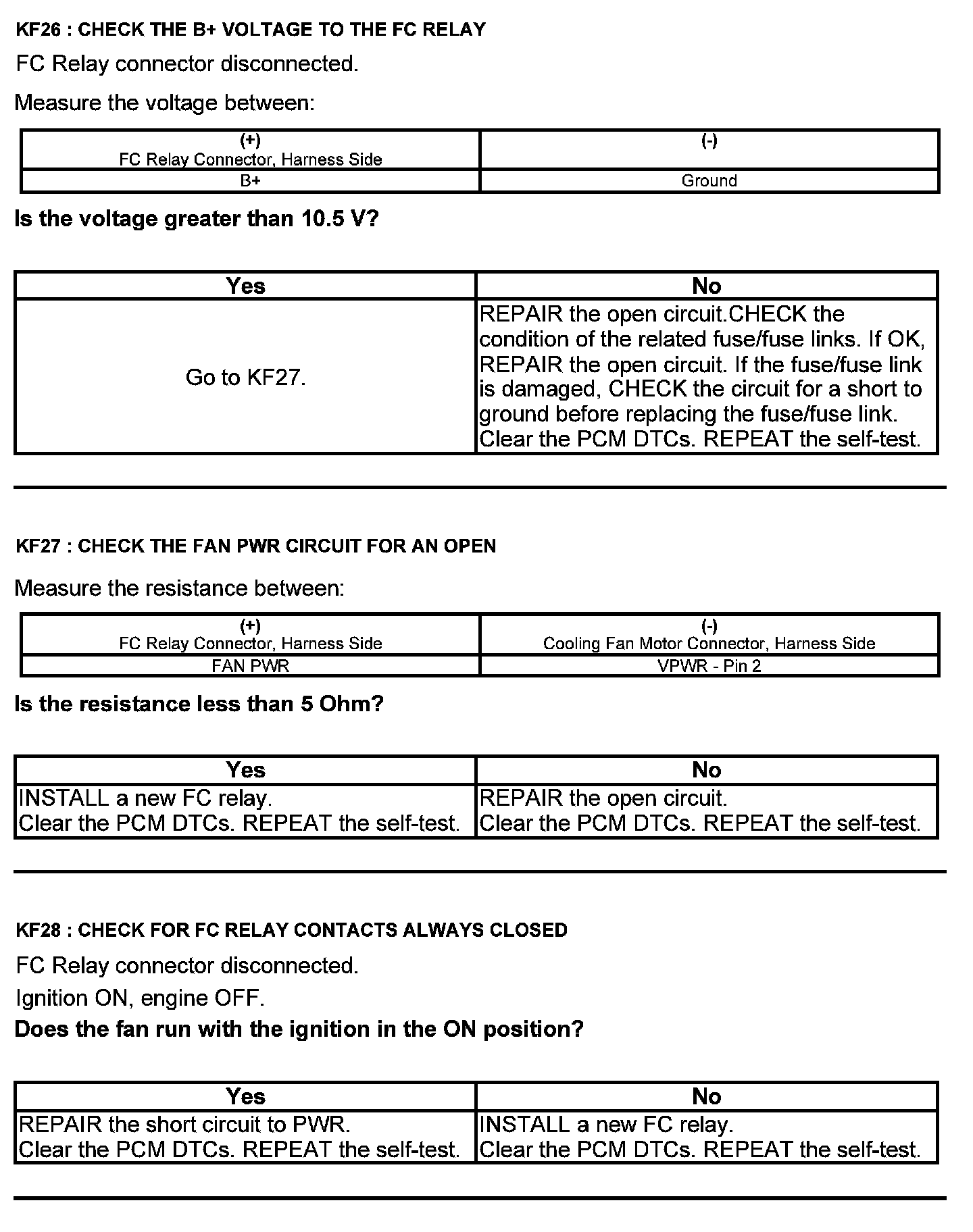

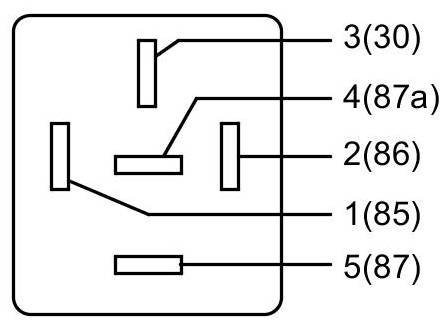

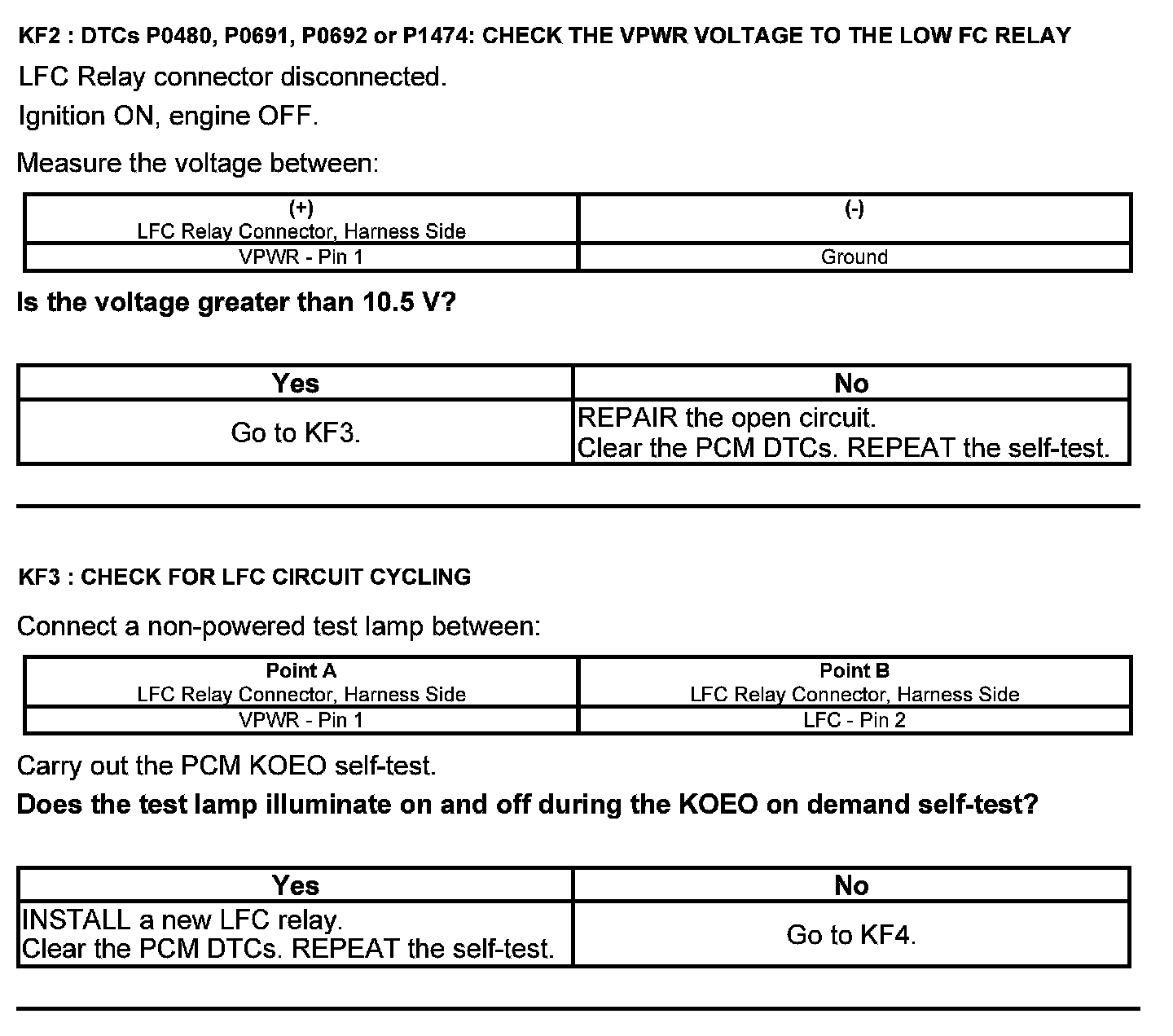

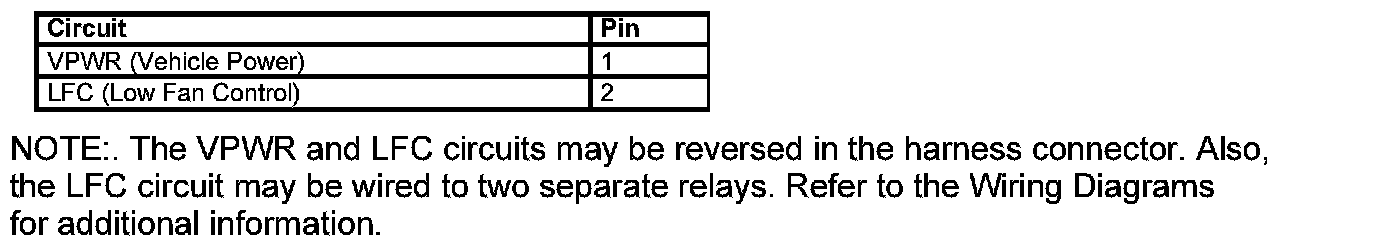

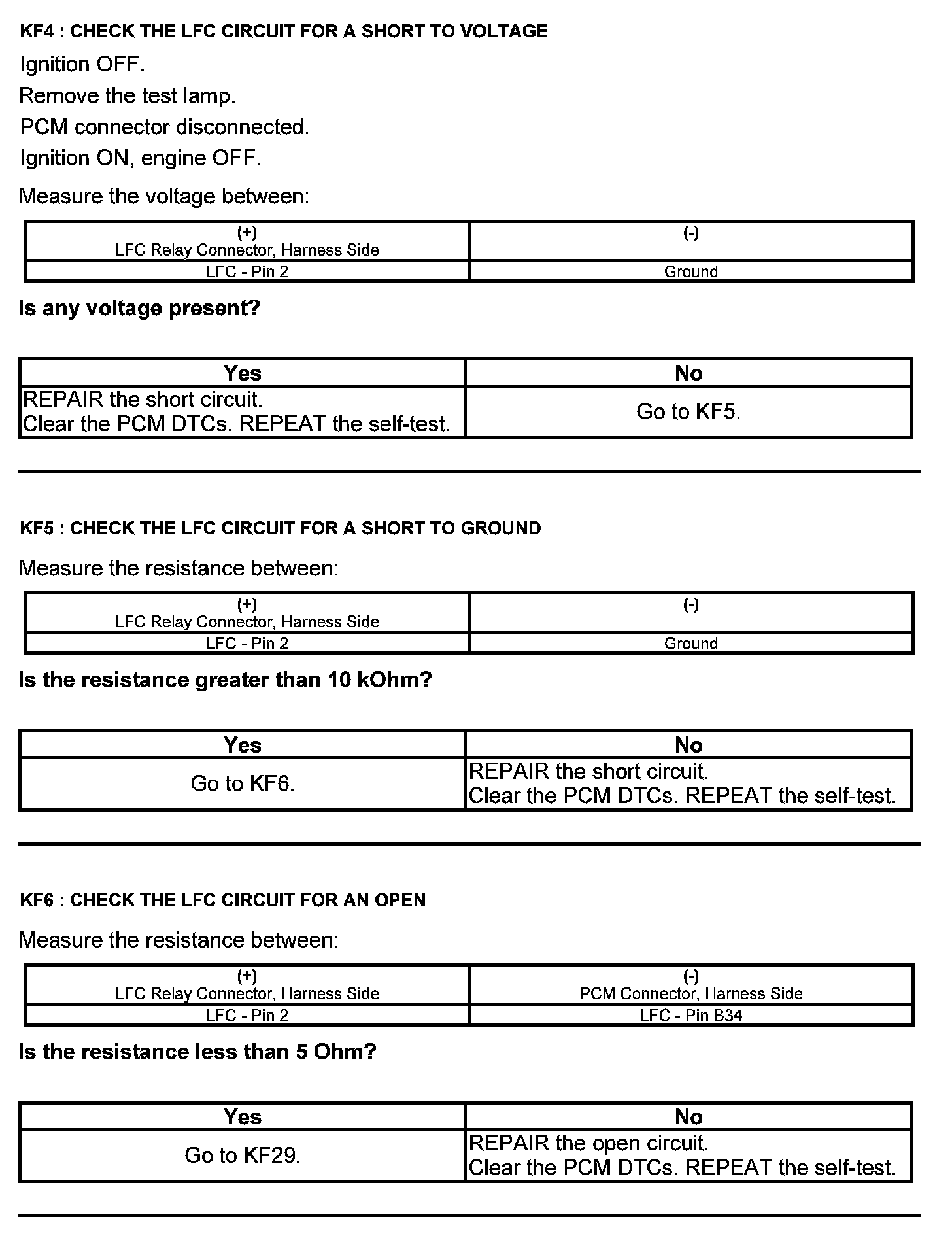

Low Fan Control (LFC) Relay Connector
Harness Side
Component side

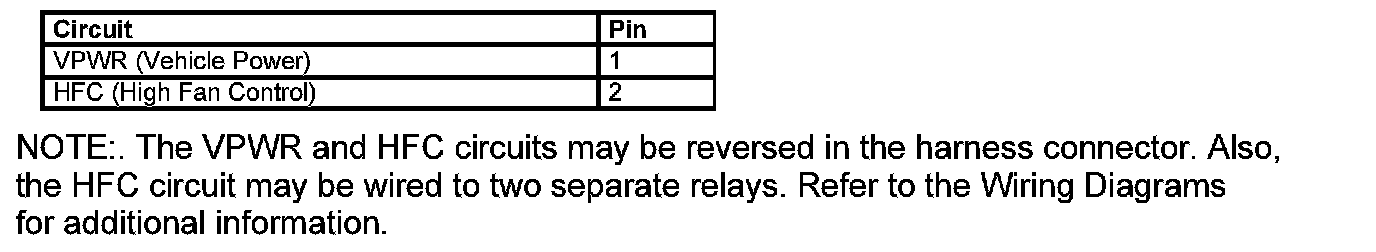

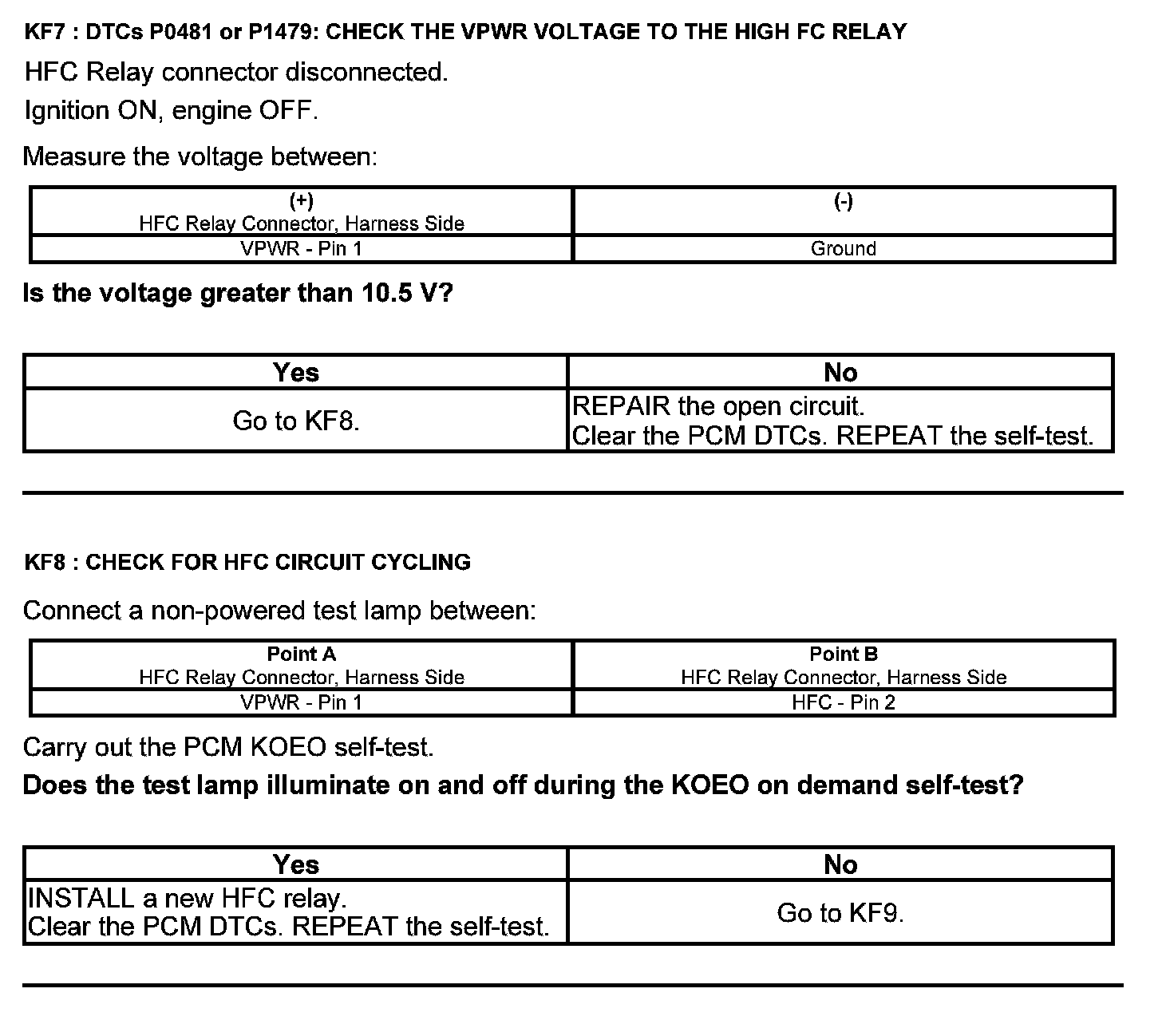

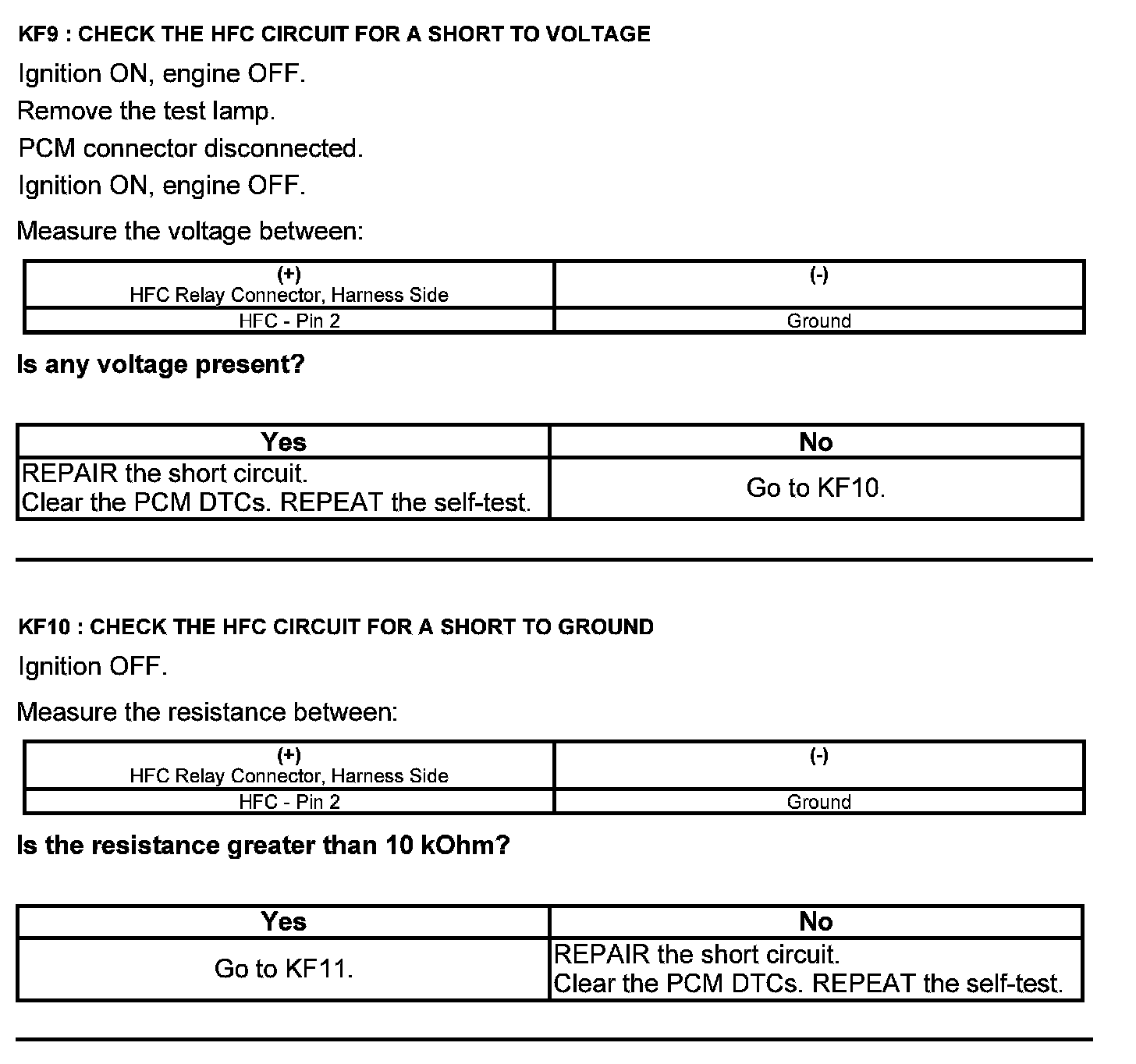

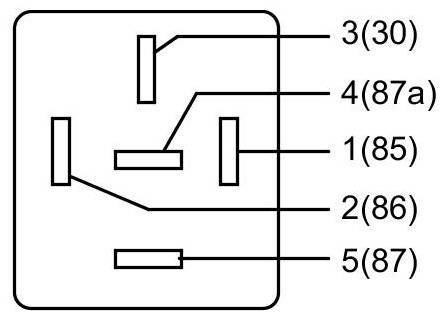

High Fan Control (HFC) Relay Connector
Harness Side
Component side

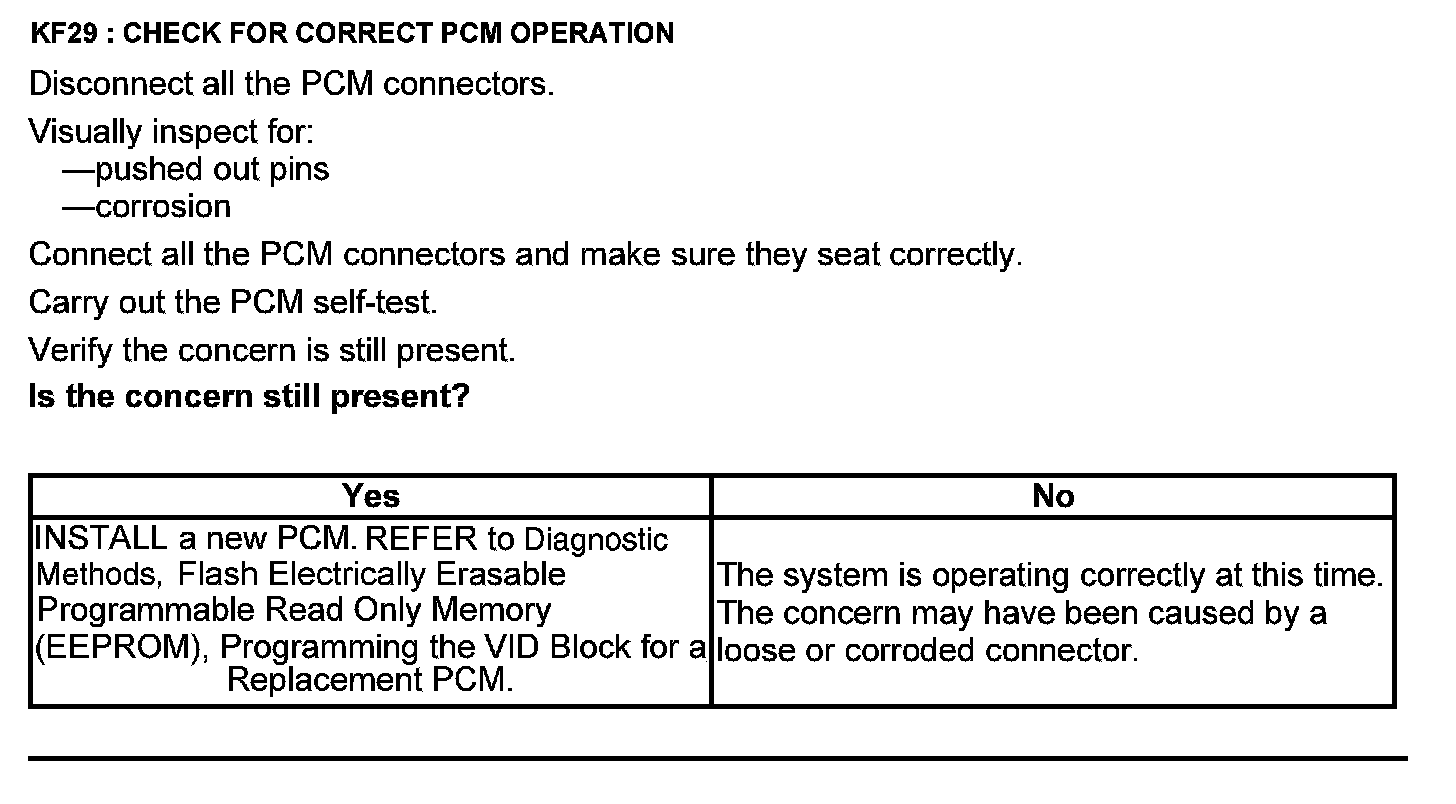

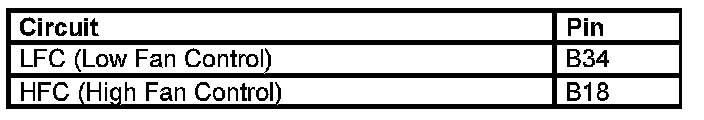

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
