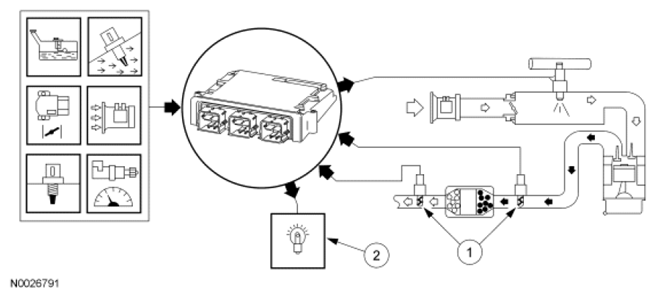

Catalyst Monitor Execution
The catalyst monitor duration is 12 seconds, once per drive cycle. If the catalyst monitor conditions are met, the catalyst monitor may run and complete after all of the upstream HO2S functional tests are complete and the EVAP system is functional, with no stored DTCs; however, the catalyst monitor may run and complete before the downstream HO2S decel fuel shut-off test is complete. In this case, the catalyst monitor I/M readiness flag may indicate complete before the O2S I/M readiness flag indicates complete. If the catalyst monitor does not complete during a particular driving cycle, the already accumulated switch/signal data is retained in the KAM and is used during the next driving cycle to allow the catalyst monitor a better opportunity to complete.
