Home >> Ford >> 2012 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> C228A HVAC Module, DATC
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

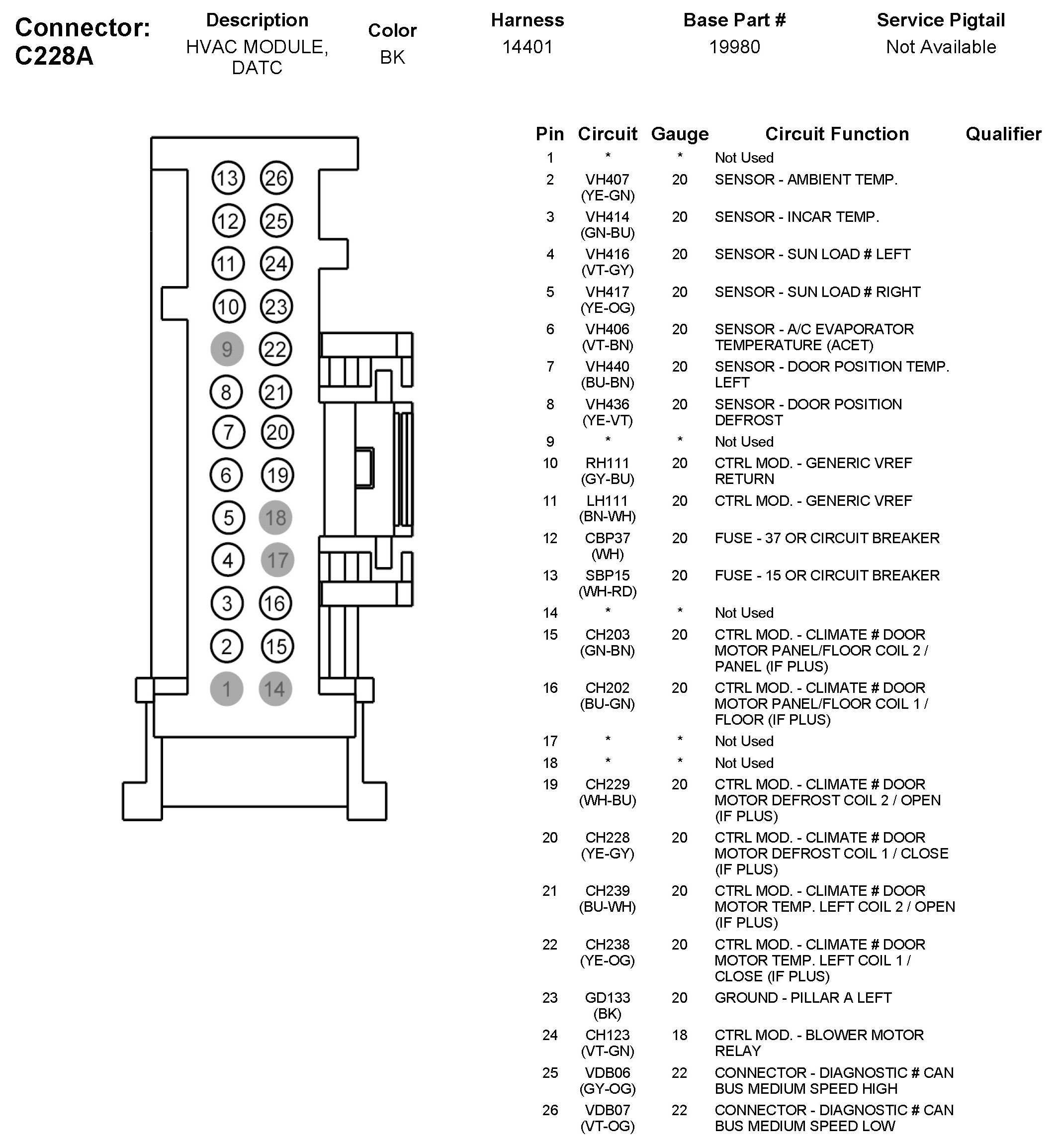

C228A HVAC Module, DATC
