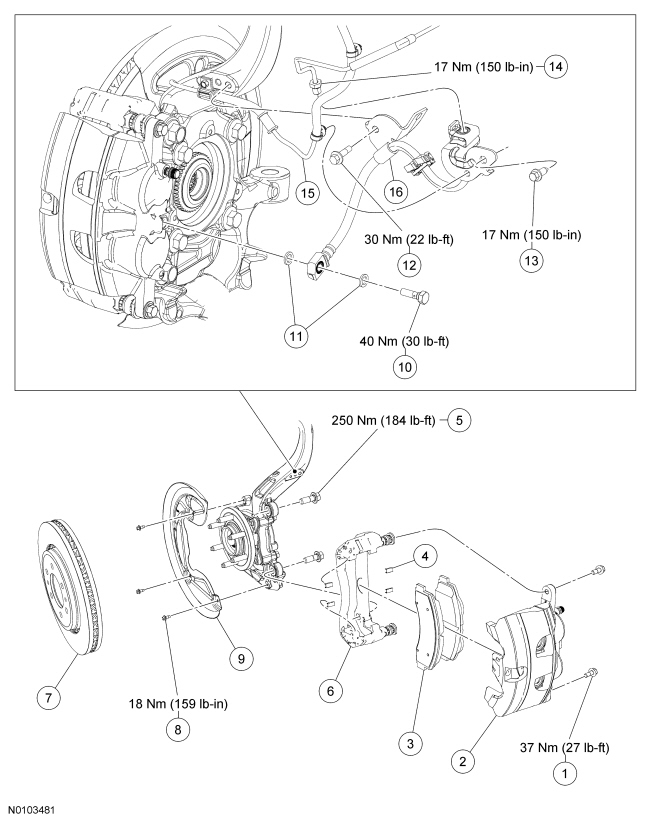

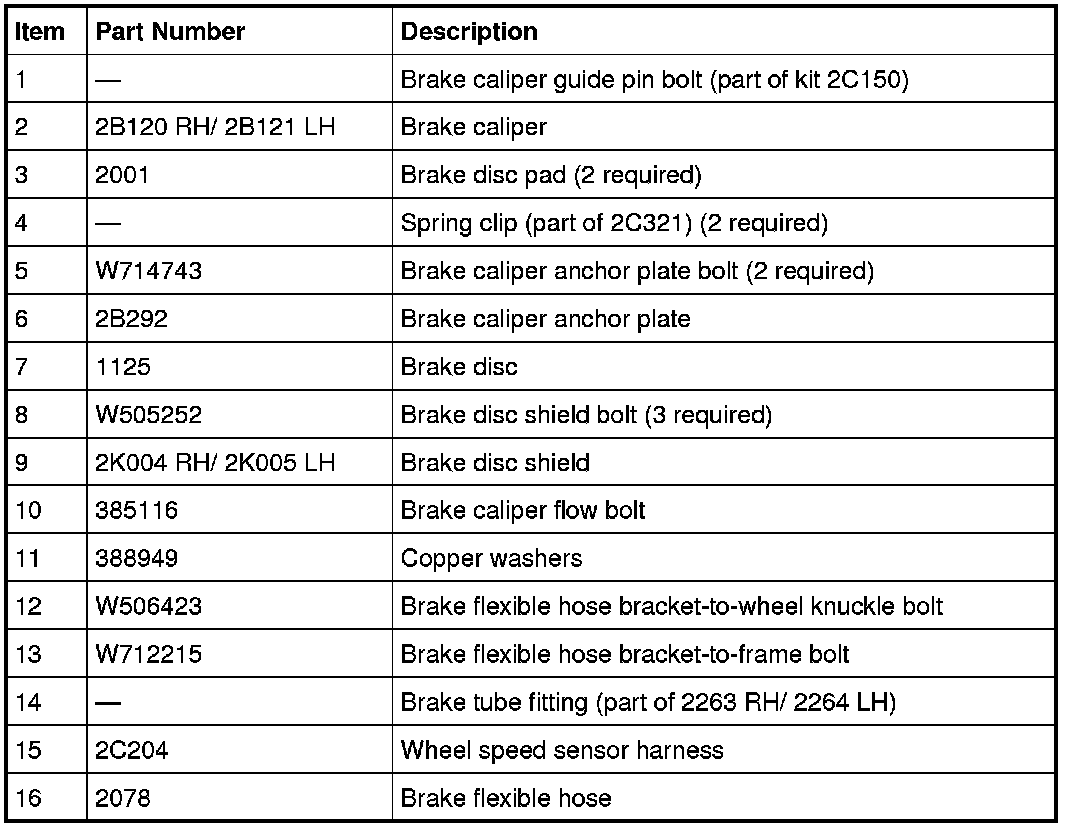

Disc Brake System - Exploded View
Disc Brake System
- Exploded View
NOTE:
Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.
