Home >> Ford >> 2012 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Diagrams
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

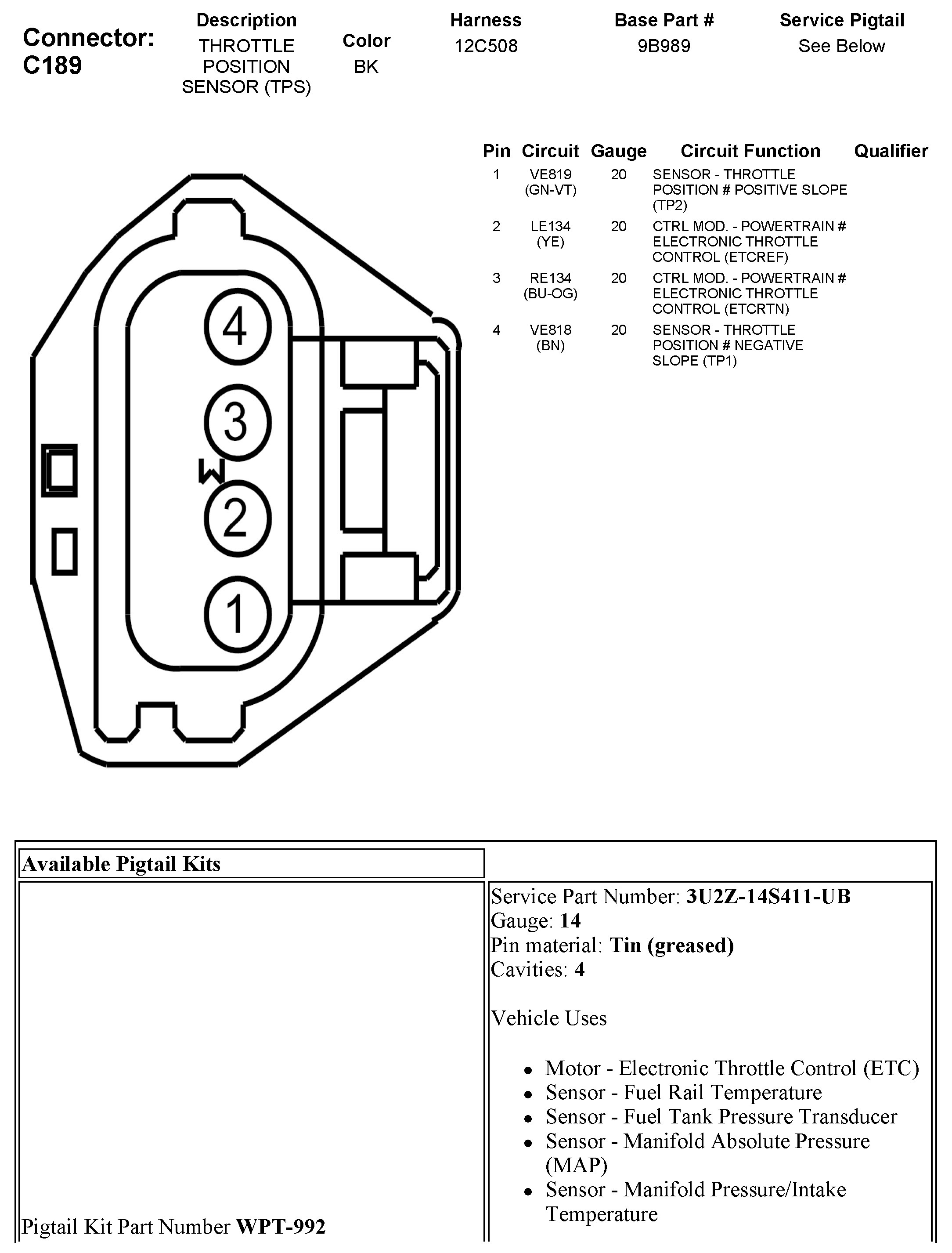

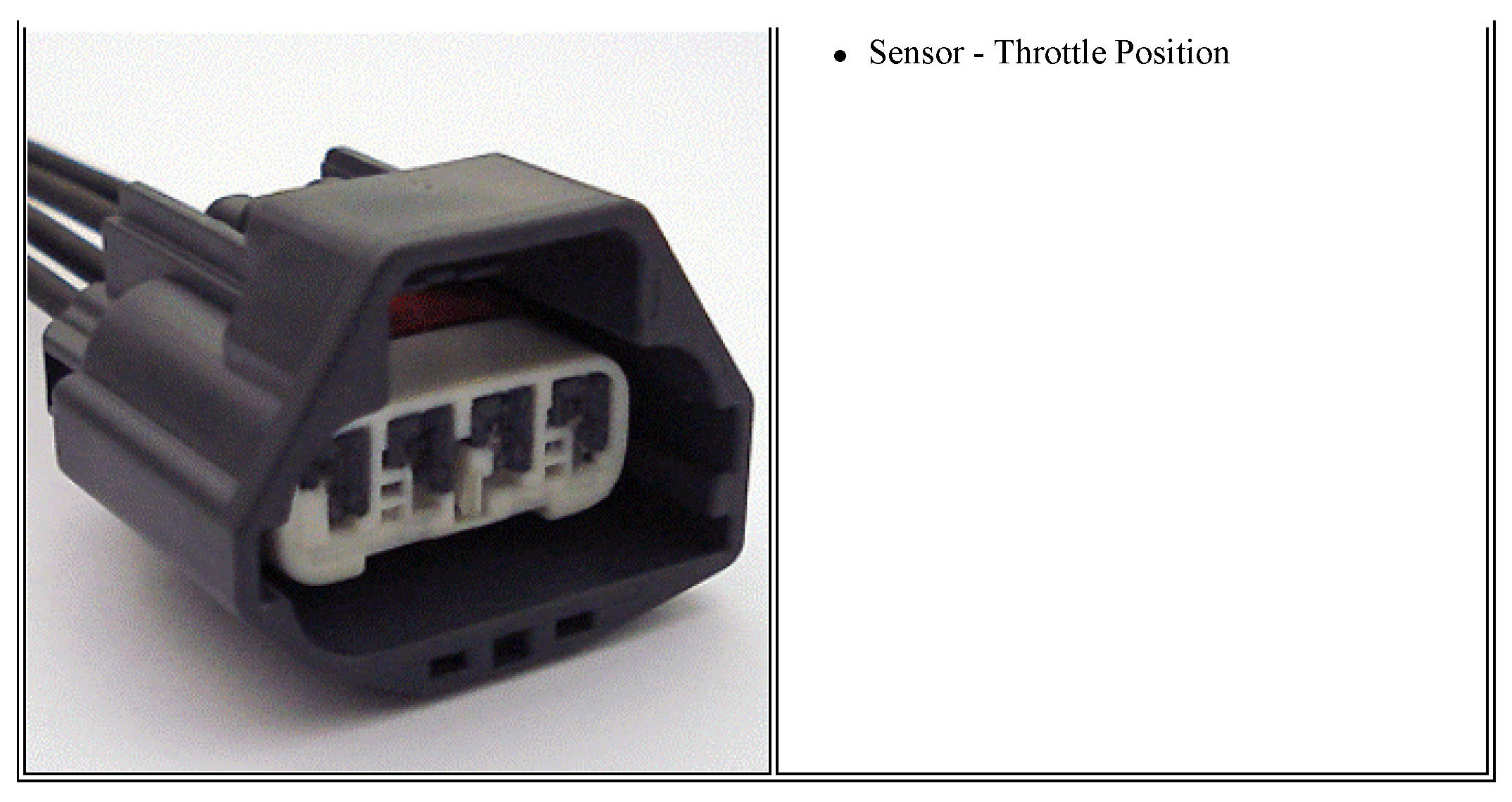

Throttle Position Sensor: Diagrams
