Home >> Ford >> 2012 >> Expedition 4WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case >> C2371B Transfer Case Control Module (TCCM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

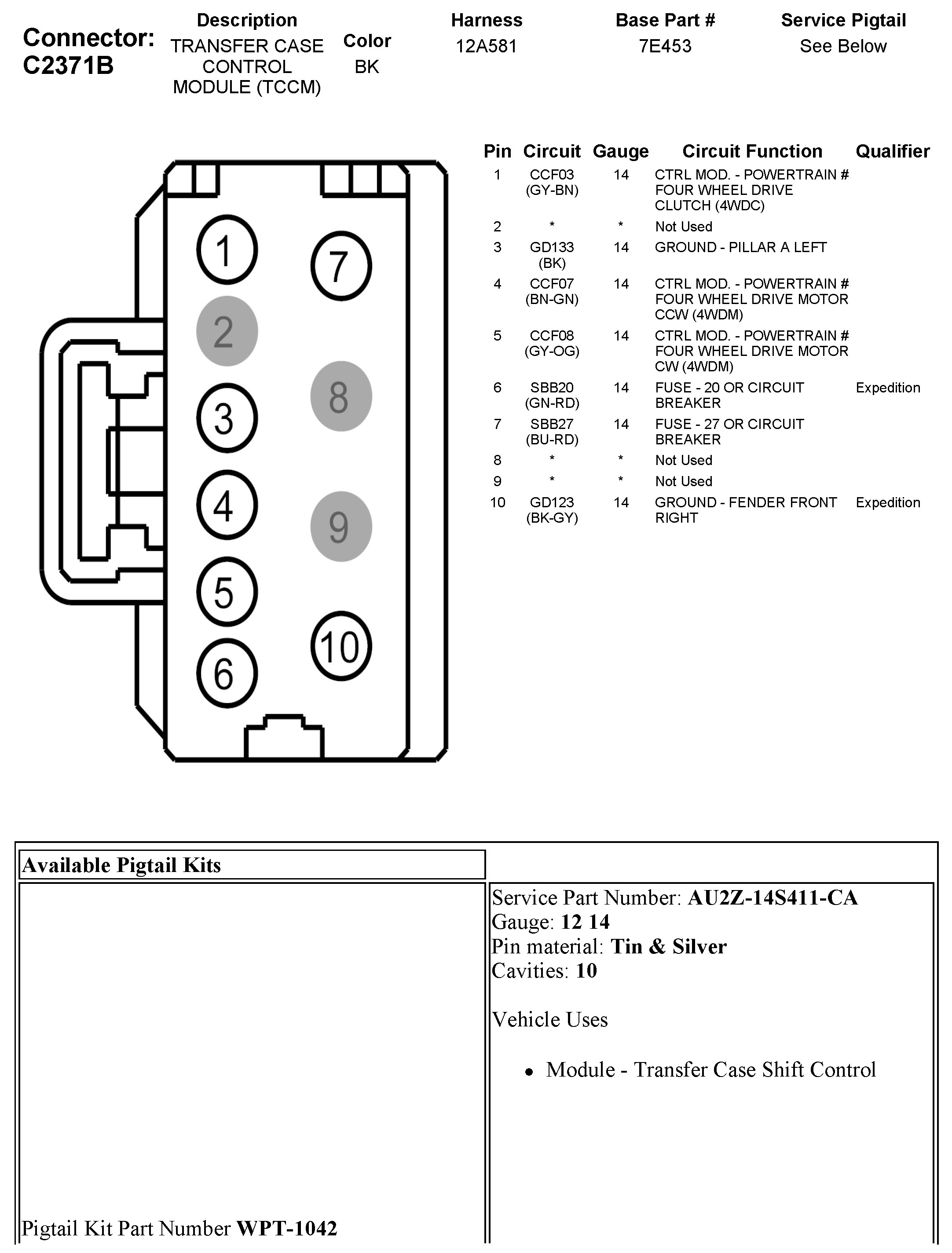

C2371B Transfer Case Control Module (TCCM)
