Alternating Current (AC) Power Point

Alternating Current (AC) Power Point

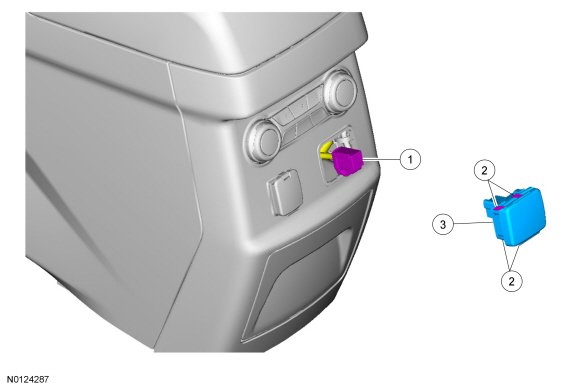

Exploded View










Removal

WARNING: Disconnect the battery before servicing the DC-AC (Direct Current-Alternating Current) inverter or AC (Alternating Current) powerpoint to prevent the risk of high voltage shock. Failure to follow this instruction may result in serious personal injury.

1. Disconnect the battery. REFER to Battery Disconnect .

2. Using a non-marring tool, gently pry the upper portion of the floor console rear trim panel to release the 4 retaining clips. REFER to Console - Front, Floor .

3. Disconnect the AC (Alternating Current) power point electrical connector.

4. Press the AC (Alternating Current) power point retainers inward and remove the AC (Alternating Current) power point.

Installation

1. To install, reverse the removal procedure.
