Exploded View

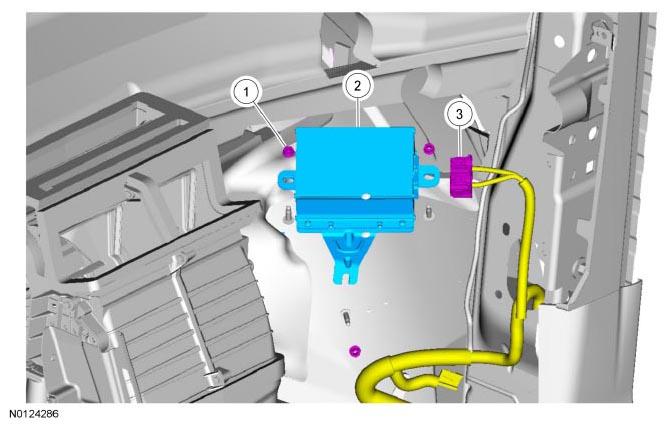

Fig 1: Identifying DC-AC Inverter, Nut And Electrical Connector Components Location

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description	Tool Number	Material Name	Notes
1	W705460	DC-AC inverter nut (3 required)	-	-	9 Nm (80 lb-in)
2	19G317	DC-AC inverter	-	-	-
3	-	DC-AC electrical connector (part of 14A005)	-	-	-
