Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

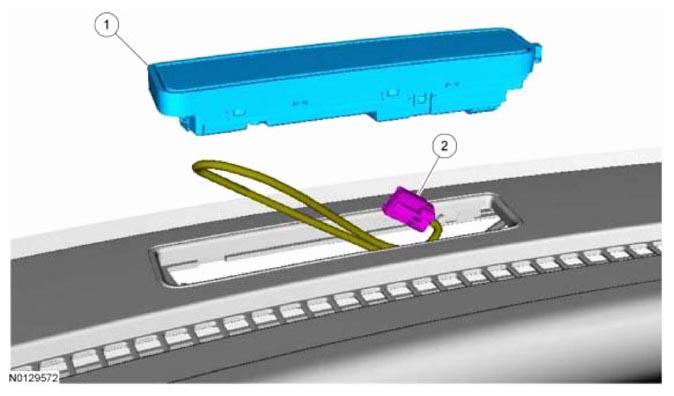

G08037777
Item Part Number Description
1 19G468 HUD  module
2 - HUD  electrical connector
