Exploded View

WARNING: This page is about a different variant/trim than selected.

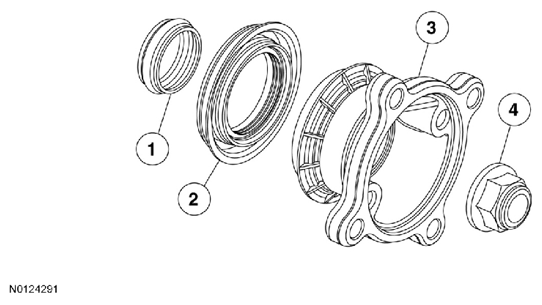

Fig 1: Identifying Collapsible Spacer, Output Shaft Seal, Output Pinion Flange And Nut
G07430707Courtesy of FORD MOTOR CO.
Item Service Part Number Description
1 7275  Collapsible spacer (part of 7275 kit)
2 7275  Output shaft seal (part of 7275 kit)
3 7275  Output pinion flange (part of 7275 kit)
4 7275  Pinion flange nut (part of 7275 kit)
