Home >> Ford >> 2012 >> Explorer FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C1381B Powertrain Control Module (PCM)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

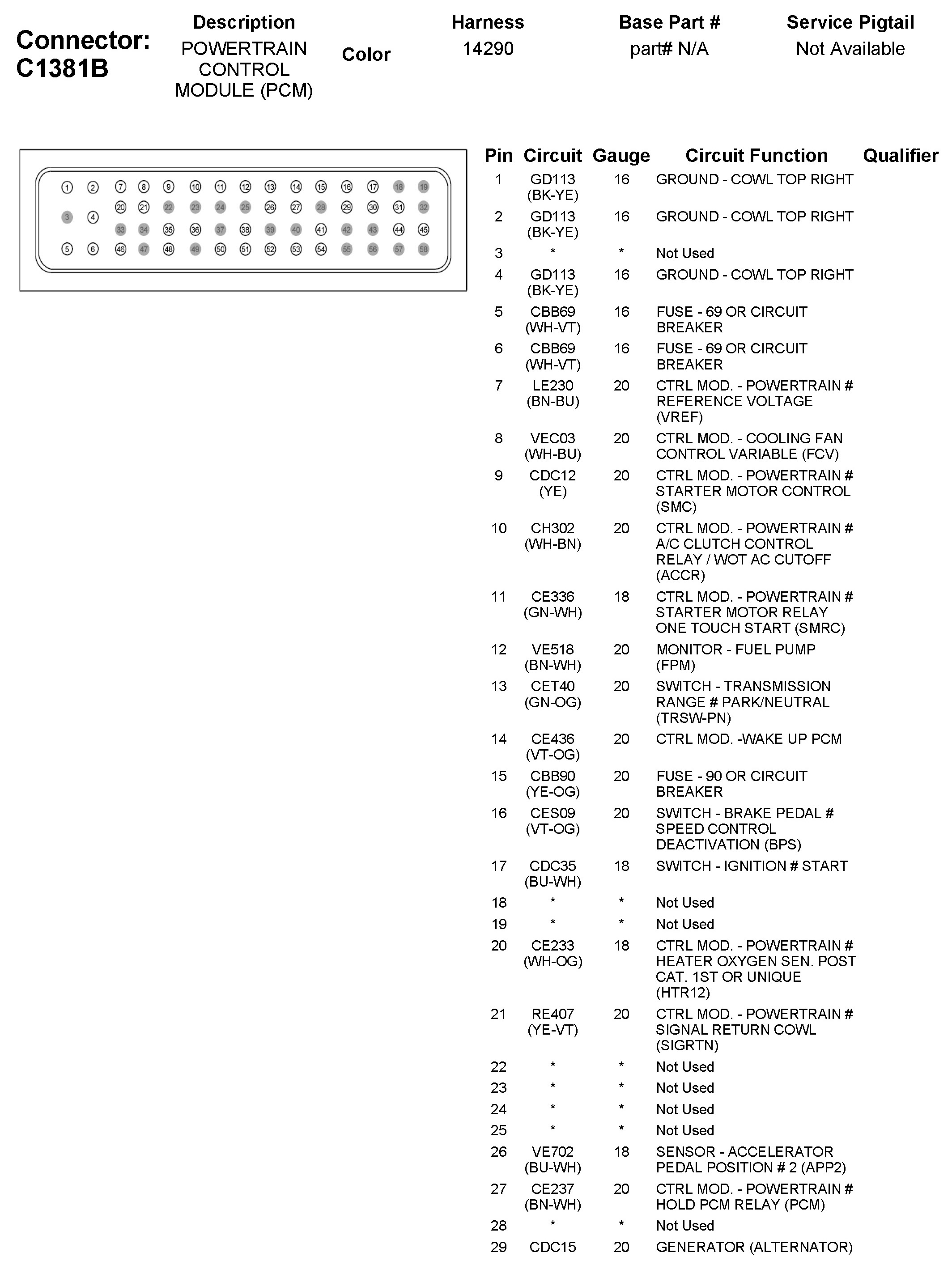

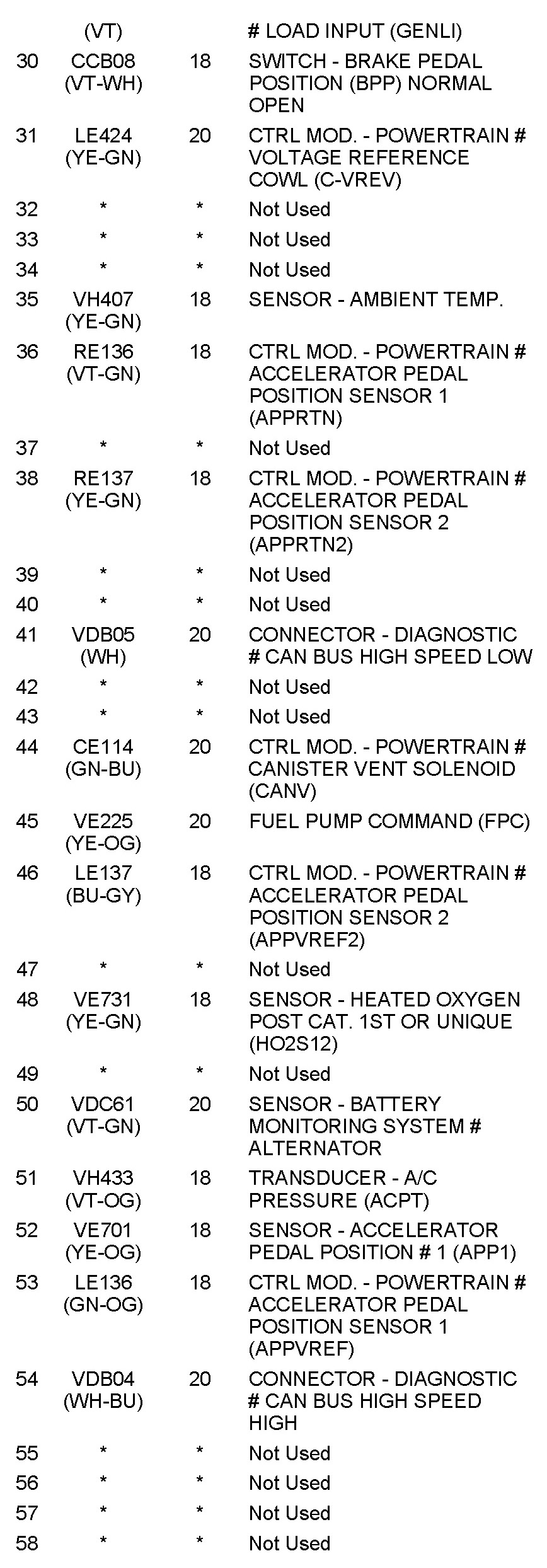

C1381B Powertrain Control Module (PCM)
