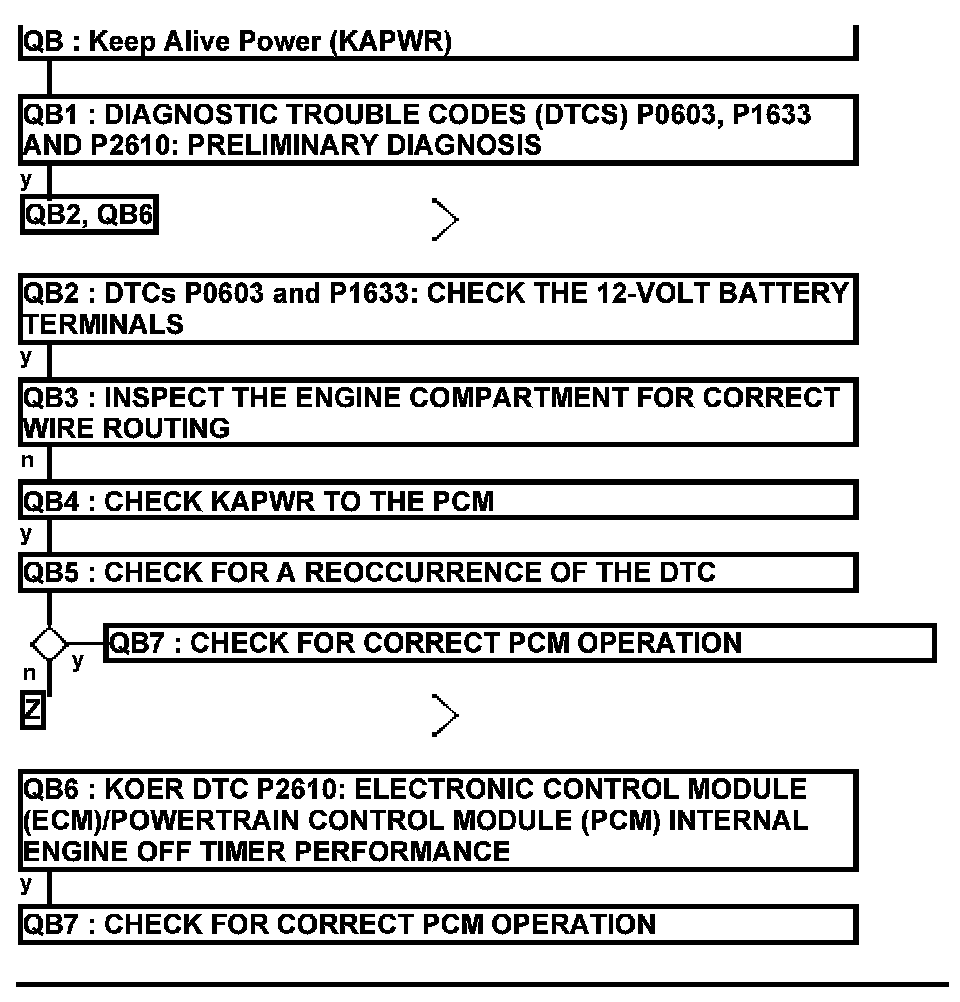

Test QB: Keep Alive Power (KAPWR)

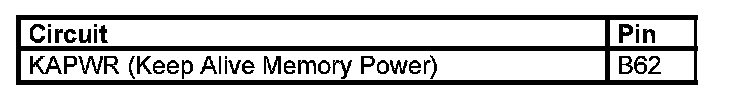

Keep Alive Power (KAPWR)

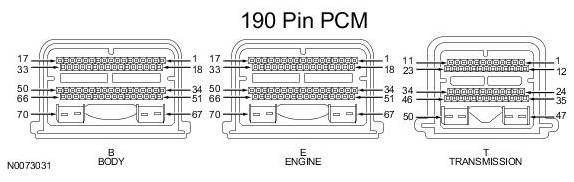

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
