System Specifications

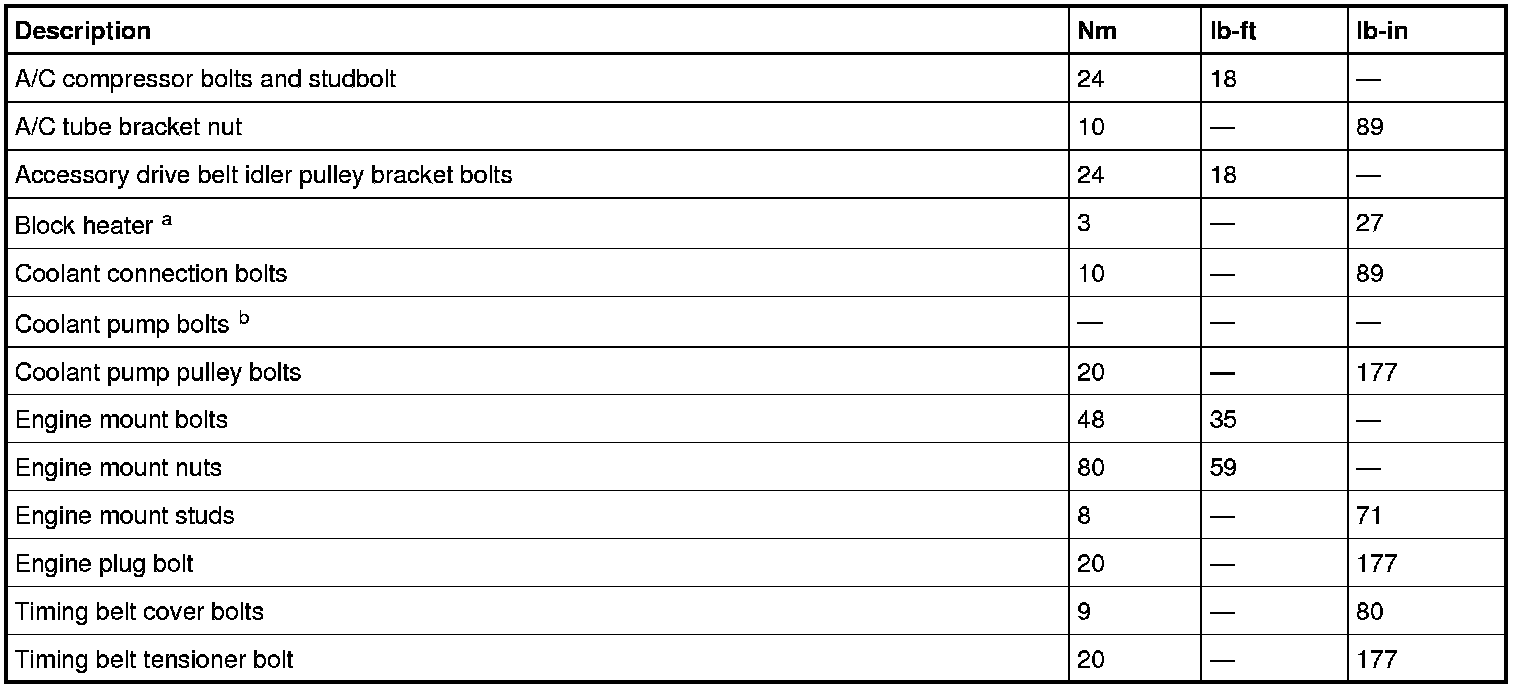

Torque Specifications





a V-lock design only. Do not install or reinstall a split ring design block heater. Refer to the procedure.

b Refer to the procedure in Cooling System.
