Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Starting System >> Keyless Start Transmitter >> Diagrams >> C4392B Remote Function Actuator (RFA) Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

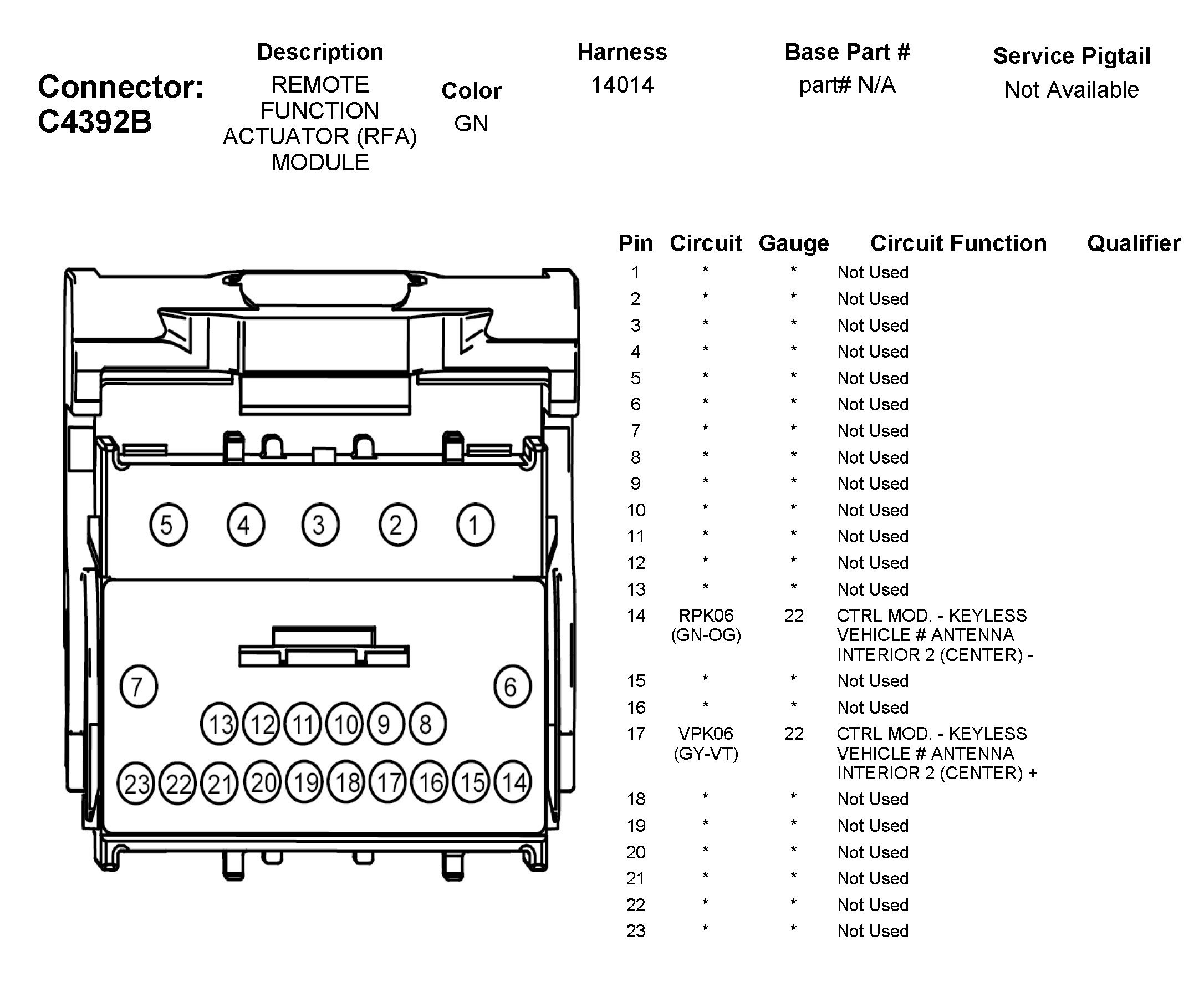

C4392B Remote Function Actuator (RFA) Module
