Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C329 Heated Seat Module, Passenger Side Front
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

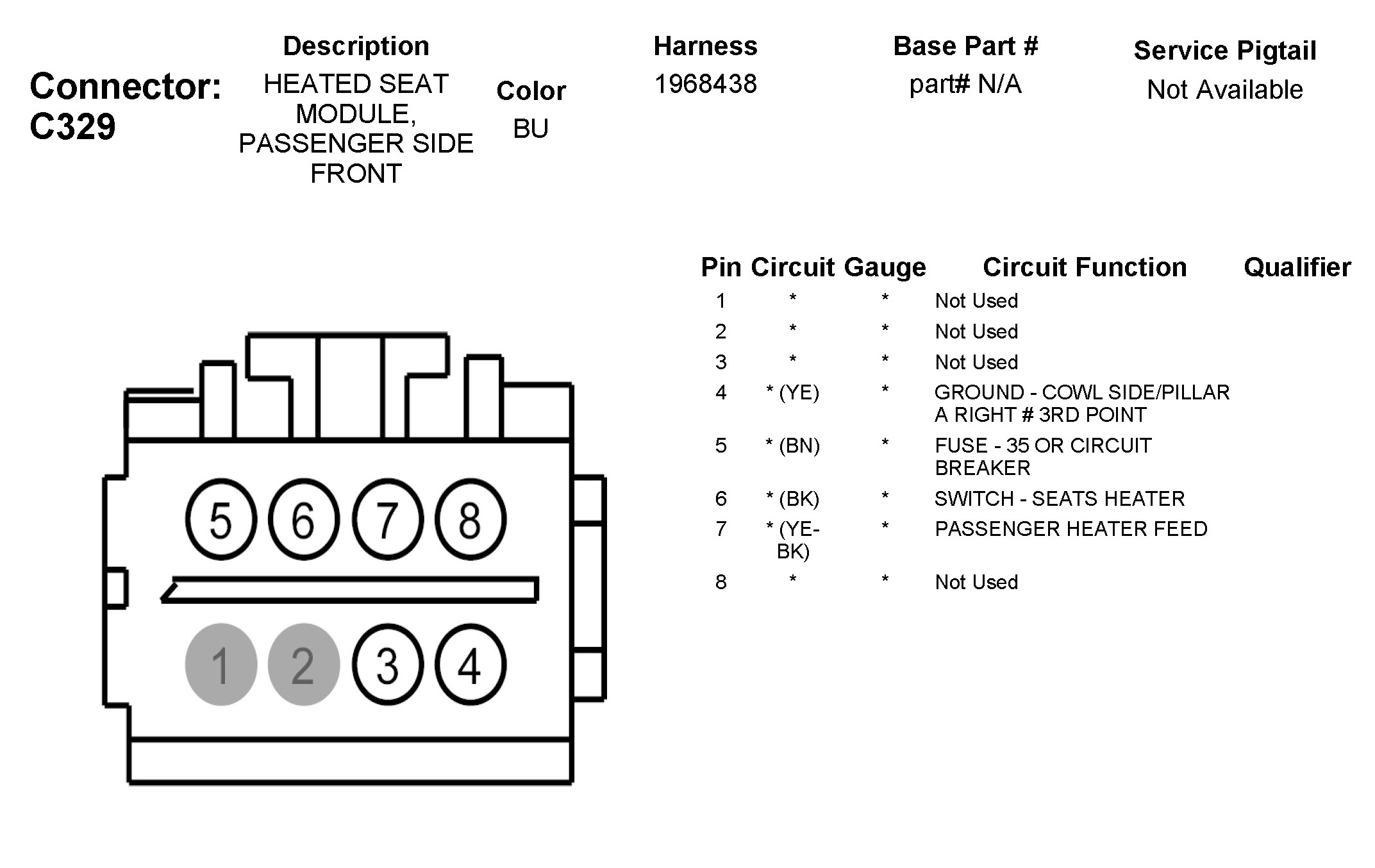

C329 Heated Seat Module, Passenger Side Front
