Dc To Dc Converter Control Module (DC/DC) Connector End View (C1457D)

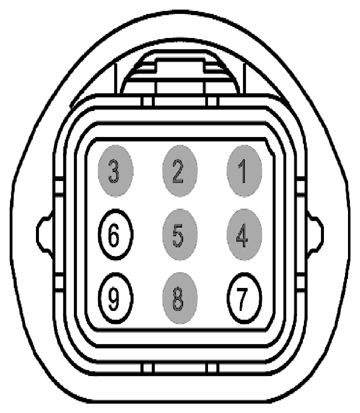

Fig 1: Identifying Dc To Dc Converter Control Module (DC/DC) Connector (C1457D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
7	CYD03 (BN-YE)	20	CTRL MOD. - DC/DC CONVERTER # DC ENABLE (DCE)
8	*	*	Not Used
9	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
