Symptom Chart: Vehicle-Speed Related Vibrations

Symptom Chart(s)

Symptom Chart: Vehicle-Speed Related Vibrations

Vehicle-Speed Related Vibrations

NOTE: Any assembly that is out of balance will only cause a first order vibration, it will not cause a higher order vibration.

When a vehicle-speed related vibration is present, both tire-speed related vibration and driveshaft-speed related vibration calculations should be carried out.

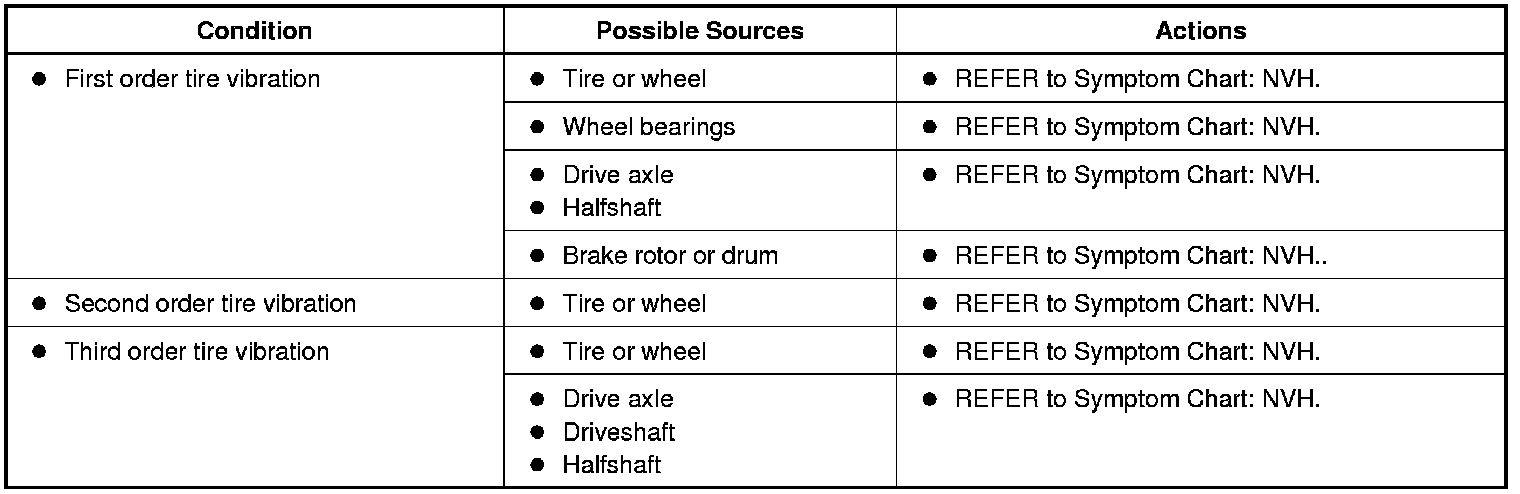

Symptom Chart - Tire-Speed Related Vibrations

Symptom Chart

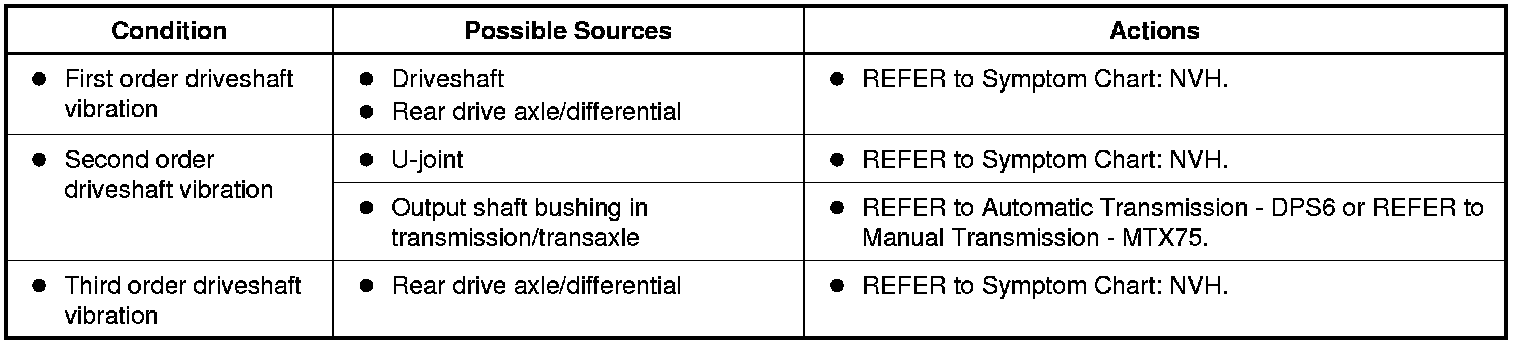

Symptom Chart - Driveshaft-Speed Related Vibrations

Symptom Chart
