Master window control switch - Fusion: Schematic

WARNING: This page is about a different variant/trim than selected.

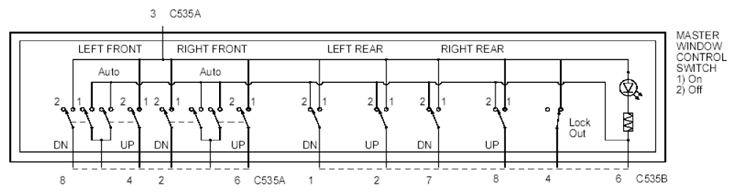

Fig 1: Master Window Control Switch Schematic - Fusion
G07935857Courtesy of FORD MOTOR CO.
