Connector End Views C3338 - Accessory Protocol Interface Module (1 Of 2)

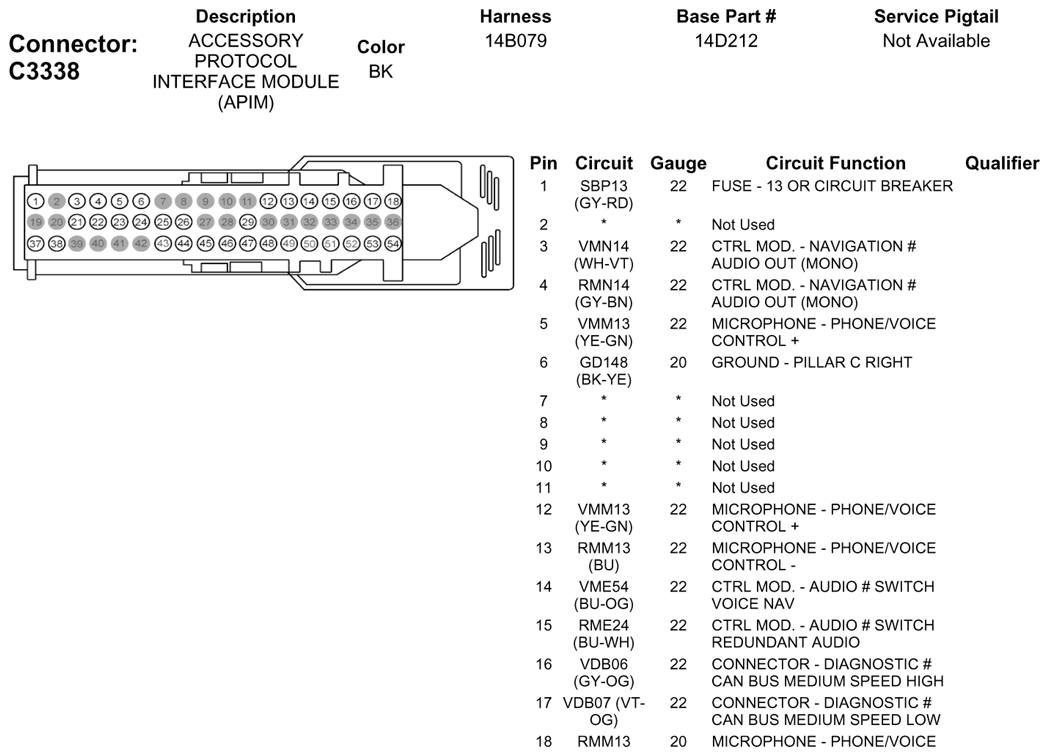

Fig 1: Connector End Views C3338 - Accessory Protocol Interface Module (1 Of 2)
G07923591Courtesy of FORD MOTOR CO.
