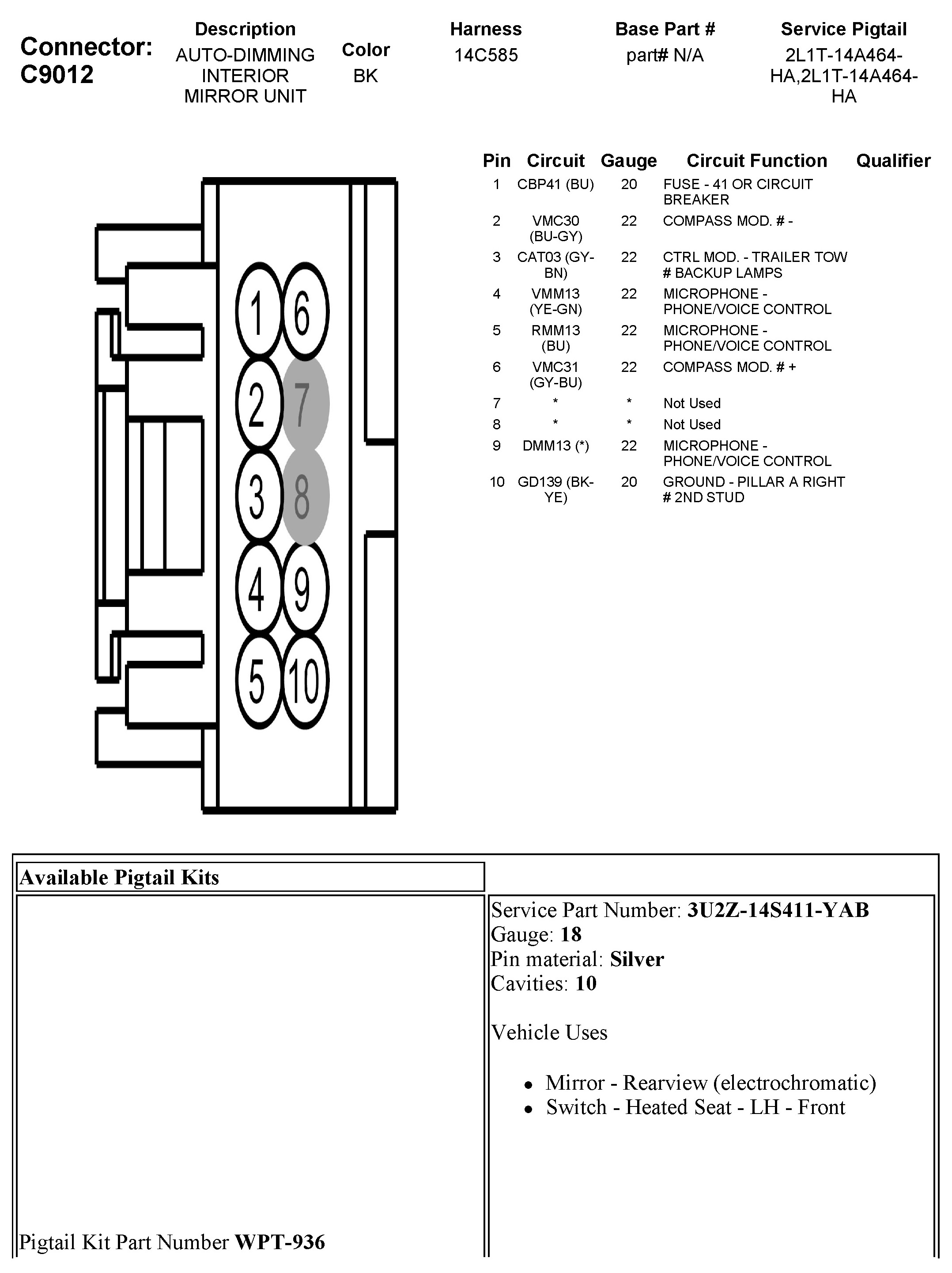

C9012 Auto-Dimming Interior Mirror Unit
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
C9012 Auto-Dimming Interior Mirror Unit
